Optical Bonding
JuTouch provides professional optical bonding services for industrial touch displays, improving sunlight readability, impact resistance, and long-term reliability in demanding environments.
Using advanced silicone bonding materials and automated manufacturing processes, we deliver bubble-free optical bonding solutions for industrial automation, medical devices, agricultural machinery, marine electronics, EV chargers, and outdoor kiosks.
Bonding Technology

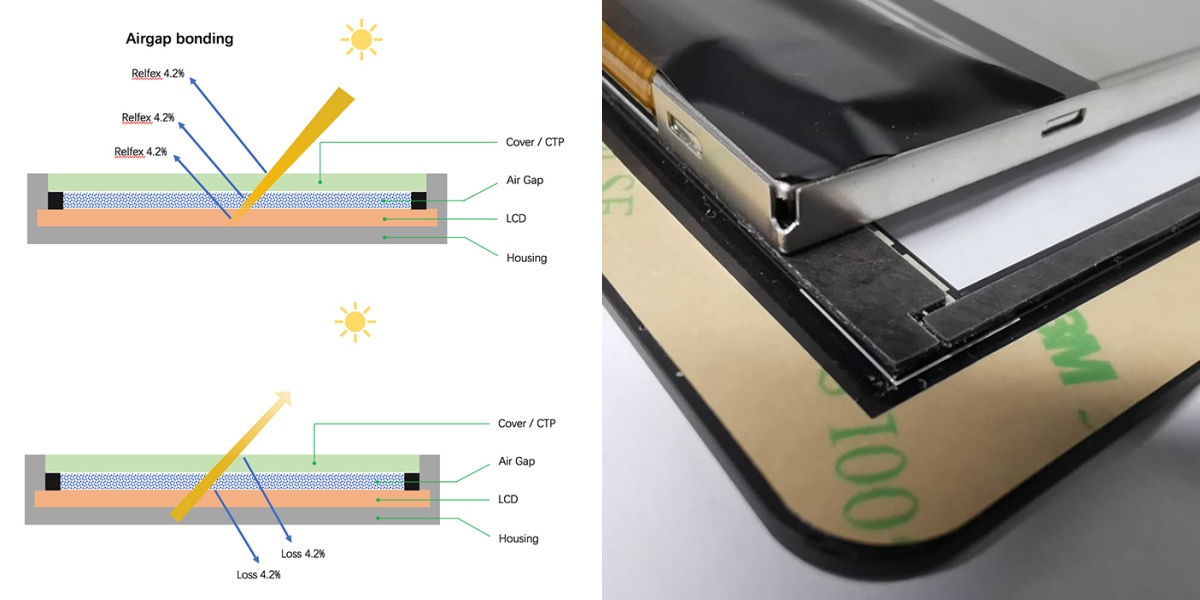

Tapes Bonding
Tape Bonding is a cost-effective assembly method that uses double-sided adhesive tape around the edges to attach the touch panel or cover glass to the LCD. Since an air gap remains between the layers, it is suitable for standard indoor applications where high optical performance is not a primary requirement.
Tapes Bonding Features
- Easy assembly & disassembly
- Low cost
- High reflection rate
- Lower sunlight readability & Lower impact resistance
- Easy to enter with dust, stains, etc
Bonding Technology

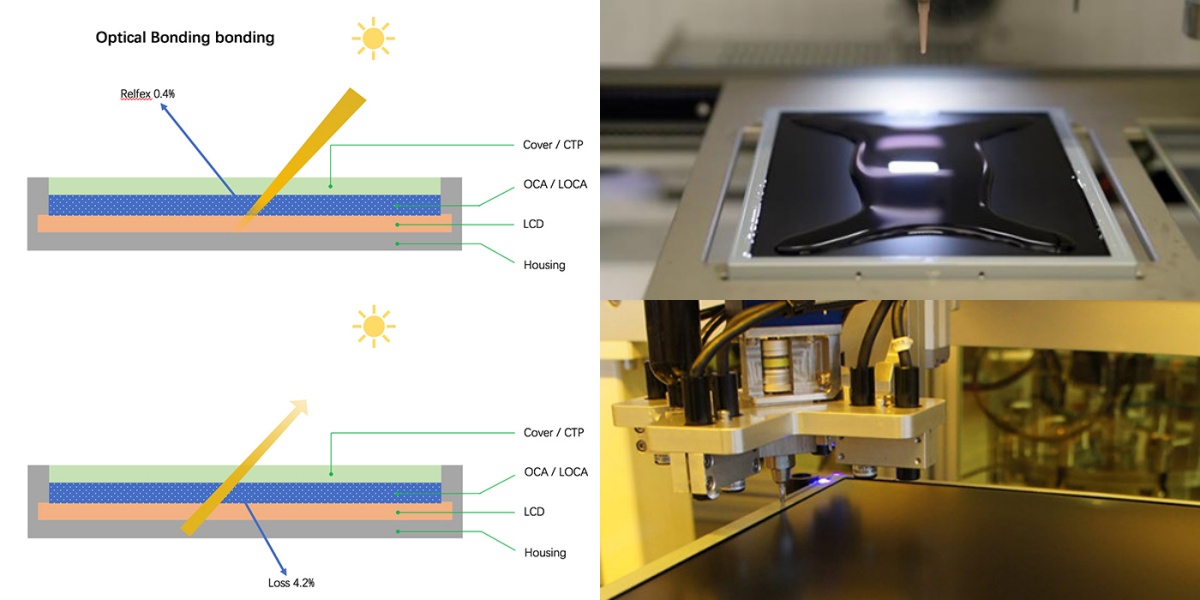

Optical Bonding
Optical Bonding is an advanced lamination process that uses optically clear adhesive (OCA or OCR) to fully bond the LCD and cover glass, eliminating the air gap between them. This significantly improves display clarity, reduces reflections, enhances touch performance, and increases resistance to moisture, shock, and vibration, making it ideal for industrial and outdoor applications.
Optical Bonding Advantages
- Increase the products stability
- Increase sunlight readability
- Resist stains, dirt, dust and moisture
- Not turn yellow or black after long time exposed under strong sunlight.
- Increase impact resistance
