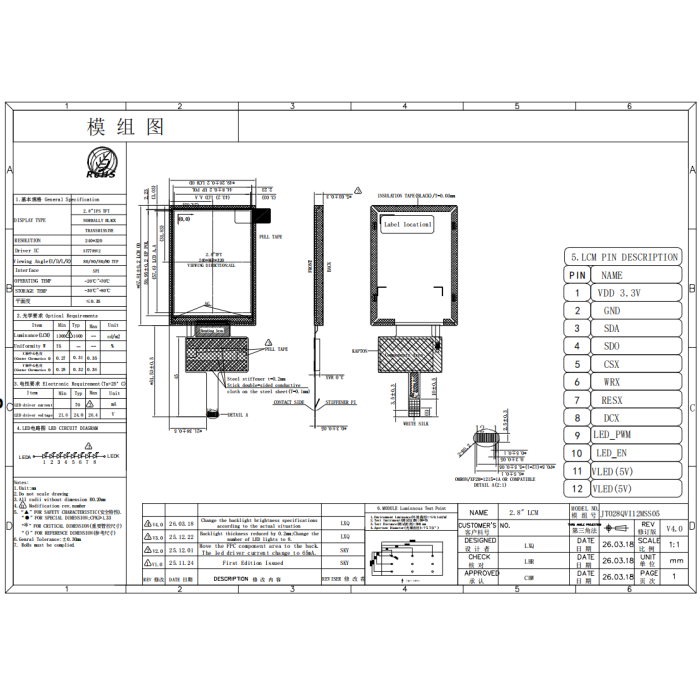

2.8" 240*320 IPS TFT LCD Module

The JT028QVI12MSS05 is a 2.8" IPS TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of an LCD panel, driver ICs, control circuit, and LED backlight. It features 240*320 resolution and displays 262K colors. The module operates with a SPI interface. It delivers a brightness of 1600 cd/m² with a viewing angle of 80/80/80/80 O’clock. The surface treatment is HC. The active area measures 43.2*69.2 mm with an outline dimension of 49.26*67.81*5.03 mm. It supports an operating temperature range of -20~70°C and storage temperature range of -30~80°C. The product complies with RoHS environmental standards.

High brightness: 1600 cd/m²

Display mode: IPS, Transmissive

Resolution: 240*320

Interface: SPI

Wide viewing angle: 80/80/80/80 O’clock

Color depth: 262K colors

Surface treatment: HC (Hard Coating / Anti-Glare)

Operating temperature: -20~70°C

Integrated LED driver

RoHS compliant
