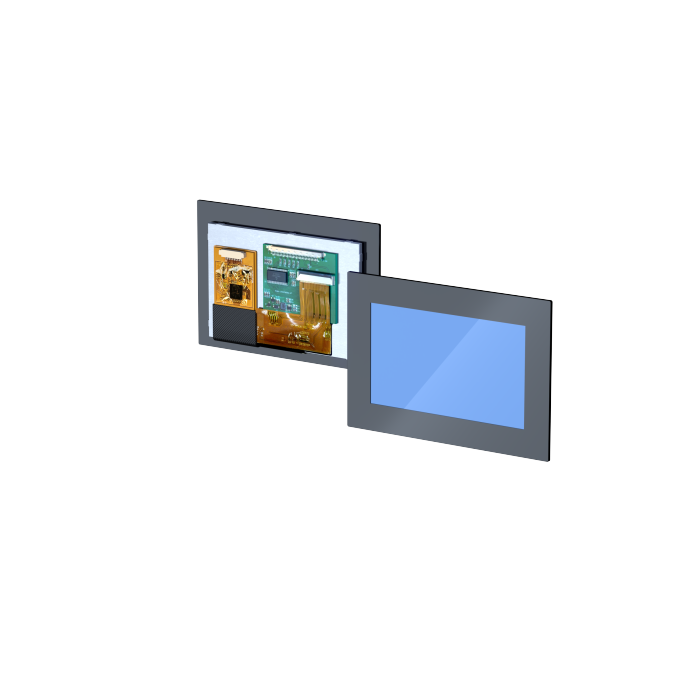

4.3" High-Brightness Industrial TFT LCD Display Module | Optical Bonded PCAP Touch Screen

Share
Categories	Touch Display Module
Brand	JuTouch
Model	JT043TM002-V1
Resolution	800×480 (RGB)
High brightness	680 cd/m²
LCD Interface	LVDS
Operating temperature	-30°C to +80°C
Storage temperature	-30°C to +80°C
Bonding Technique	OCA
CTP Interface	USB/I2C
CTP IC	EXC81W32
LED Driver Voltage	12V
Thickness	2

Contact Now

Detail Information

Rugged 4.3" High-Brightness Industrial TFT LCD. Features optical bonded capacitive touch, 6mm IK10 anti-vandal glass, and -30°C to +85°C working temp.

Download the full PDF specifications and datasheets to view detailed engineering parameters and rugged certifications:

DOWNLOAD SPECS

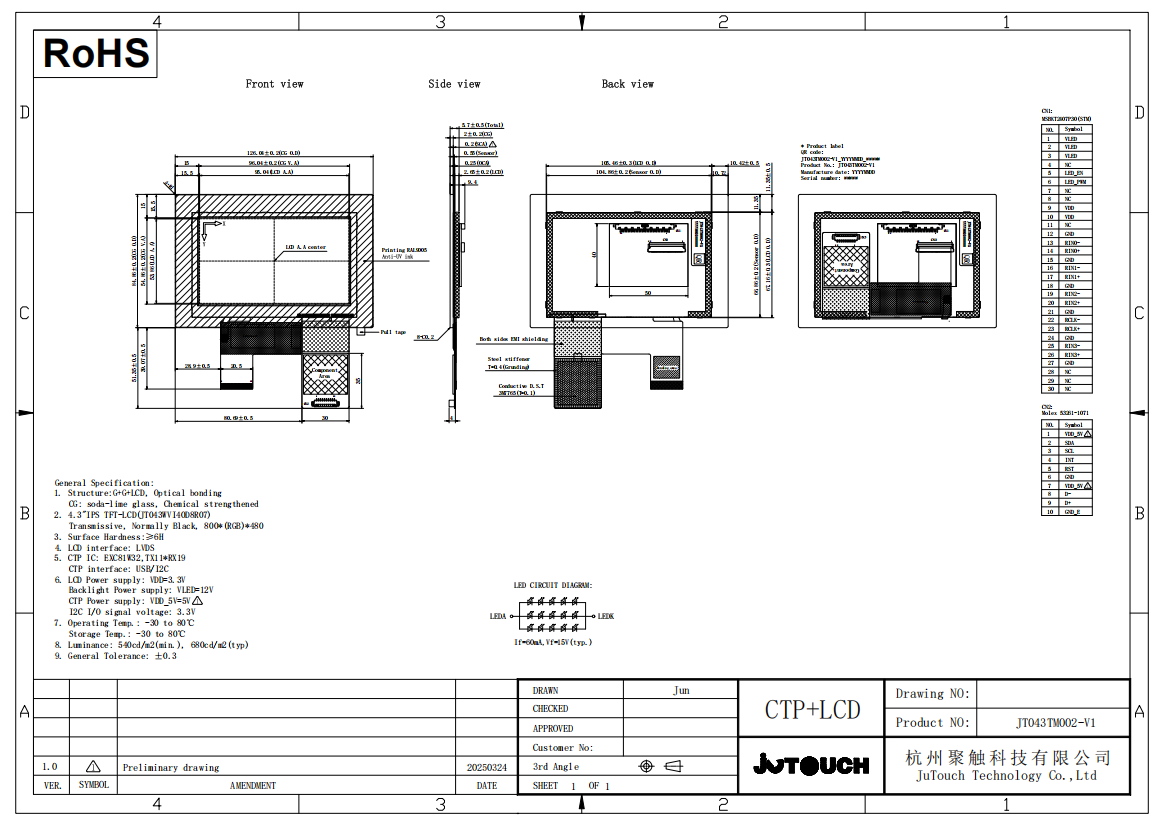

1. Drawing

2. Specifications

2.1 General Specifications

2.1.1 Definition

The specification is used for capacitive touch module with TFT LCD & Backlight Unit.

2.1.2 Features and General Description

General	Specification	Unit	Note
Module size	4.3	inch	diagonal
Structure	G+G+LCD, Optical Bonding
Resolution	800(RGB) × 480
Display Mode	Normally Black. Transmissive
Pixel Pitch	0.1188(W) × 0.1122(H)	mm
Pixel Arrangement	RGB stripe
Viewing direction	ALL	O'clock
Outline dimensions	126.04(W) × 84.86(H) × 5.7(D)	mm	W/O PCBA
Active area	95.04(W) × 53.86(H)	mm
LCD interface	LVDS
CTP Interface	USB / I2C
CTP IC	EXC81W32
Touch point	10
Surface hardness	6	H

2.2 Pin assignment

2.2.1 LCD Pin assignment

CN1 Module Side Connector : STM MSBKT2407P30 or Compatible

User Side Connector : JAE FI-X30H

Pin No.	Symbol	Description
1	VLED	Backlight power supply : 12V
2	VLED	Backlight power supply : 12V
3	VLED	Backlight power supply : 12V
4	NC	Not connection
5	LED_EN	Backlight on/off control
6	LED_PWM	Backlight dimming control
7	NC	Not connection
8	NC	Not connection
9	VDD	LCD power Supply : 3.3V
10	VDD	LCD power Supply : 3.3V
11	NC	Not connection
12	GND	Power Ground
13	RXIN0-	Negative LVDS differential data input (0)
14	RXIN0+	Positive LVDS differential data input (0)
15	GND	Power Ground
16	RXIN1-	Negative LVDS differential data input (1)
17	RXIN1+	Positive LVDS differential data input (1)
18	GND	Power Ground
19	RXIN2-	Negative LVDS differential data input (2)
20	RXIN2+	Positive LVDS differential data input (2)
21	GND	Power Ground
22	RXCLKIN-	Negative LVDS differential clock input
23	RXCLKIN+	Positive LVDS differential clock input
24	GND	Power Ground
25	RXIN3-	Negative LVDS differential data input (3)
26	RXIN3+	Positive LVDS differential data input (3)
27	GND	Power Ground
28	NC	Not connection
29	NC	Not connection
30	NC	Not connection

2.2.2 CTP Pin assignment

CN2 Module Side Connector : Molex 53216-1071 or Compatible

User Side Connector : Molex 51021-1000

Pin No.	Symbol	Description
1	VDD_5V	Power Supply : 5V
2	SDA	I2C data signal
3	SCL	I2C clock signal
4	INT	I2C interrupt signal
5	RST	Reset pin, active low
6	GND	Power Ground
7	VDD_5V	Power Supply : 5V
8	D-	USB data port minus
9	D+	USB data port plus
10	GND_E	Power Ground

2.3 Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Operating Temperature	T_OP	-30	+80	°C
Storage Temperature	T_ST	-40	+85	°C

2.4 Optical Characteristics

Item		Symbol	Condition	Min.	Typ.	Max.	Unit	Note
Viewing Angle	Horizontal	θ_X+	CR≥10	80	-	-	Deg.	(1), (5)
	Horizontal	θ_X-		80	-	-	Deg.
	Vertical	θ_Y+		80	-	-	Deg.
	Vertical	θ_Y-		80	-	-	Deg.
Luminance (W/ CTP)		Lv	θ_X=0°, θ_Y=0°	750	850	-	nit	(4), (5)
Uniformity	9 points	ΔY9		70	-	-	%	(5), (6)
Contrast ratio		CR		900	1000	-	-	(2), (5)
Color Chromaticity (CIE 1931)	White	W_x	θ_X=0°, θ_Y=0° R=G=B=255 Gray scale	Typ-0.05	0.30	Typ+0.05	-	(1), (5)
	White	W_y			0.33		-
	Red	R_x			-		-
	Red	R_y			-		-
	Green	G_x			-		-
	Green	G_y			-		-
	Blue	B_x			-		-
	Blue	B_y			-		-
Response Time	T_R+T_F			-	25	35	ms	(3)
