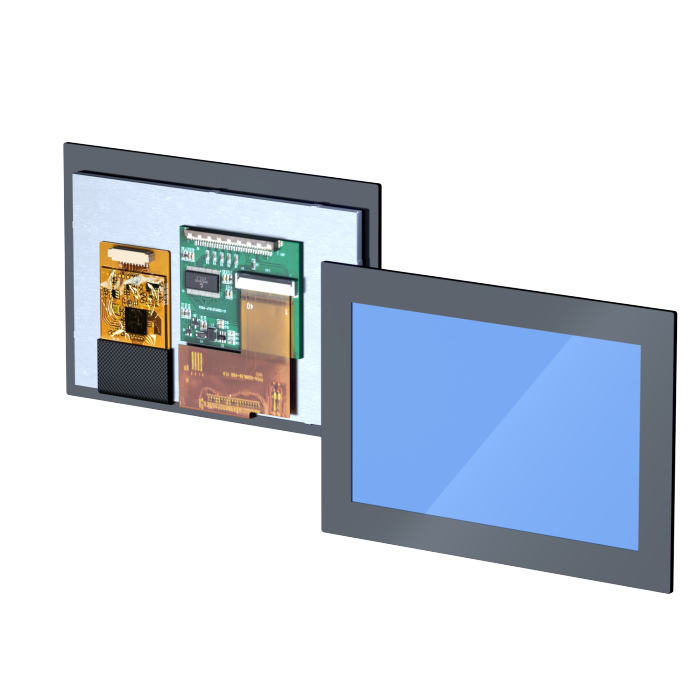

5.0" High-Brightness Industrial TFT LCD Display Module with Optical Bonded PCAP Touch Screen
Detail Information
The JT050TM015-V1 is a 5.0-inch Optical Bonding Capacitive Touch Display Module featuring an 800 × 480 TFT LCD, 10-point PCAP touch and integrated LCD + touch design for reliable industrial applications.
5.0" High-Brightness Industrial TFT LCD is equipped with LVDS display, USB/I²C touch interface, 6H surface hardness and a wide operating temperature of -30°C to +80°C, it delivers stable performance in demanding environments.
Ideal for industrial automation, medical equipment, HMI, self-service kiosks and embedded systems, the module also supports comprehensive OEM/ODM customization, including high brightness, cover glass, interfaces and optical bonding.
Download the full PDF specifications and datasheets to view detailed engineering parameters and rugged certifications:

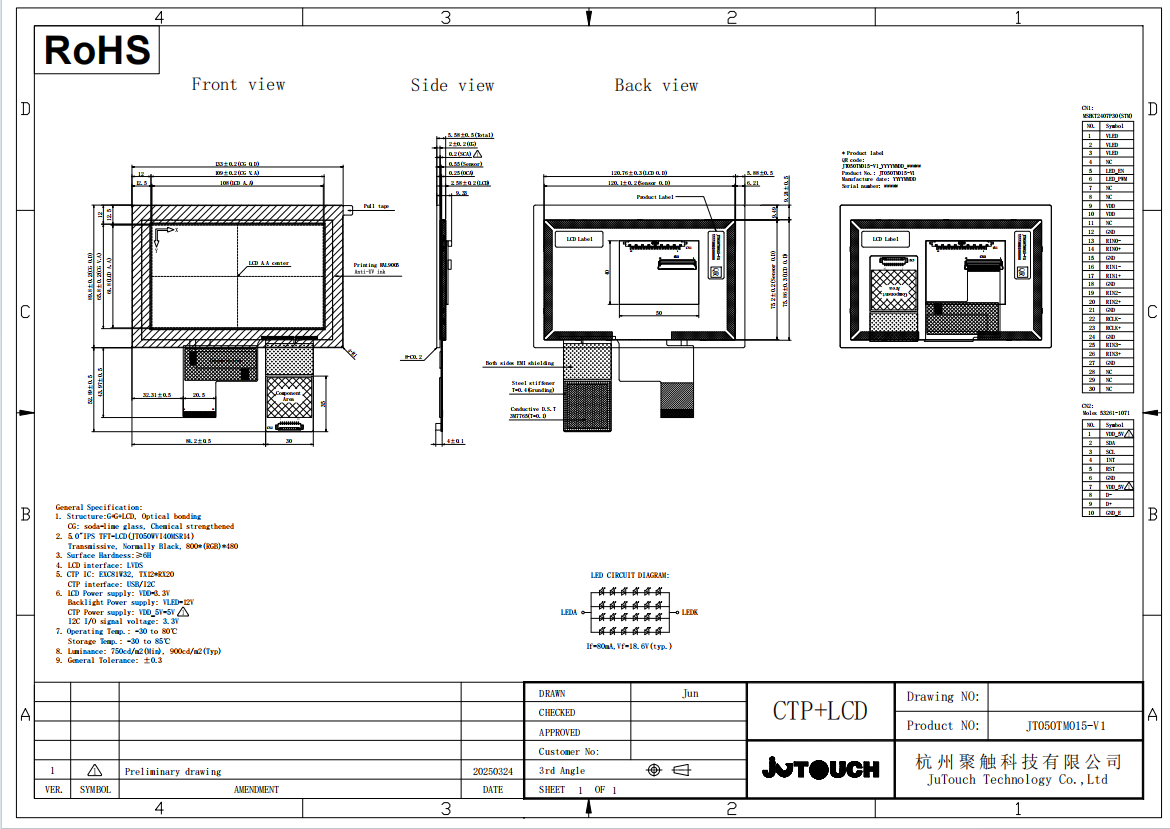

1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.

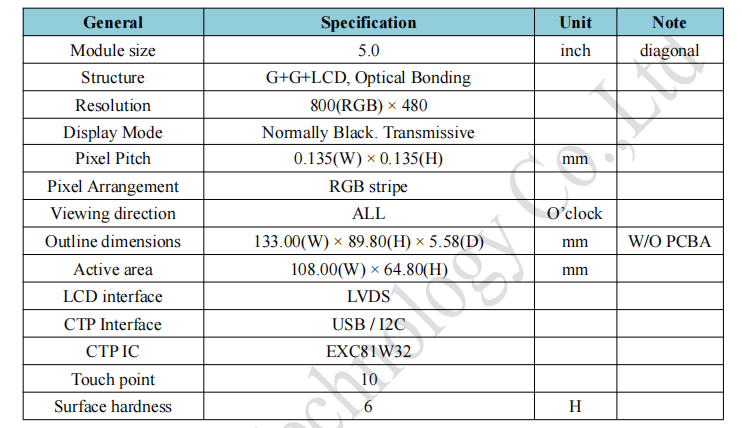

2.1.2 Features and General Description
2.2 Pin assignment
2.2.1 LCD Pin assignment
CN1 Module Side Connector : STM MSBKT2407P30 or Compatible
User Side Connector : JAE FI-X30H
Pin No. | Symbol | Description |
1 | VLED | Backlight power supply : 12V |
2 | VLED | Backlight power supply : 12V |
3 | VLED | Backlight power supply : 12V |
4 | NC | Not connection |
5 | LED_EN | Backlight on/off control |
6 | LED_PWM | Backlight dimming control |
7 | NC | Not connection |
8 | NC | Not connection |
9 | VDD | LCD power Supply : 3.3V |
10 | VDD | LCD power Supply : 3.3V |
11 | NC | Not connection |
12 | GND | Power Ground |
13 | RXIN0- | Negative LVDS differential data input (0) |
14 | RXIN0+ | Positive LVDS differential data input (0) |
15 | GND | Power Ground |
16 | RXIN1- | Negative LVDS differential data input (1) |
17 | RXIN1+ | Positive LVDS differential data input (1) |
18 | GND | Power Ground |
19 | RXIN2- | Negative LVDS differential data input (2) |
20 | RXIN2+ | Positive LVDS differential data input (2) |
21 | GND | Power Ground |
22 | RXCLKIN- | Negative LVDS differential clock input |
23 | RXCLKIN+ | Positive LVDS differential clock input |
24 | GND | Power Ground |
25 | RXIN3- | Negative LVDS differential data input (3) |
26 | RXIN3+ | Positive LVDS differential data input (3) |
27 | GND | Power Ground |
28 | NC | Not connection |
29 | NC | Not connection |
30 | NC | Not connection |
2.2.2 CTP Pin assignment
CN2 Module Side Connector : Molex 53216-1071 or Compatible
User Side Connector : Molex 51021-1000
Pin No. | Symbol | Description |
1 | VDD_5V | Power Supply : 5V |
2 | SDA | I2C data signal |
3 | SCL | I2C clock signal |
4 | INT | I2C interrupt signal |
5 | RST | Reset pin, active low |
6 | GND | Power Ground |
7 | VDD_5V | Power Supply : 5V |
8 | D- | USB data port minus |
9 | D+ | USB data port plus |
10 | GND_E | Power Ground |
2.3 Absolute Maximum Ratings
| Item | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Operating Temperature | TOP | -30 | +80 | °C |
| Storage Temperature | TST | -30 | +85 | °C |

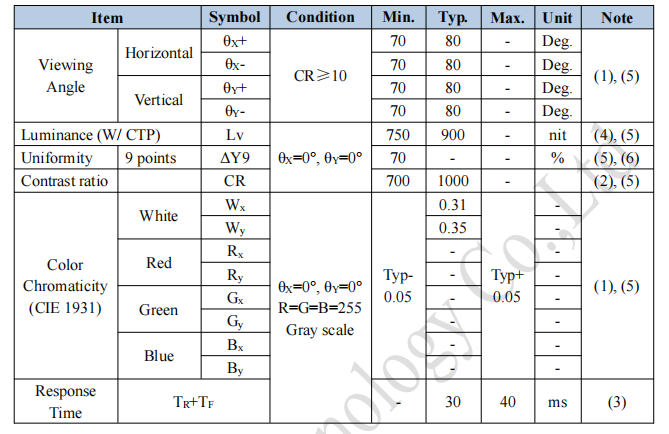

2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
