新 · 4.0 Inch IPS TFT LCD Module, 480×800, 800 Nits, MIPI

Share
Categories	Sunlight Readable TFT LCD Display
Brand	JuTouch
Model	JT040WVI25M8M02
Size	4.0"
Resolution	480*800
High brightness	800 cd/m²

Contact Now

Detail Information

4.0-Inch IPS TFT LCD Module with MIPI Interface

JT040WVI25M8M02 is a 4.0-inch IPS TFT LCD module with 480 × 800 resolution, 800 cd/m² brightness and a MIPI interface. Its original product specification lists 16.7 million colors, an anti-glare surface and an integrated LED driver.

The module consists of an LCD panel, driver ICs, control circuitry and LED backlight. The following specifications describe the LCD module; touch functionality is not specified in the current product information.

Key Display Specifications

480 × 800 Resolution

A 4.0-inch display with an active area of 51.84 × 86.4 mm.

800 cd/m² Brightness

The listed brightness is 800 cd/m². The surface treatment is anti-glare.

MIPI Interface

The original specification identifies MIPI as the display interface.

Technical Specifications: JT040WVI25M8M02

Model	JT040WVI25M8M02
Display size	4.0 inches
Resolution	480 × 800
Display mode	IPS, transmissive
Brightness	800 cd/m²
Interface	MIPI
Colors	16.7 million (8-bit)
Viewing direction	ALL O’clock, as stated in the original specification
Surface treatment	Anti-Glare
Active area	51.84 × 86.4 mm
Outline dimensions	56.74 × 97 × 2 mm
Operating temperature	-20°C to 70°C
Storage temperature	-30°C to 80°C
Backlight	LED backlight with integrated LED driver

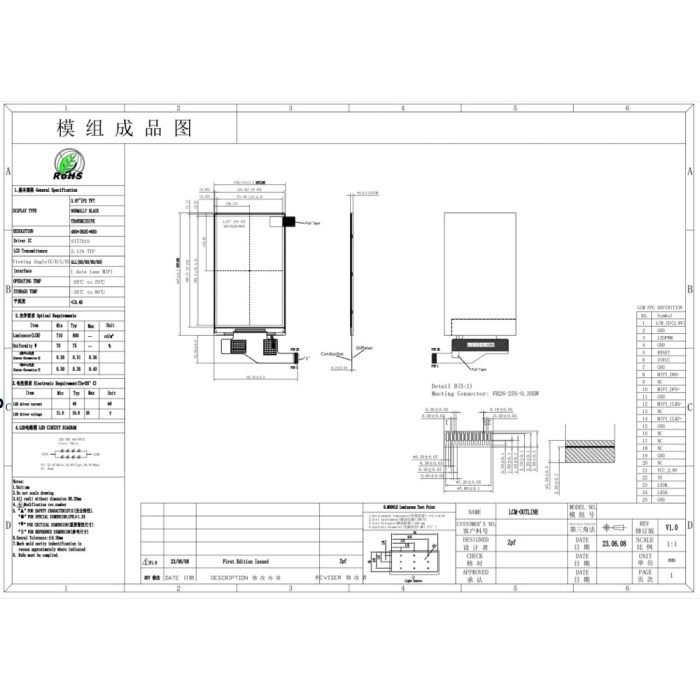

Original Product Image and Mechanical Reference

Original JT040WVI25M8M02 4.0-inch IPS TFT LCD module product reference image

View the original full-size image

The original description lists an outline of 56.74 × 97 × 2 mm and an active area of 51.84 × 86.4 mm. Use the supplier-approved mechanical drawing for the exact revision when reviewing enclosure fit.

OEM Selection Questions

What is the display interface?

The listed interface is MIPI. For a host compatibility review, request the complete interface specification, pin assignment and display timing for model JT040WVI25M8M02.

Is touch functionality included?

The current specification describes an IPS TFT LCD module and does not specify a touch sensor or touch controller. Confirm any touch requirement separately before ordering.

What temperature ranges are listed?

The operating range is -20°C to 70°C. The storage range is -30°C to 80°C.

What should an OEM include in an inquiry?

Provide the model number, host interface information, enclosure drawing, required quantity and installation conditions. Ask for the current datasheet and mechanical drawing before sample evaluation.
