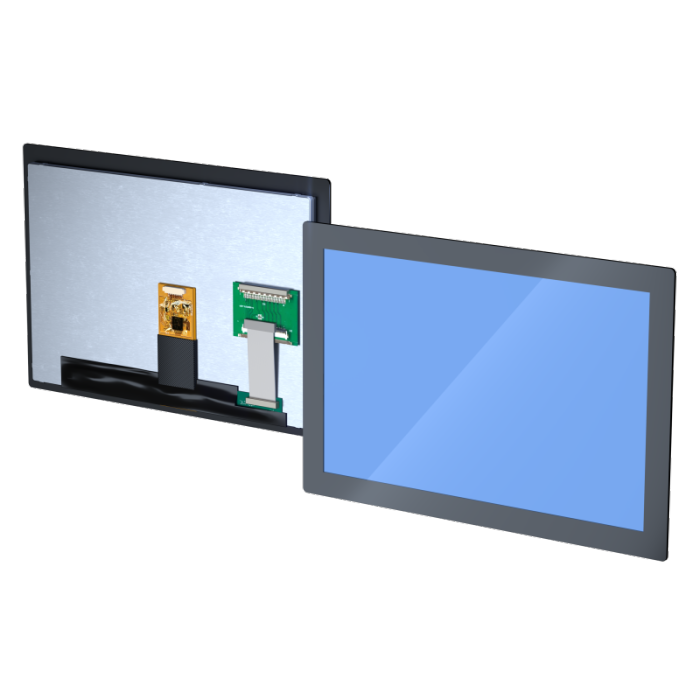

10.1" Rugged Industrial PCAP Touchscreen -- 850 nits Sunlight-Readable, Optical Bonded, LVDS, USB/I2C, Wide Temp (-30~80°C)
Detail Information
10.1" Rugged Industrial PCAP Touchscreen with up to 850 nits brightness. Features optical bonded capacitive touch technology, 10-point multi-touch capability, wide operating temperature range from -30°C to +80°C, and 6H surface hardness. Supports USB and I²C touch interfaces, making it ideal for industrial HMI, EV charging stations, medical equipment, outdoor terminals, and automation systems.

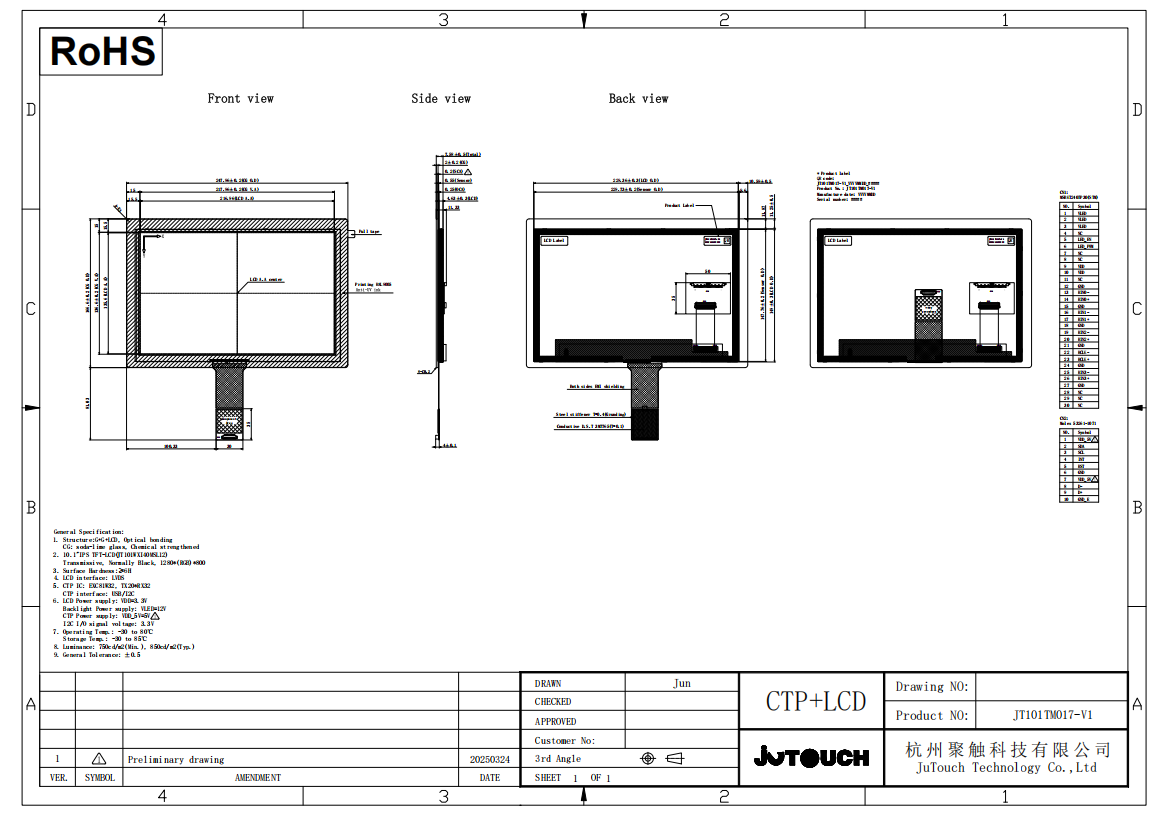

1. Drawing
2. Specifications

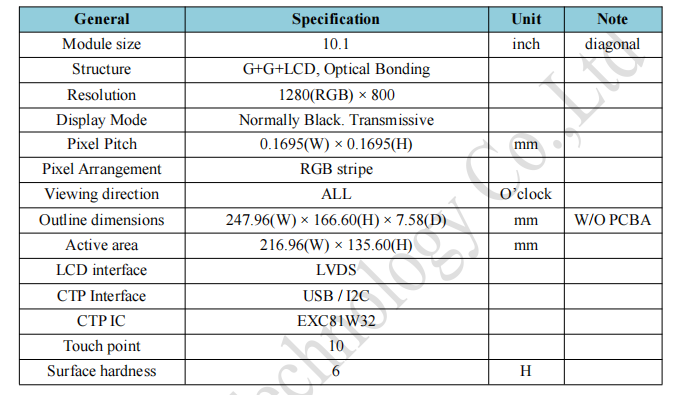

2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.
2.1.2 Features and General Description
2.2 Pin assignment

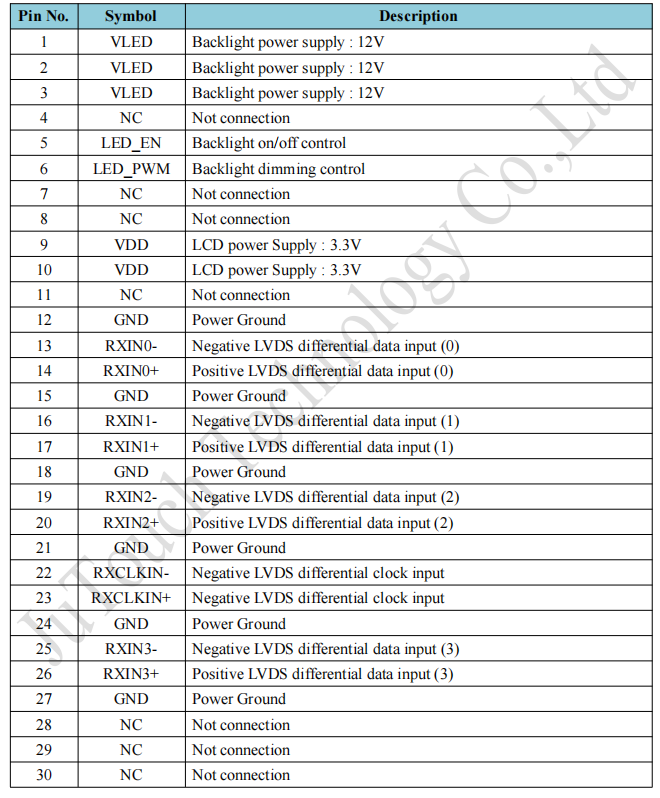

2.2.1 LCD Pin assignment
CN1 Module Side Connector : STM MSBKT2407P30 or Compatible
User Side Connector : JAE FI-X30H

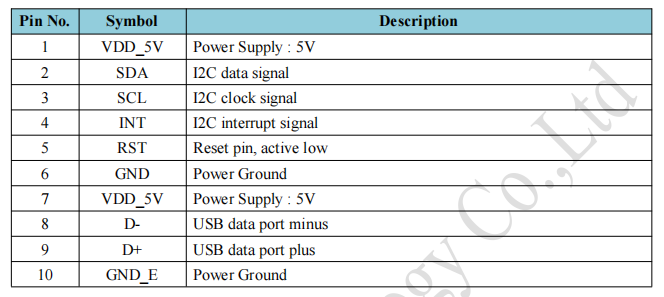

2.2.2 CTP Pin assignment
CN2 Module Side Connector : Molex 53216-1071 or Compatible
User Side Connector : Molex 51021-1000

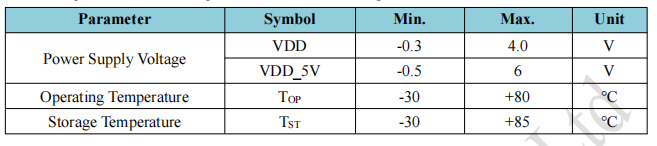

2.3 Absolute Maximum Ratings

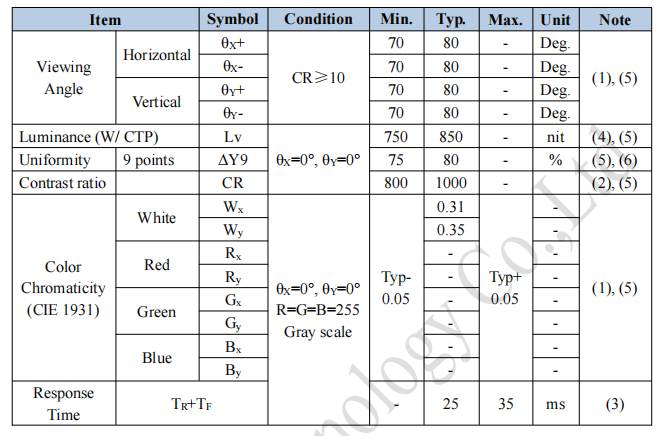

2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
