7.0" 1024x600 LVDS TFT LCD Display Module with Capacitive Touch Panel - JuTouch JT070TM009

Share
Categories	Standard Touch Display
Brand	JuTouch
Model	JT070TM009-V1.0
Resolution	1280x800 (RGB)
High brightness	400 cd/m²
Operating temperature	-20°C to 70°C
Storage temperature	-30 to 80°C
Bonding Technique	Optical bonding

Contact Now

Detail Information

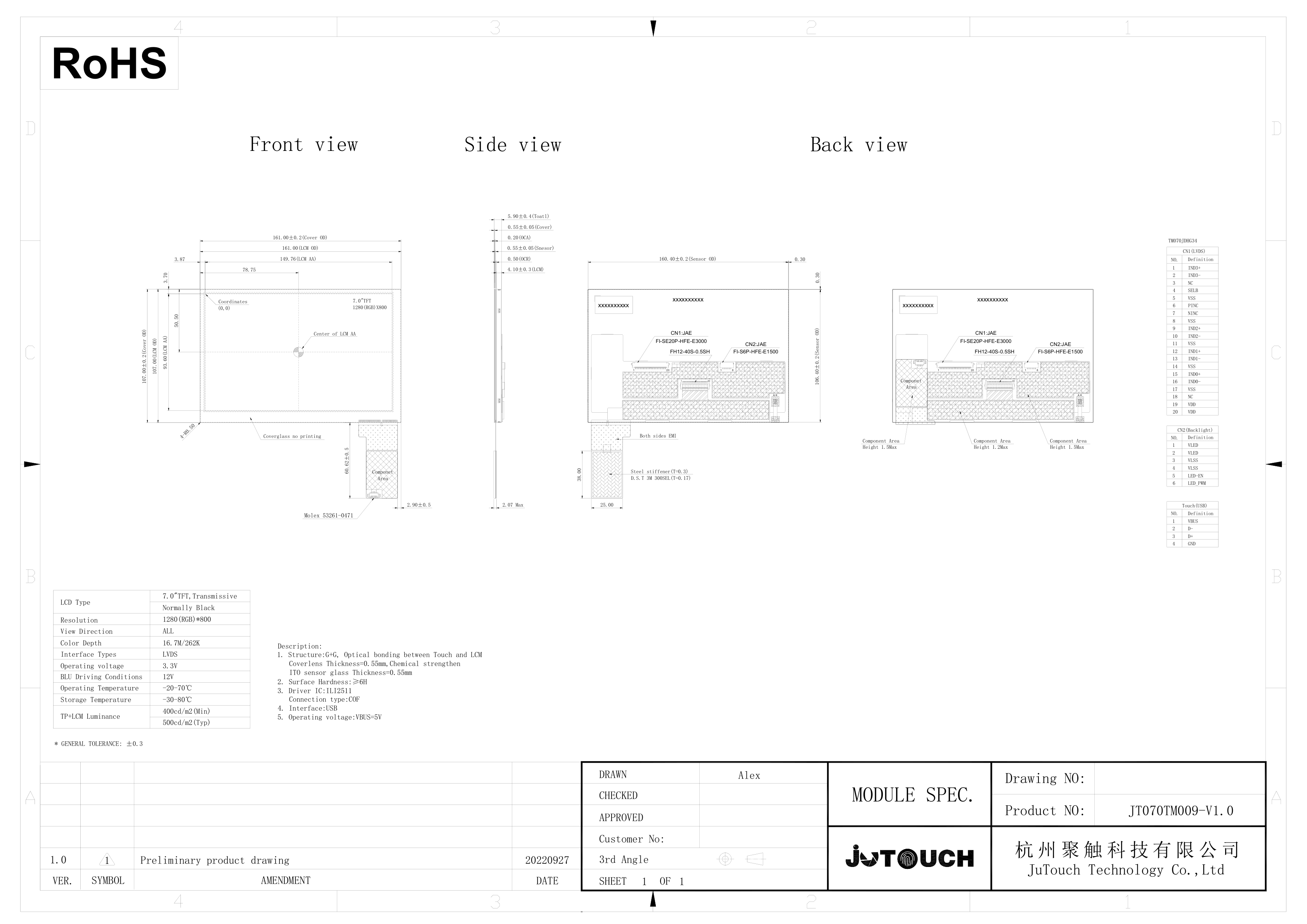

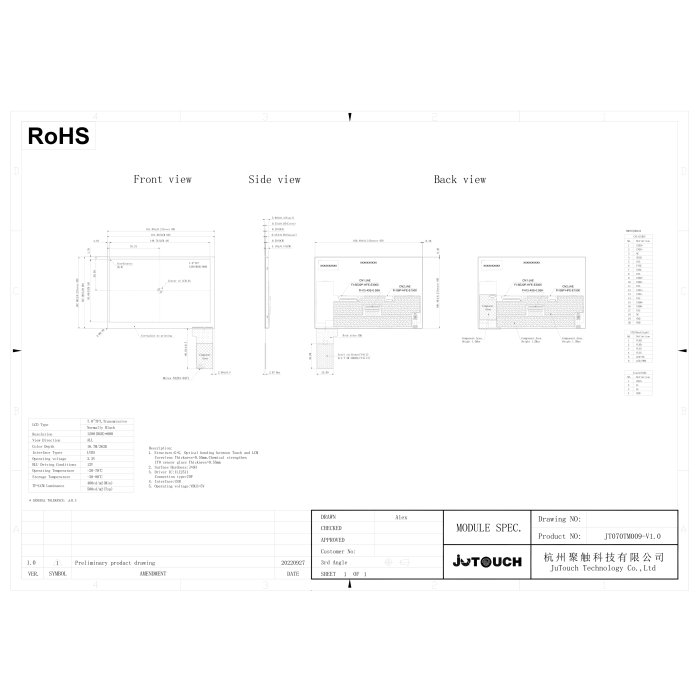

The JuTouch JT070TM009-V1.0 is a high-performance 7.0-inch TFT LCD display module designed for industrial and embedded applications. It features a 1024(RGB)x600 high-resolution transmissive panel with an LVDS display interface and I2C capacitive touch interface, powered by EK73215 and FT5426 driver ICs respectively. Built with G+G optical bonding technology and a 0.7mm chemically strengthened glass cover (surface hardness ≥6H), it delivers a high brightness of 400 cd/m² and an all-viewing angle. Operating at 3.3V with a wide temperature range of -20°C to 70°C, it is perfectly suited for industrial control, medical devices, smart home systems, and intelligent terminals.
