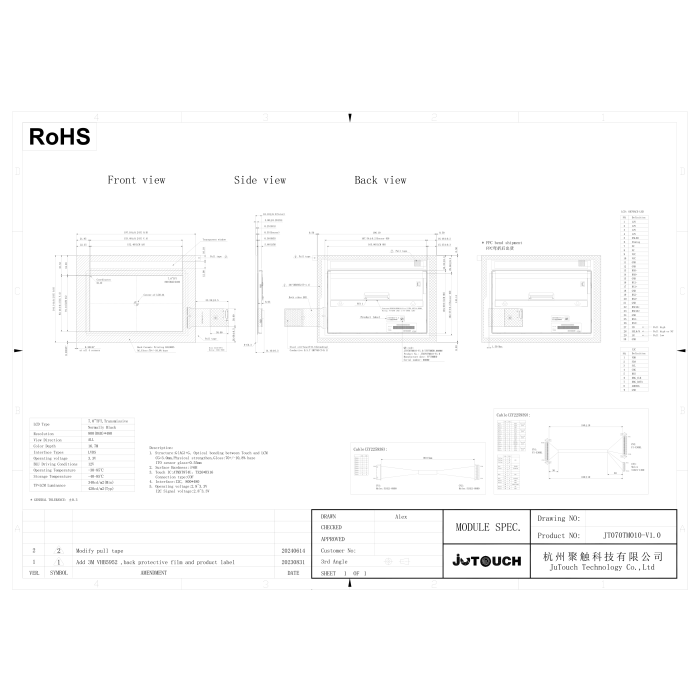

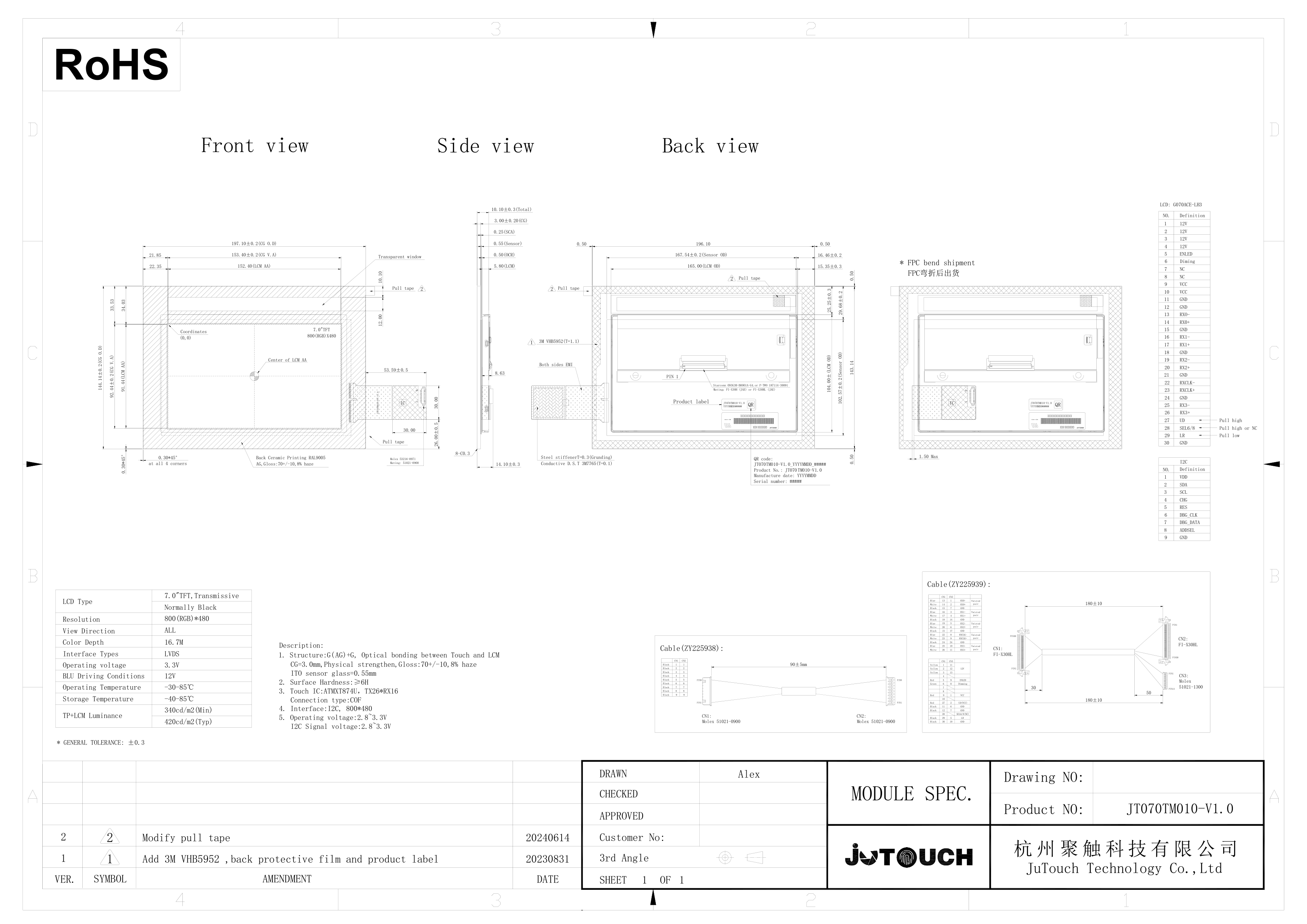

7" IPS TFT WVGA 800×480 Optically-Bonded LVDS PCAP Capacitive Touch Display Module

Share
Categories	Standard Touch Display
Brand	JuTouch
Model	JT070TM010-V1.0
Resolution	800x480
High brightness	420 cd/m²
Operating temperature	-30°C to 85°C
Storage temperature	-40°C to 85°C
Bonding Technique	Optical bonding
LCD Interface	LVDS
CTP Interface	I2C

Contact Now

Detail Information

The JT070TM010-V1.0 is a 7.0-inch projected capacitive (PCAP) touch display module with 800x480 resolution, integrating a TFT LCD with LVDS interface. It is bonded using Optical bonding, delivering high brightness of 420 cd/m² (Typ), rated for operating temperatures of -30°C to 85°C and storage temperatures of -40°C to 85°C, communicating through a I2C touch interface. Designed for industrial HMI, medical equipment, smart home control panels, and other demanding embedded applications, the JT070TM010-V1.0 combines a compact 7.0" form factor with reliable touch performance and long-term supply stability.
