7 Inch Capacitive Touch Screen Monitor 1026x600 HDMI DP USB G+G IK10 Industrial Touch Panel Display

JT070TM011-V1 is a 7-inch capacitive touch display module that integrates a TFT LCD panel with a projected capacitive touch screen (TFT+CTP structure). It delivers 1026(RGB)×600 resolution with 16.7M colors, 480 nits typical brightness (400 nits minimum), an 800:1 contrast ratio and an 85/85/85/85 all-direction viewing angle, with a 30 ms typical response time.

Built with a G+G (glass-glass) structure and air bonding, the module offers 6H surface hardness and IK10 impact resistance (withstanding the impact of a 5 kg stainless steel ball dropped from 40 cm, 20 joules), making it highly durable for public-facing and industrial environments. Video input is provided through HDMI and DP ports, while touch data is output over USB via the ATMXT1664T3 touch controller. It runs on a standard DC 12V/1A power supply and operates reliably from -20°C to 70°C (storage -30°C to 80°C), passing ±4 kV contact / ±8 kV air ESD testing.

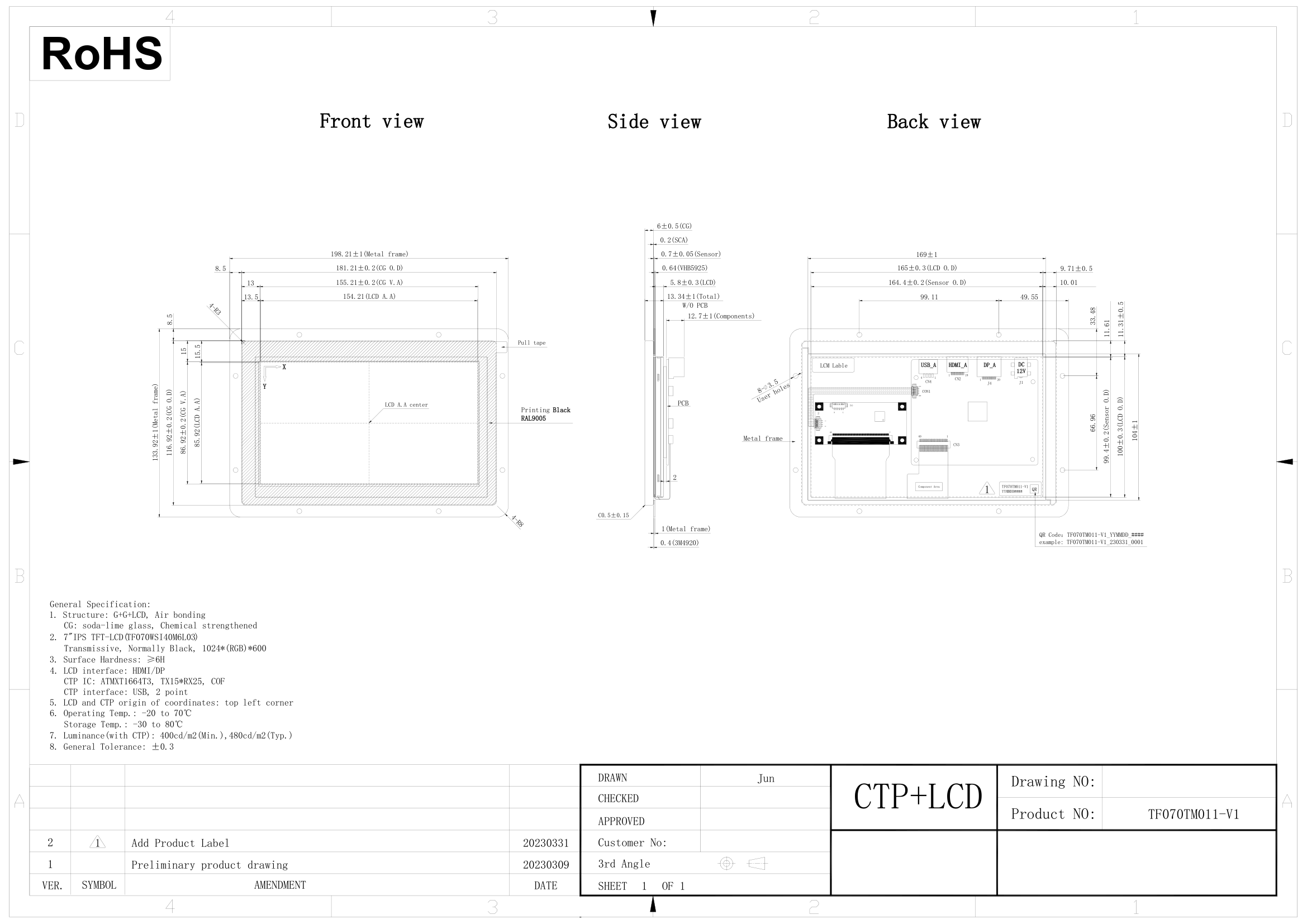

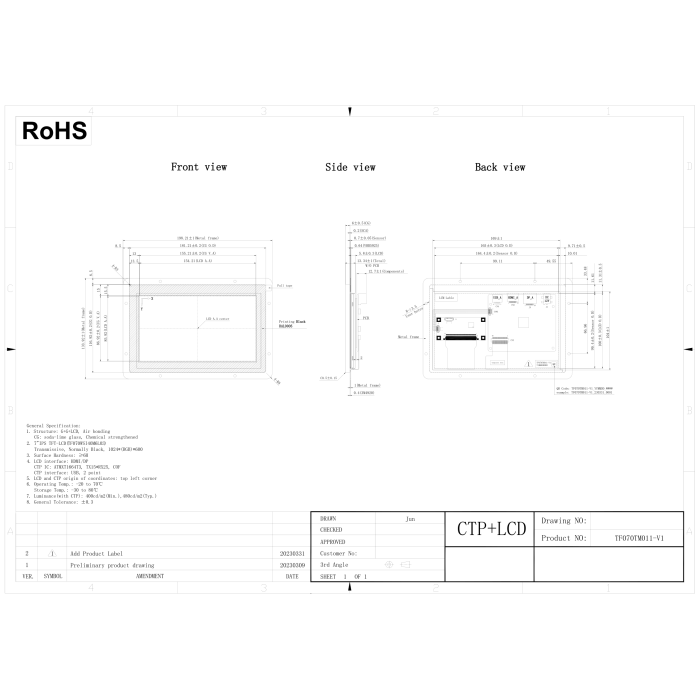

With its compact 188.21 × 116.92 mm outline and rugged glass construction, this 7-inch HDMI touch monitor is ideal for industrial HMI, self-service kiosks, medical devices, smart home control panels, and embedded equipment.
