18.5 Inch Industrial PCAP Touch Screen LCD Display Module JT185TM004-V1 with HDMI

Share
Categories	Touch Display Module With HDMI
Brand	JuTouch
Model	JT185TM004-V1 with HDMI
Resolution	1920 x 1080 (Full HD)
High brightness	850 cd/m²
Operating temperature	-30°C to +70°C
Storage temperature	-30°C to +70°C
Bonding Technique	OCA bonding
LCD Interface	LVDS (2ch)
CTP Interface	USB / I2C

Contact Now

Detail Information

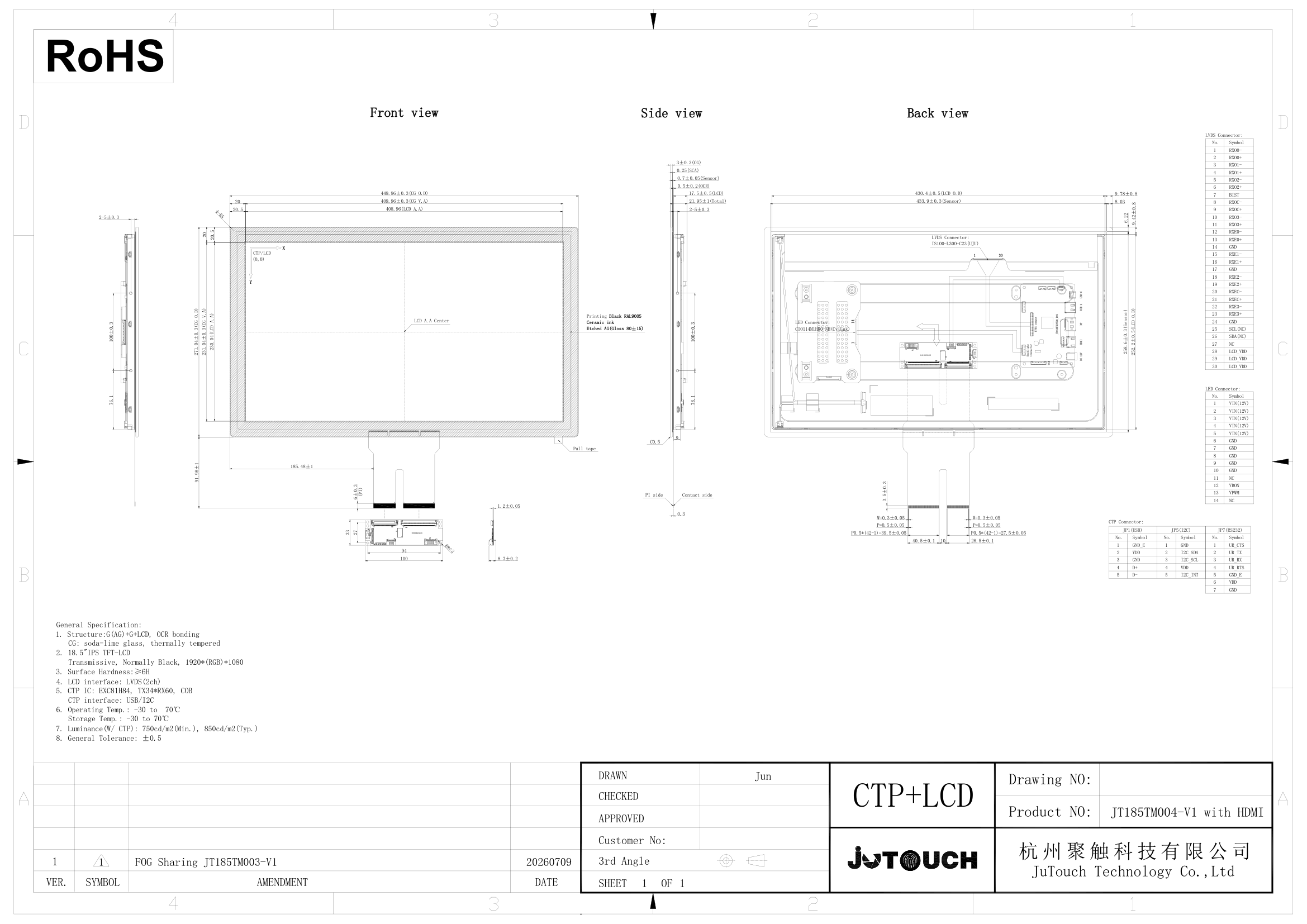

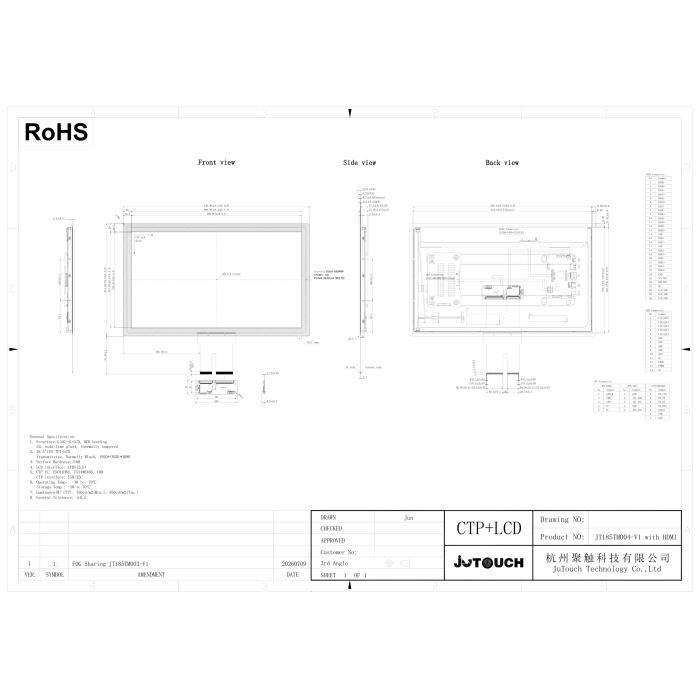

The JT185TM004-V1 with HDMI is an 18.5-inch industrial PCAP touch screen LCD display module from JuTouch Technology. It features an 18.5" TFT-LCD with Full HD resolution of 1920 x 1080 (RGB) and a G+G+G+LCD structure with OCA bonding, ensuring robust durability and optical clarity. The display delivers high brightness of 750 cd/m² (Min) to 850 cd/m² (Typ) with CTP, making it suitable for various industrial applications. It supports an operating temperature range of -30°C to +70°C and a storage temperature range of -30°C to +70°C. The LCD interface is LVDS (2ch), while the CTP interface supports USB and I2C. Additional specifications include a thermally tempered soda-lime cover glass, surface hardness ≥6H, CTP IC EXC81H84 with TX40*RX30 and COB connection, RoHS compliance, and a general tolerance of ±0.5. This module is ideal for industrial control, medical, and embedded systems requiring a reliable, high-resolution touch display with HDMI support.
