10.1 Inch Optical Bonding Capacitive Touch Monitor 1280x800 850nits HDMI DP USB 10-Point Touch Screen Display

JT101TM019-V2 is a 10.1-inch capacitive touch display module (CTP+LCD) built with optical bonding (OCA), which increases light transmittance, reduces internal reflection and significantly improves screen readability under strong ambient light. The display delivers 1280(RGB)×800 resolution, 16.7M colors, and a high 850 nits typical brightness (750 nits minimum) — about three times brighter than standard office displays — together with a 1000:1 contrast ratio, 80° all-direction viewing angles and a fast 25 ms response time.

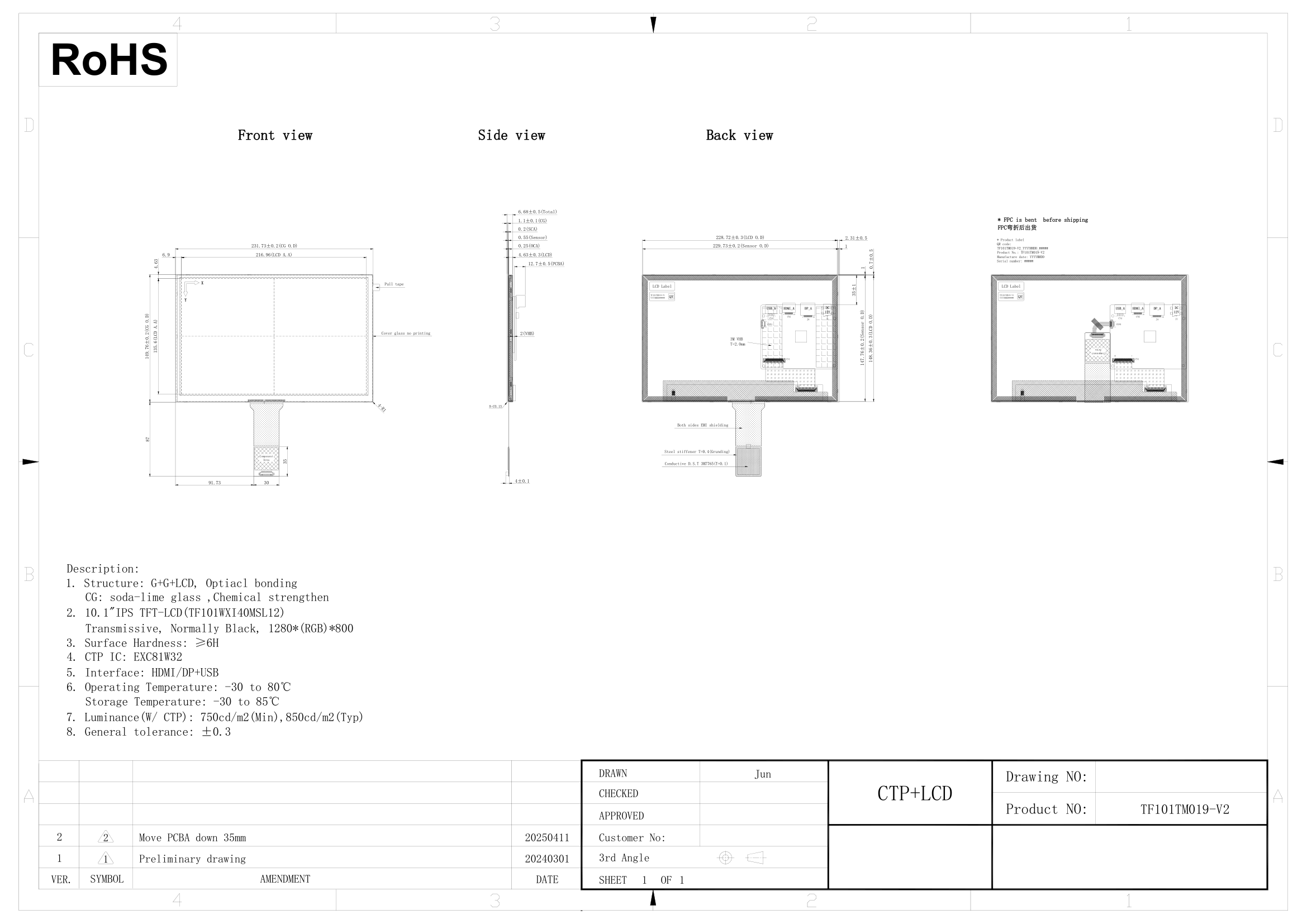

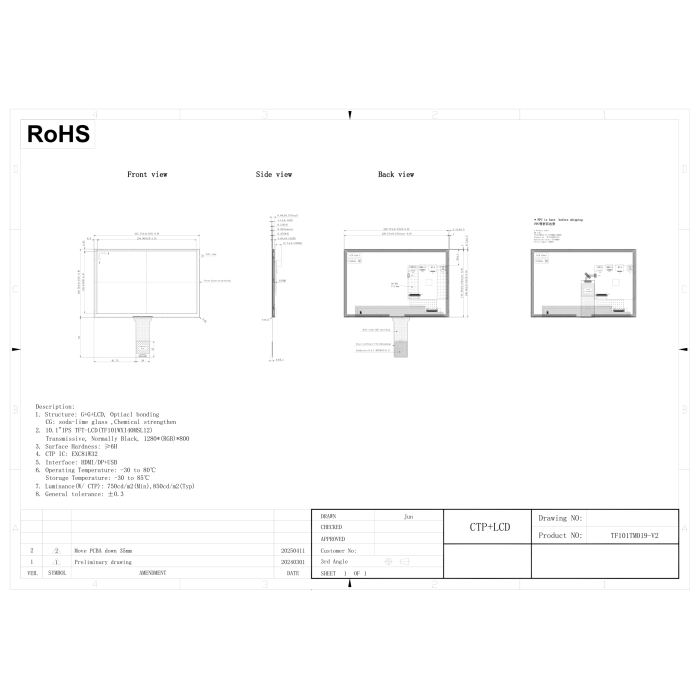

The GG+LCD structure provides 6H surface hardness and supports 10-point multi-touch through the EXC81W32 touch controller over a USB interface, while video is connected via HDMI or DP. Measuring only 6.68 mm thin with a 231.73 × 149.76 mm outline, it fits easily into slim embedded designs. It operates from -30°C to 80°C (storage -30°C to 85°C) and passes ±4 kV contact / ±8 kV air ESD reliability testing.

This high-brightness 10.1-inch USB touch monitor is well suited for outdoor-facing terminals, industrial HMI, self-service kiosks, POS systems, and medical instruments.
