10.1 Inch Open Frame Capacitive Touch Monitor 1280x800 850nits HDMI DP USB AG AF Anti-Glare Industrial Embedded Display

Share
Categories	Touch Display Module With HDMI
Brand	JuTouch
Model	JT101TM032-V1
Resolution	1280(RGB)×800
High brightness	850 cd/m²
Operating temperature	-30°C ~ 80°C
Storage temperature	-30°C ~ 85°C
Bonding Technique	optical bonding
LCD Interface	HDMI / DP
CTP Interface	USB

Contact Now

Detail Information

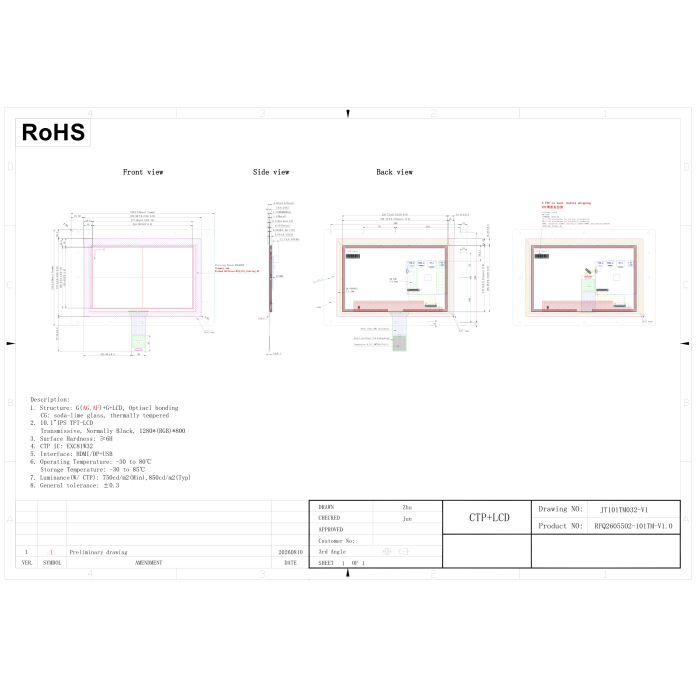

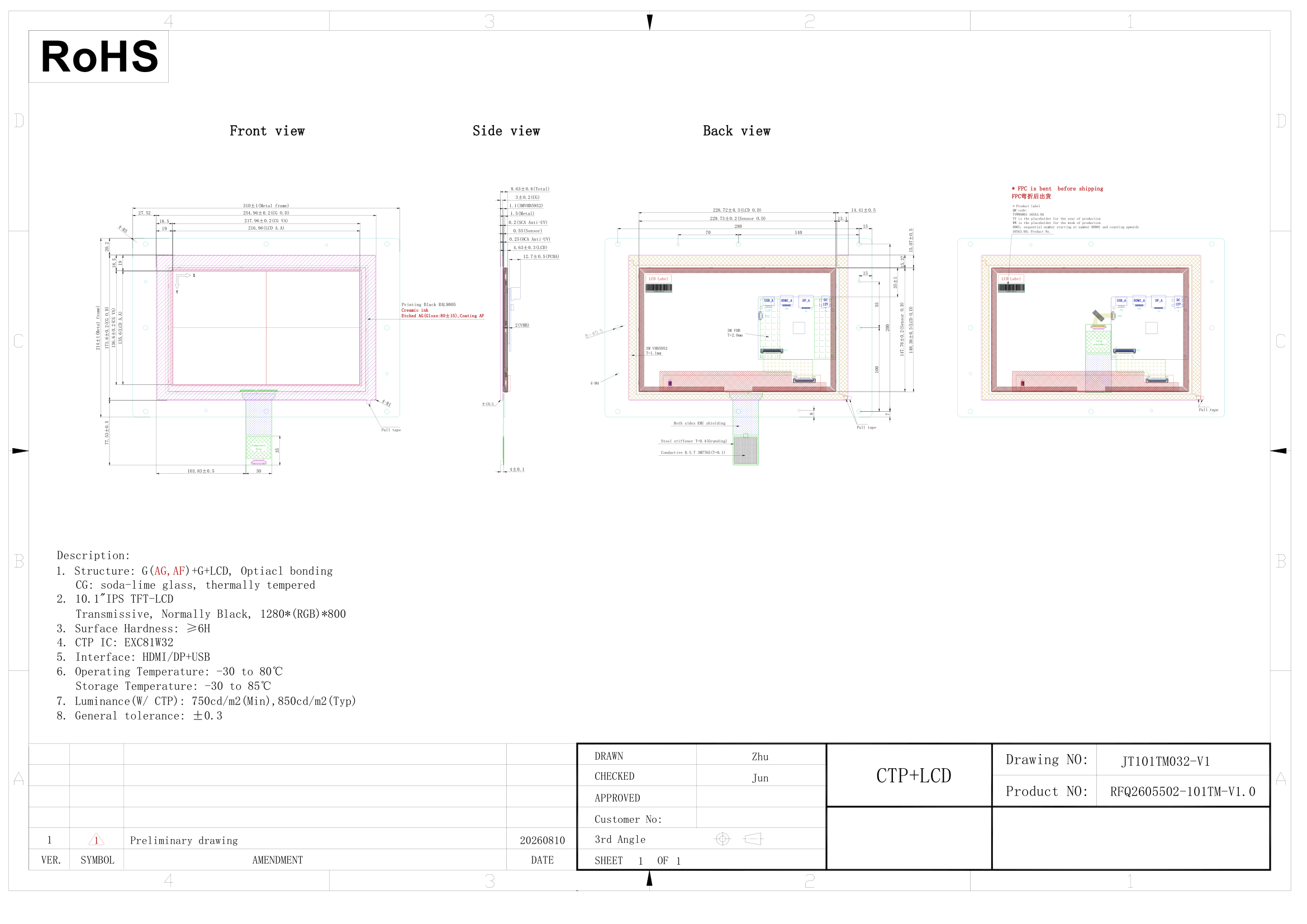

The JT101TM032 is a 10.1-inch open-frame capacitive touch monitor (CTP+LCD) designed for straightforward integration into kiosks, cabinets and custom enclosures, with mounting holes around its 310 × 214 × 8.63 mm open-frame chassis. The panel delivers 1280(RGB)×800 resolution, 16.7M colors, 850 nits typical brightness (750 nits minimum), a 1000:1 contrast ratio and 80° all-direction viewing angles with a 25 ms response time.

OCA optical bonding improves sunlight readability and reduces internal reflection, while the front surface combines an AG anti-glare treatment (gloss 80±15) with an AF anti-fingerprint coating on 6H hardness glass, keeping the screen legible and smudge-free in high-frequency public use. Touch supports 10-point capacitive input via the EXC81W32 controller over USB; video input is available through HDMI and DP, powered from a DC 12V supply. It is rated for -30°C to 80°C operation and passes ±4 kV contact / ±8 kV air ESD testing.

This open-frame industrial touch display is an excellent fit for self-service terminals, vending machines, industrial control panels, elevator displays and smart appliance integrations.
