13.3 Inch Industrial PCAP Touch Screen LCD Display Module JT133TM006-V1 – 1920x1080 FHD, 380 Nits, G+G OCA Bonding, HDMI+USB, RoHS

Share
Categories	Touch Display Module With HDMI
Brand	JuTouch
Model	JT133TM006-V1
Resolution	1920 x 1080 (Full HD)
High brightness	380 cd/m²
Operating temperature	0°C to +50°C
Storage temperature	-20°C to +60°C
Bonding Technique	OCA bonding
LCD Interface	HDMI
CTP Interface	USB

Contact Now

Detail Information

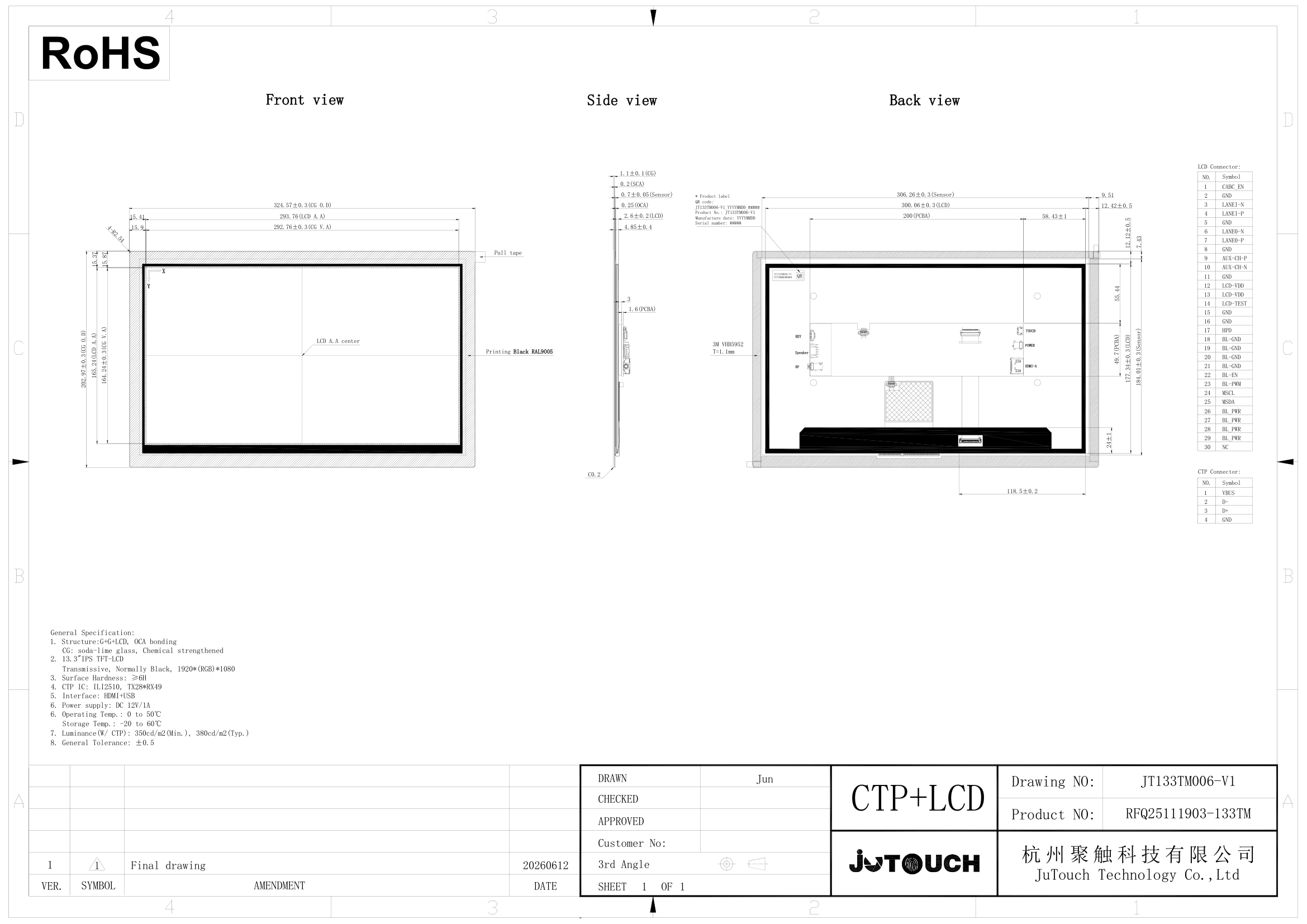

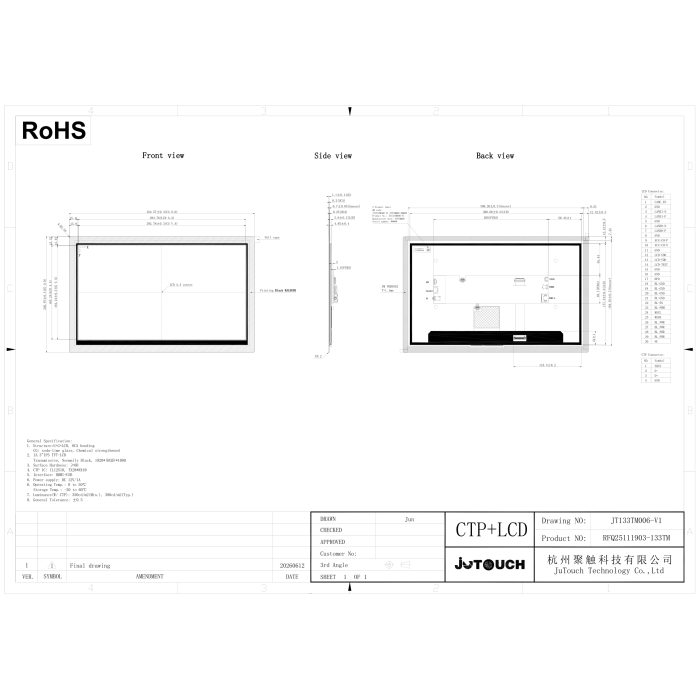

The JT133TM006-V1 is a 13.3-inch industrial PCAP touch screen LCD display module designed for reliable performance in commercial and industrial applications. It features a Full HD resolution of 1920 x 1080, delivering sharp and detailed visuals. With a brightness of 350 cd/m² (min) and 380 cd/m² (typ), the display ensures clear readability in indoor environments. The module operates within a temperature range of 0°C to +50°C and can be stored from -20°C to +60°C. It utilizes a G+G structure with OCA bonding for enhanced durability and optical clarity. The LCD interface is HDMI, while the CTP interface is USB, supporting a combined HDMI + USB connection. Additional specifications include a transmissive, normally black 13.3" TFT LCD, surface hardness ≥6H, CTP IC ILI2510 (TX29*RX49), DC 12V/1A power supply, RoHS compliance, and general tolerance ±0.5. This module is an ideal solution for industrial control, medical, and embedded applications requiring a reliable touch display.
