15.0 Inch Industrial PCAP Touch Screen LCD Display Module with HDMI – 1024x768, 1250 Nits High Brightness

Share
Categories	Touch Display Module With HDMI
Brand	JuTouch
Model	JT150TM013-V1 with HDMI
Resolution	1024 x 768 (RGB)
High brightness	1250 cd/m²
Operating temperature	-30°C to +80°C
Storage temperature	-30°C to +80°C
Bonding Technique	OCA bonding
LCD Interface	LVDS
CTP Interface	USB / I2C / RS232

Contact Now

Detail Information

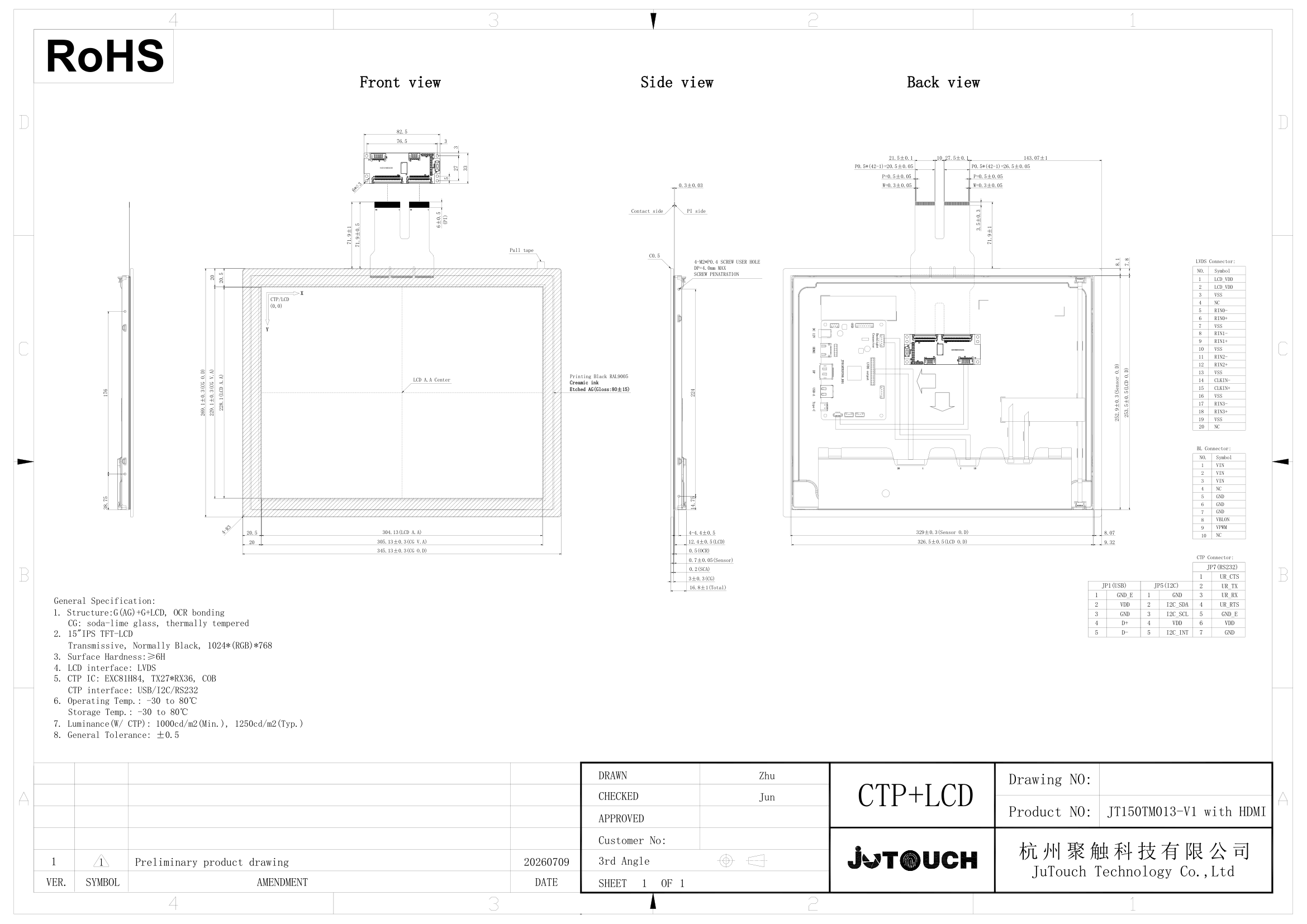

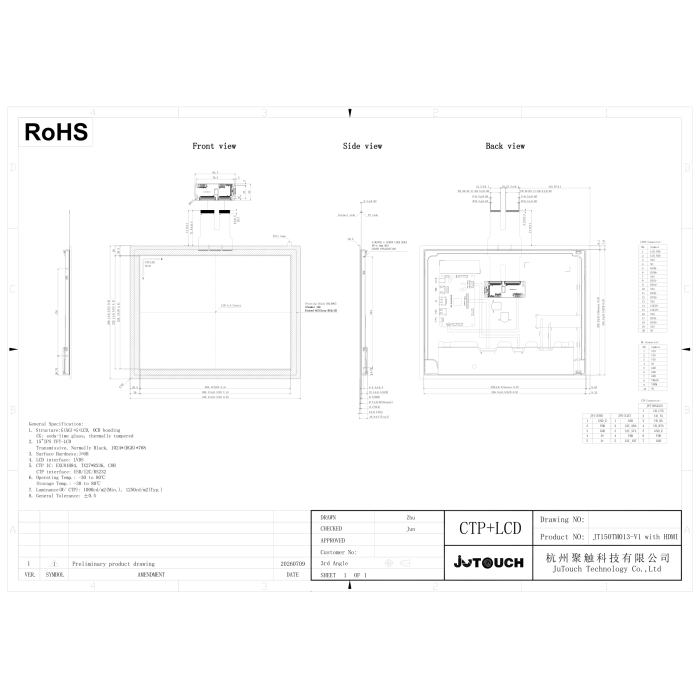

The JT150TM013-V1 with HDMI is a 15.6-inch industrial PCAP touch screen LCD display module from JuTouch Technology. It combines a 15.6" TFT-LCD with a projected capacitive touch panel using a G+G + LCD structure and OCA bonding, ensuring robust durability and optical clarity. The display features a resolution of 1024 x 768 (RGB) and delivers high brightness of 1000 cd/m² (Min) to 1250 cd/m² (Typ) with CTP. It supports an operating temperature range of -30°C to +80°C and a storage temperature range of -30°C to +80°C. The LCD interface is LVDS, while the CTP interface supports USB, I2C, and RS232. Additional specifications include a thermally tempered soda-lime cover glass, surface hardness ≥6H, CTP IC EK08116 with TX47*RX36 and COB connection, RoHS compliance, and a general tolerance of ±0.5. This module is suitable for industrial, medical, and embedded applications requiring a reliable, high-brightness touch display with HDMI support.
