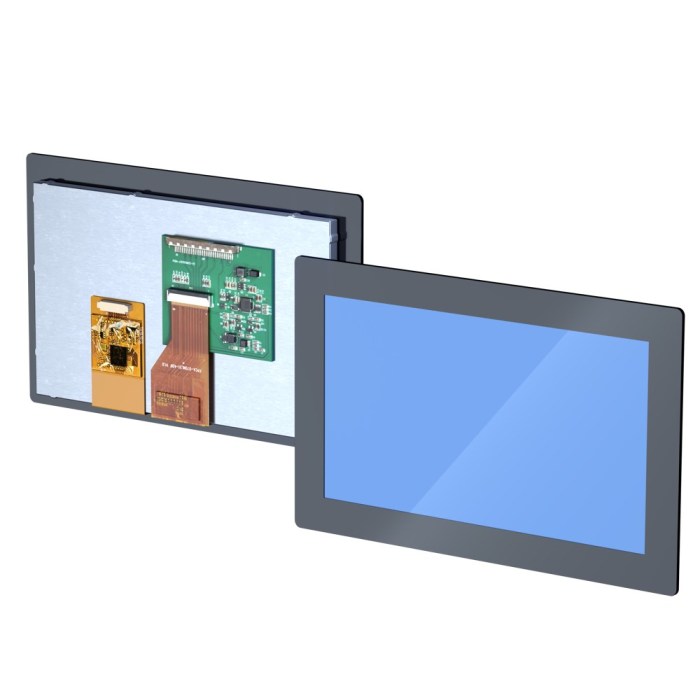

新 · 7 Inch Industrial PCAP Touch Display, 1024×600, 850 Nits, LVDS, Optical Bonding

Share
Categories	4.3"-12.1"Family Touch Display Module
Brand	JuTouch
Model	JT070TM023-V1
Resolution	1024×600 (RGB)
High brightness	850 cd/m² (Typical)
LCD Interface	LVDS
Operating temperature	-30°C to +80°C
Storage temperature	-40°C to +85°C
Bonding Technique	Optical Bonding
CTP Interface	USB/I2C
CTP IC	EXC81W32

Contact Now

Detail Information

7-Inch Industrial PCAP Touch Display with LVDS

JT070TM023-V1 combines a 1024 × 600 TFT LCD with an optically bonded G+G capacitive touch panel. The source specification lists 850 nits typical luminance with CTP, 10 touch points and an EXC81W32 touch controller. Video uses LVDS; the listed touch interfaces are USB / I2C.

The operating temperature range is -30°C to +80°C. This page presents the original technical data as searchable tables while retaining the mechanical drawing and original documentation access.

Key Specifications

850 Nits Typical

Luminance with the touch panel: 750 nits minimum and 850 nits typical.

Optically Bonded PCAP

G+G+LCD optical bonding, 10 touch points and 6H surface hardness.

LVDS + USB / I2C

Separate display and touch interfaces, with the original connector pin assignments below.

Original Mechanical Drawing

Original JT070TM023-V1 mechanical drawing

The outline dimensions are 185.21 × 116.92 × 8.35 mm, excluding PCBA. The active area is 154.21 × 85.92 mm.

General Specifications

Capacitive touch module with TFT LCD and backlight unit.

General	Specification	Unit	Note
Module size	7.0	inch	Diagonal
Structure	G+G+LCD, Optical Bonding	—	—
Resolution	1024(RGB) × 600	—	—
Display mode	Normally Black, Transmissive	—	—
Pixel pitch	0.1506(W) × 0.1432(H)	mm	—
Pixel arrangement	RGB stripe	—	—
Viewing direction	ALL	O’clock	—
Outline dimensions	185.21(W) × 116.92(H) × 8.35(D)	mm	W/O PCBA
Active area	154.21(W) × 85.92(H)	mm	—
LCD interface	LVDS	—	—
CTP interface	USB / I2C	—	—
CTP IC	EXC81W32	—	—
Touch points	10	—	—
Surface hardness	6	H	—

LCD Pin Assignment — CN1

Module-side connector: STM MSBKT2407P30 or compatible. User-side connector: JAE FI-X30H.

Pin No.	Symbol	Description
1	VLED	Backlight power supply: 12 V
2	VLED	Backlight power supply: 12 V
3	VLED	Backlight power supply: 12 V
4	NC	No connection
5	LED_EN	Backlight on/off control
6	LED_PWM	Backlight dimming control
7	NC	No connection
8	NC	No connection
9	VDD	LCD power supply: 3.3 V
10	VDD	LCD power supply: 3.3 V
11	NC	No connection
12	GND	Power ground
13	RXIN0-	Negative LVDS differential data input (0)
14	RXIN0+	Positive LVDS differential data input (0)
15	GND	Power ground
16	RXIN1-	Negative LVDS differential data input (1)
17	RXIN1+	Positive LVDS differential data input (1)
18	GND	Power ground
19	RXIN2-	Negative LVDS differential data input (2)
20	RXIN2+	Positive LVDS differential data input (2)
21	GND	Power ground
22	RXCLKIN-	Negative LVDS differential clock input
23	RXCLKIN+	Positive LVDS differential clock input
24	GND	Power ground
25	RXIN3-	Negative LVDS differential data input (3)
26	RXIN3+	Positive LVDS differential data input (3)
27	GND	Power ground
28	NC	No connection
29	NC	No connection
30	NC	No connection

CTP Pin Assignment — CN2

Module-side connector: Molex 53216-1071 or compatible. User-side connector: Molex 51021-1000.

Pin No.	Symbol	Description
1	VDD_5V	Power supply: 5 V
2	SDA	I2C data signal
3	SCL	I2C clock signal
4	INT	I2C interrupt signal
5	RST	Reset pin, active low
6	GND	Power ground
7	VDD_5V	Power supply: 5 V
8	D-	USB data port minus
9	D+	USB data port plus
10	GND_E	Power ground

Absolute Maximum Ratings

This table reproduces the absolute maximum ratings. These limits must not be treated as nominal power-supply settings.

Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VDD	-0.3	4.0	V
Power supply voltage	VDD_5V	-0.5	6	V
Operating temperature	TOP	-30	+80	°C
Storage temperature	TST	-40	+85	°C

Optical Characteristics

Item / Symbol	Condition	Min.	Typ.	Max.	Unit	Note
Viewing angle, horizontal θx+	CR ≥ 10	80	—	—	Deg.	(1), (5)
Viewing angle, horizontal θx-	CR ≥ 10	80	—	—	Deg.	(1), (5)
Viewing angle, vertical θy+	CR ≥ 10	80	—	—	Deg.	(1), (5)
Viewing angle, vertical θy-	CR ≥ 10	80	—	—	Deg.	(1), (5)
Luminance with CTP (Lv)	θx = 0°, θy = 0°	750	850	—	nit	(4), (5)
Uniformity, 9 points (ΔY9)	θx = 0°, θy = 0°	70	—	—	%	(5), (6)
Contrast ratio (CR)	θx = 0°, θy = 0°	900	1000	—	—	(2), (5)
White chromaticity Wx	θx = 0°, θy = 0°; R = G = B = 255; gray scale	Typ. − 0.05	0.30	Typ. + 0.05	—	(1), (5)
White chromaticity Wy	Same chromaticity test condition	Typ. − 0.05	0.33	Typ. + 0.05	—	(1), (5)
Red Rx	Same chromaticity test condition	Typ. − 0.05	—	Typ. + 0.05	—	(1), (5)
Red Ry	Same chromaticity test condition	Typ. − 0.05	—	Typ. + 0.05	—	(1), (5)
Green Gx	Same chromaticity test condition	Typ. − 0.05	—	Typ. + 0.05	—	(1), (5)
Green Gy	Same chromaticity test condition	Typ. − 0.05	—	Typ. + 0.05	—	(1), (5)
Blue Bx	Same chromaticity test condition	Typ. − 0.05	—	Typ. + 0.05	—	(1), (5)
Blue By	Same chromaticity test condition	Typ. − 0.05	—	Typ. + 0.05	—	(1), (5)
Response time (TR + TF)	—	—	25	35	ms	(3)

“—” indicates a value not supplied in the original table. Chromaticity limits and note numbers are retained from that table. Refer to the original specification for note definitions; no missing typical chromaticity values have been inferred.

Application References from the Original Product Page

The original page lists industrial automation HMI, EV charging stations and outdoor self-service devices. The images below are application illustrations, not evidence of certified compatibility or customer deployments.

Industrial automation HMI application illustration — Industrial automation HMI

EV charging station application illustration — EV charging station

Outdoor self-service devices application illustration — Outdoor self-service devices

OEM Integration Questions

What interfaces are specified?

The LCD uses LVDS. The CTP lists USB / I2C. Review CN1 and CN2 pin assignments for the selected host system.

Does the stated outline include the PCBA?

No. The general specification explicitly labels the outline dimensions “W/O PCBA”.

What should be included in an inquiry?

Provide model JT070TM023-V1, required quantity, host interface details and mechanical constraints. Request the current drawing and specification revision for sample evaluation.
