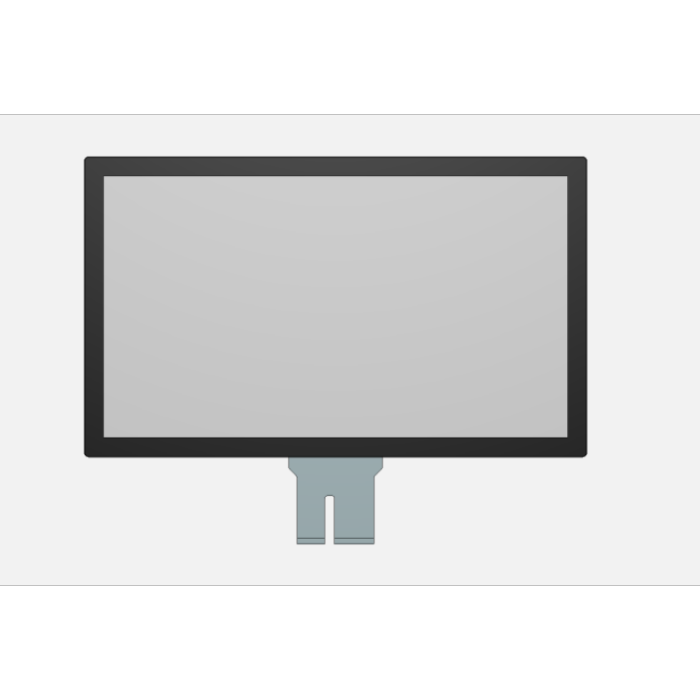

21.5" TFT LCD Display Module with High Brightness, 1250 nits Sunlight Readable, FHD 1920×1080, LVDS, Wide Temperature (-30~80°C)
Detail Information
21.5" TFT LCD Display Module with up to 1250 nits brightness. Features OCR bonded capacitive touch technology, 10‑point multi‑touch capability, wide operating temperature range from -30°C to +80°C, and 6H surface hardness with etched anti‑glare treatment. Supports USB, I²C, and RS232 touch interfaces, making it ideal for industrial HMI, outdoor terminals, medical equipment, and automation systems.

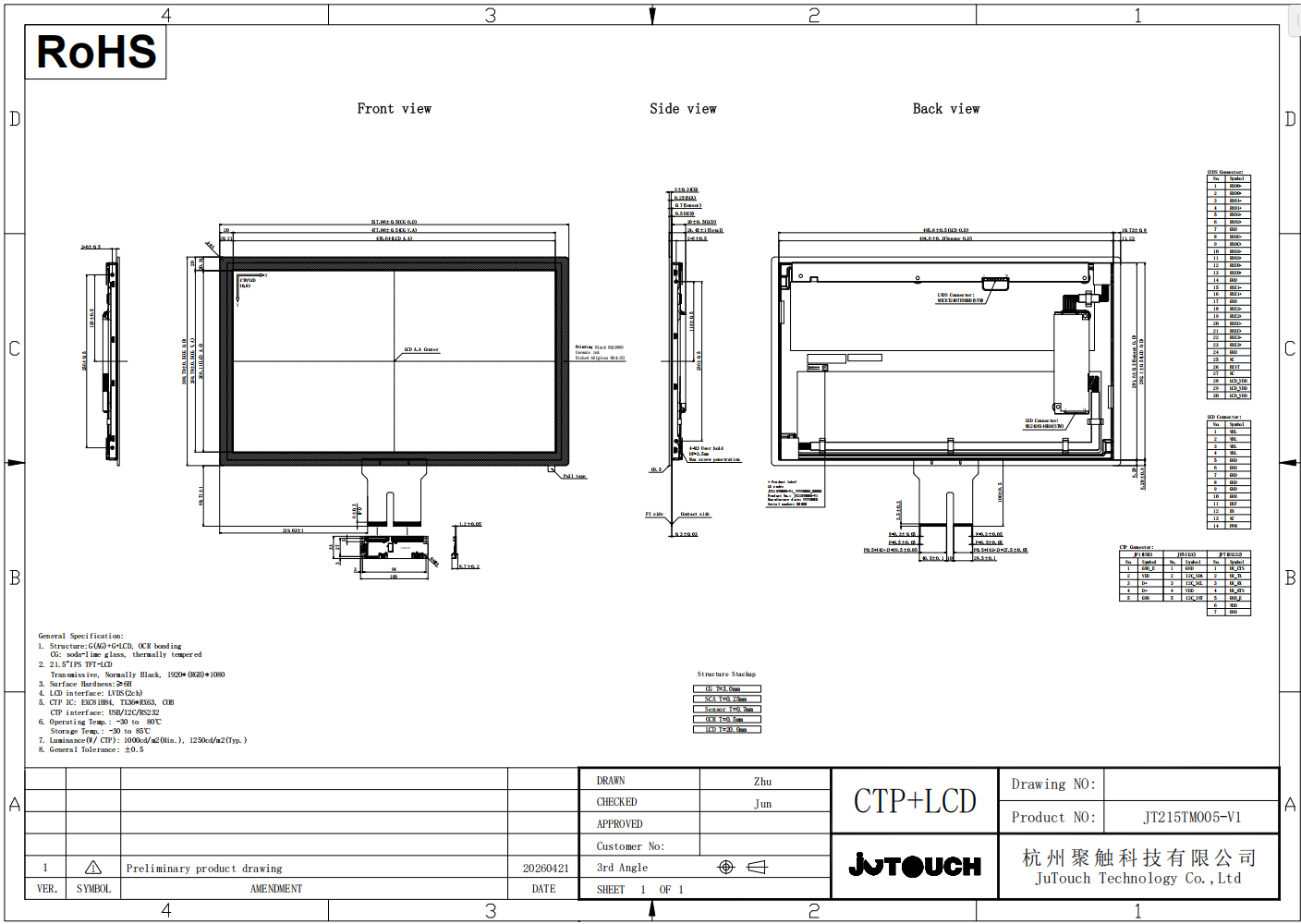

1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.

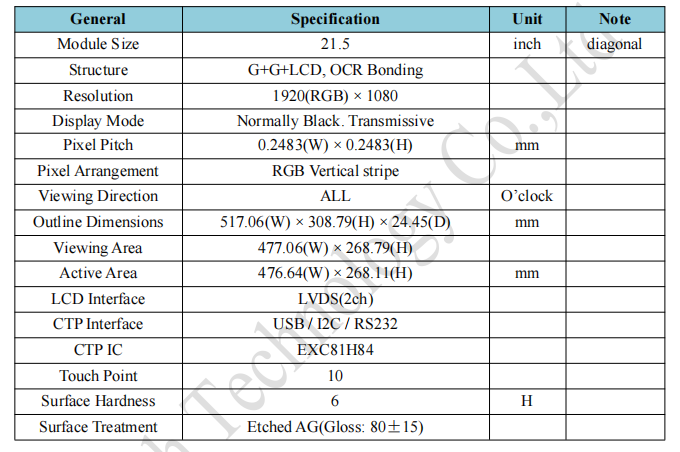

2.1.2 Features and General Description
2.2 Pin assignment

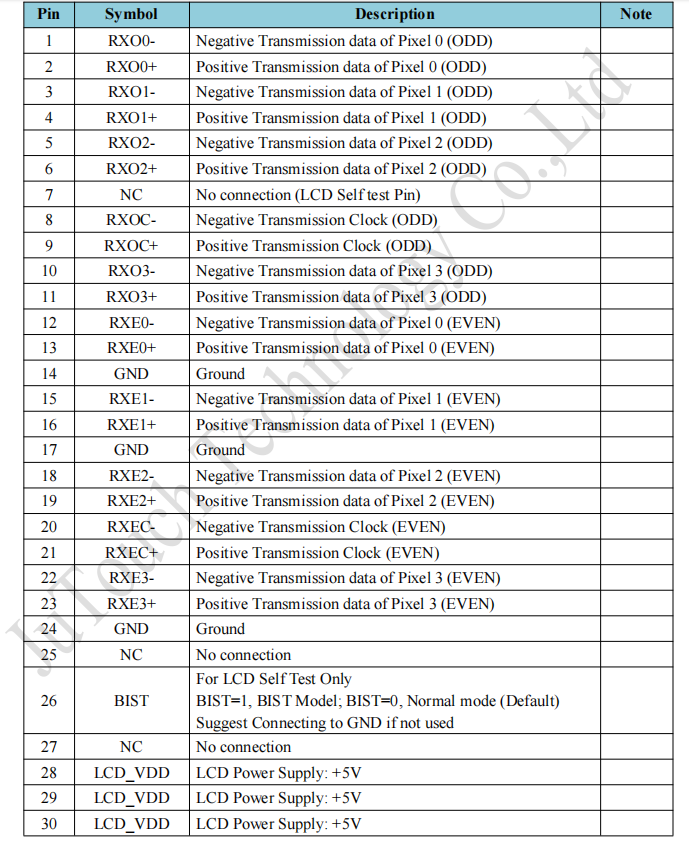

2.2.1 LCD Pin assignment

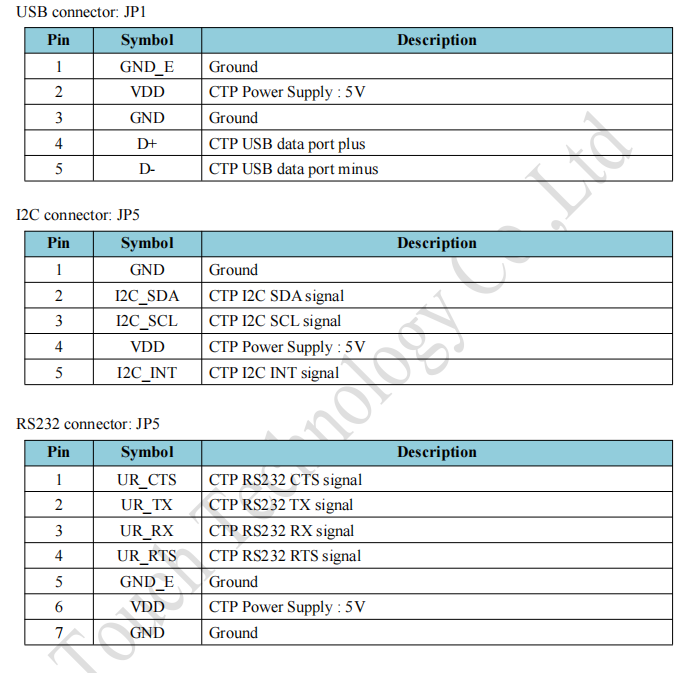

2.2.2 CTP Pin assignment

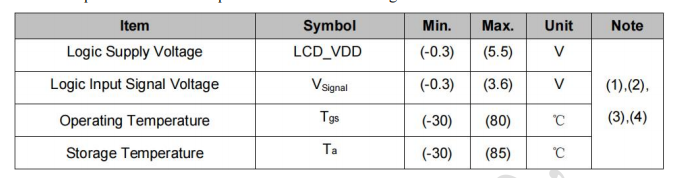

2.3 Absolute Maximum Ratings

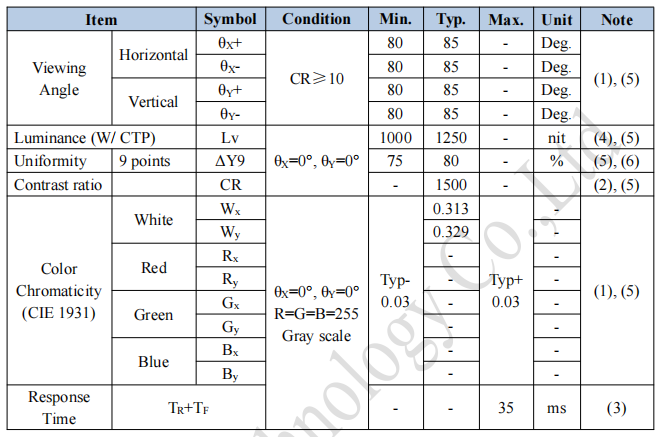

2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
