Capacitive Touch Display Expert
15.2‑inch FHD (1920×960) TFT‑LCD open cell with LVDS interface
Detail Information
15.2‑inch FHD (1920×960) TFT‑LCD open cell with LVDS interface, 3000:1 contrast ratio, 178° ultra‑wide viewing angles, 500 cd/m² brightness, 16.7M colours (8‑bit), normally black mode, DE‑only support. Designed for public information displays and commercial signage applications.

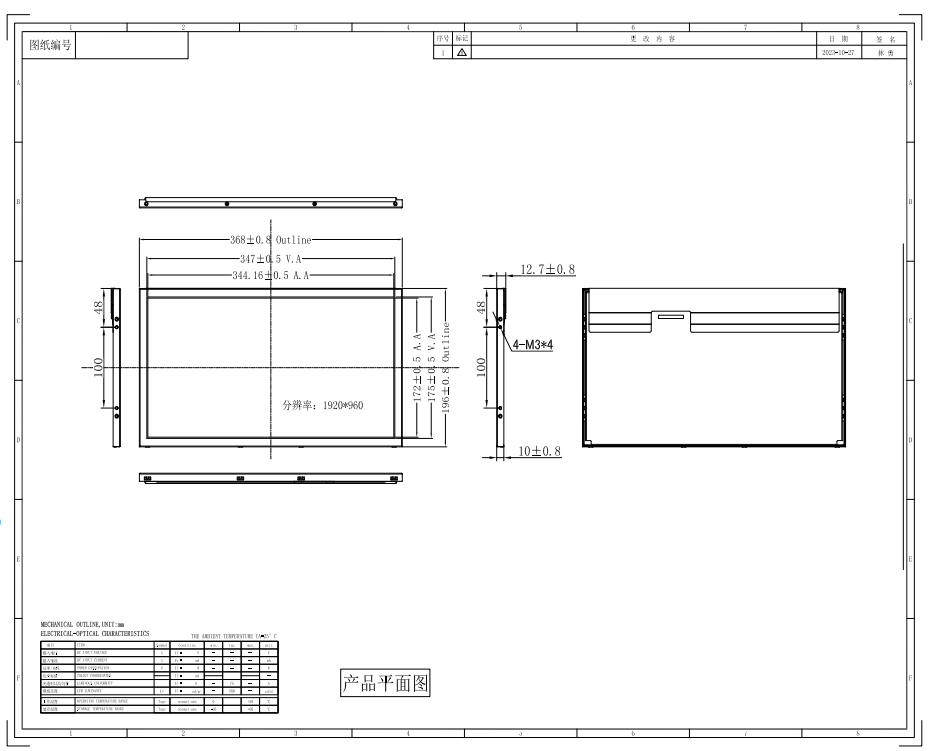

1. Outline drawing

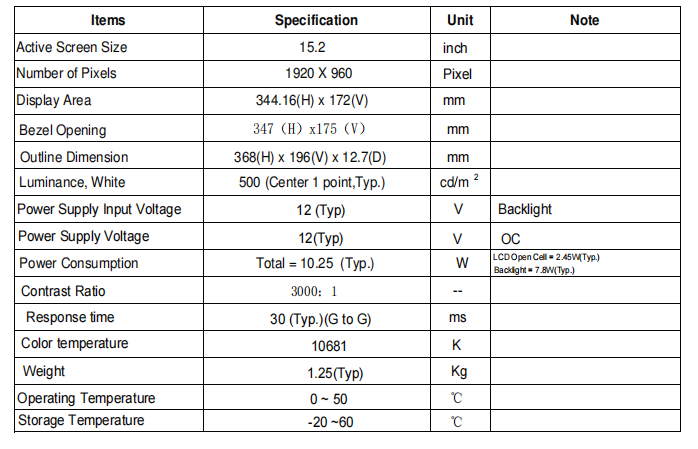

2.General Specifications

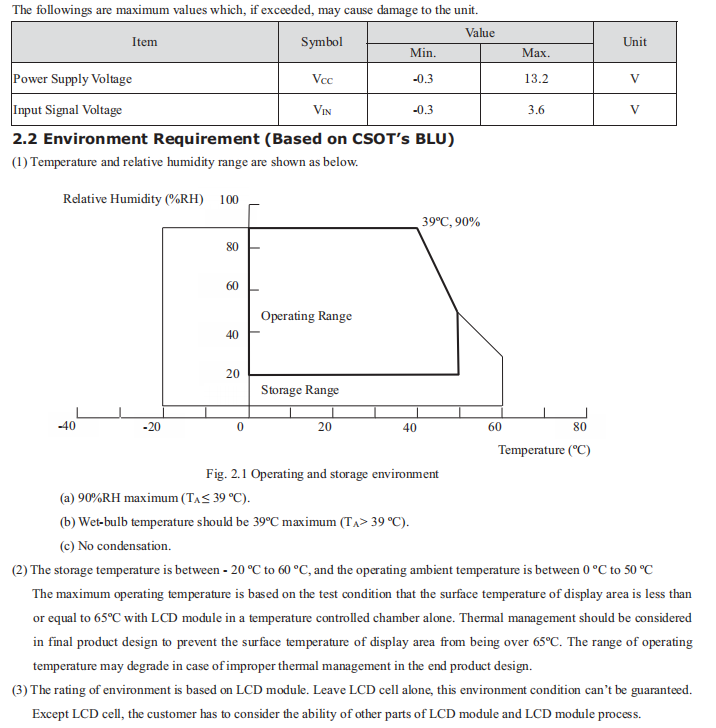

3.Operation Specifications

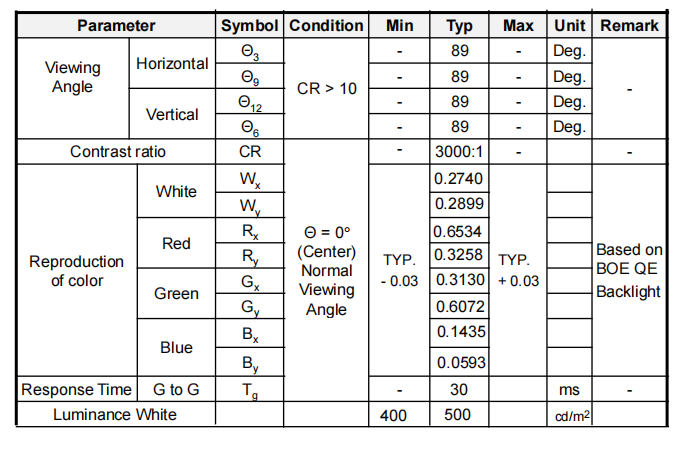

4. Optical Specifications
