36.4-inch Full HDTV Bar-Type TFT LCD (1920×641)
Detail Information
A 36.4-inch TFT Liquid Crystal Display TV product with driver ICs and 2-channel LVDS interface. Supports 1920×641 Full HDTV format and displays 16.7M colors (8-bit). Features 5000:1 ultra-high contrast ratio, ±89° wide viewing angle (H/V), normally black transmissive mode, and anti-glare 3H polarizer. Backlight unit is not built in. Designed for large-format bar-type TV and public display applications.

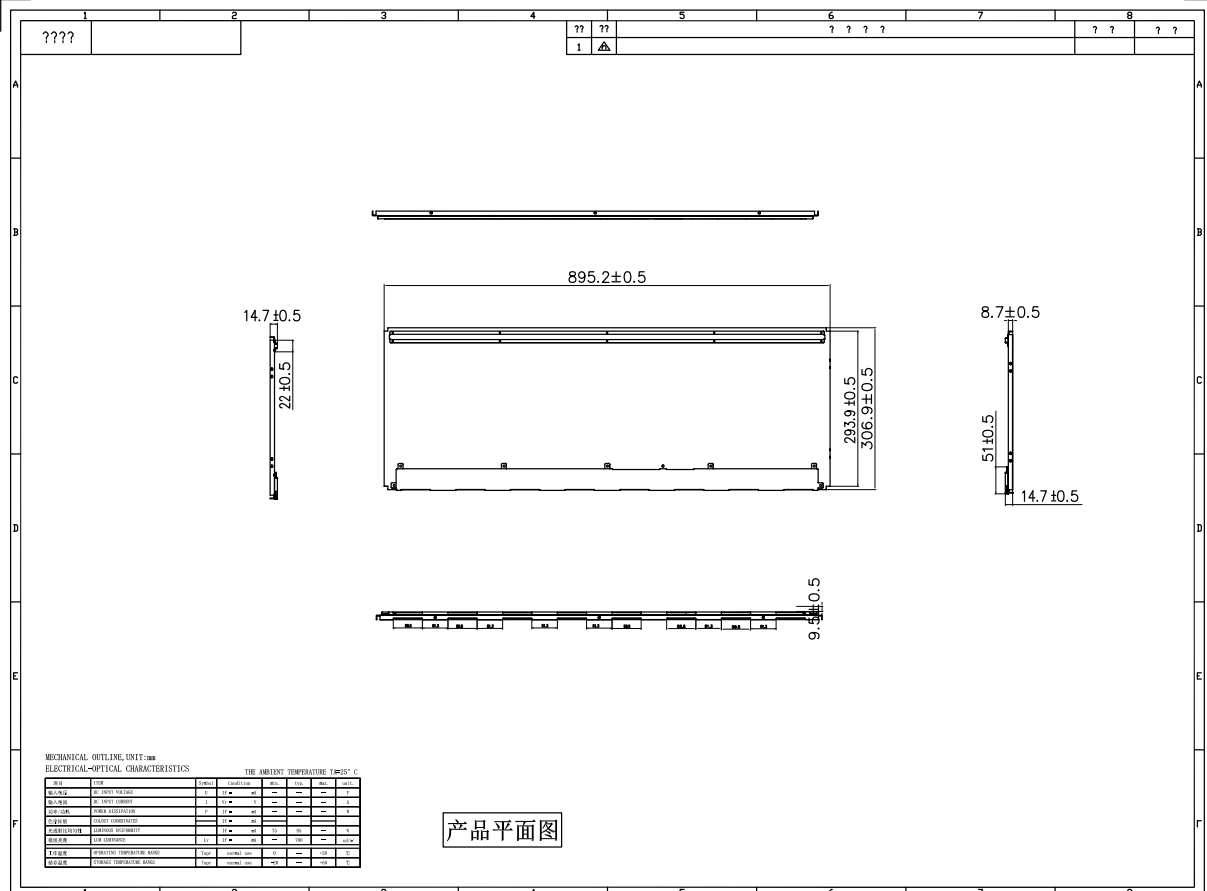

1. Outline drawing

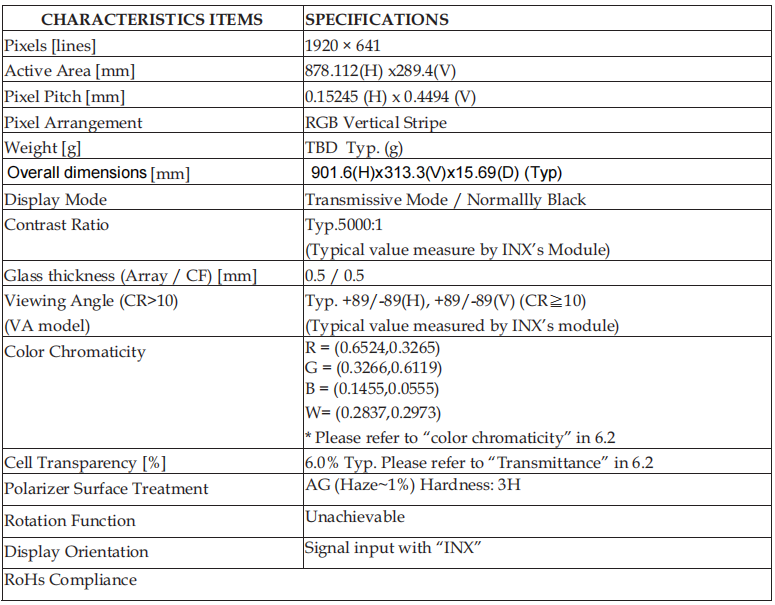

2.General Specifications

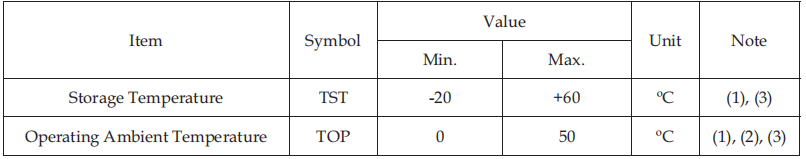

3.Operation Specifications

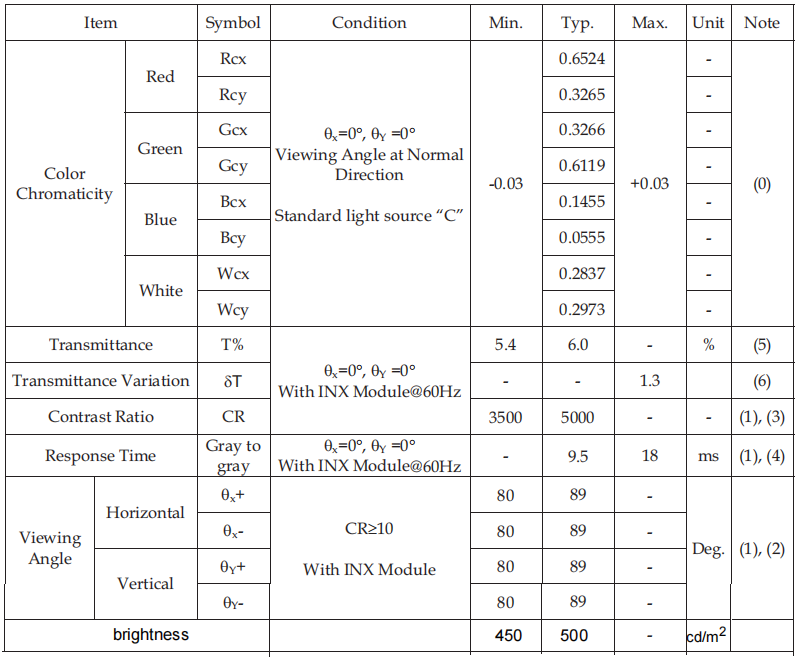

4. Optical Specifications
