Capacitive Touch Display Expert
37.8-inch WUXGA Bar-Type TFT LCD with GIP Technology (1920×387)
Detail Information
A 37.8-inch color active matrix LCD with integrated Source PCB and Gate in Panel (GIP) technology, using a-Si TFT as the active element. Supports WUXGA resolution (1920×387) with 8-bit gray scale for 16.7M colors. Transmissive normally black mode with 178° (H/V) ultra-wide viewing angle (CR>10). Features hard coating 3H with anti-glare treatment. Designed for LCD TV and PCTV applications where high brightness, wide viewing angle, and high color depth are essential.

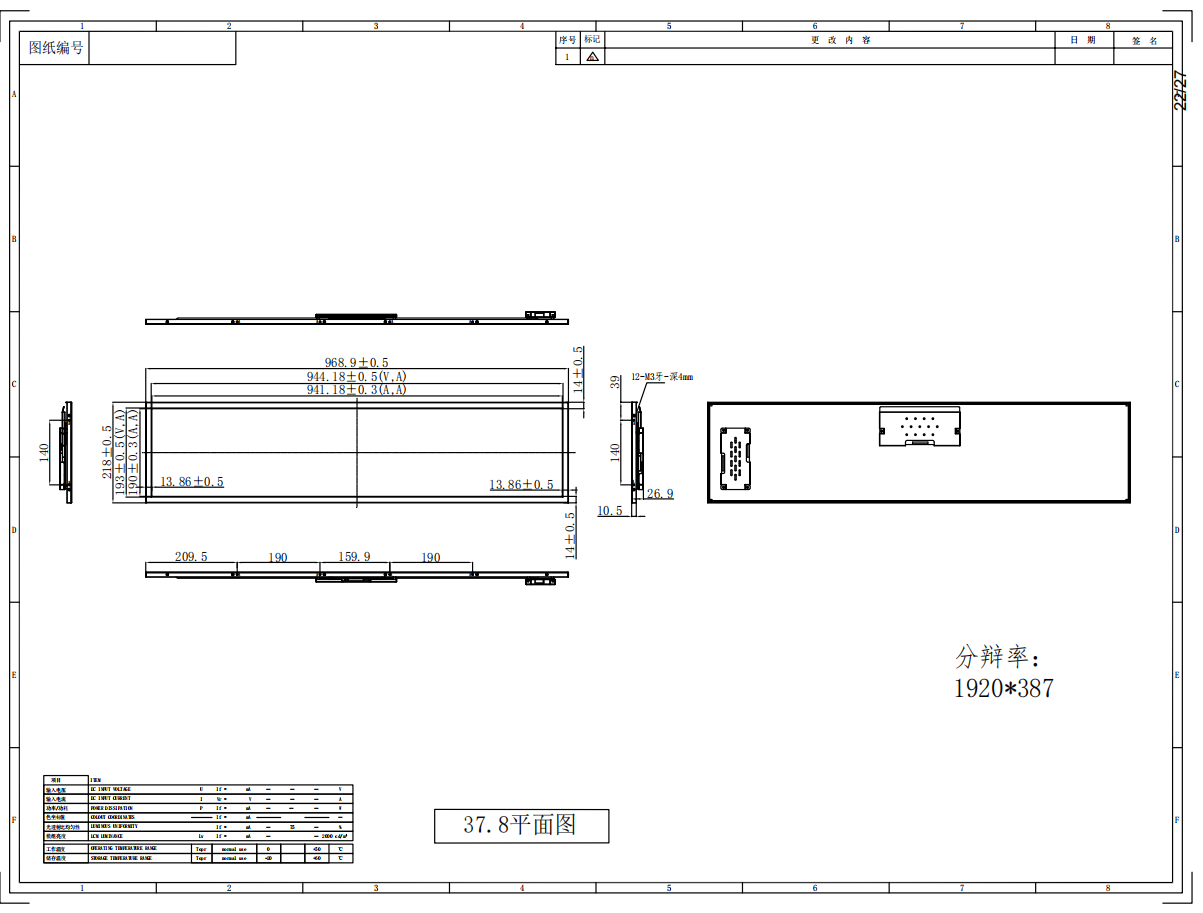

1. Outline drawing

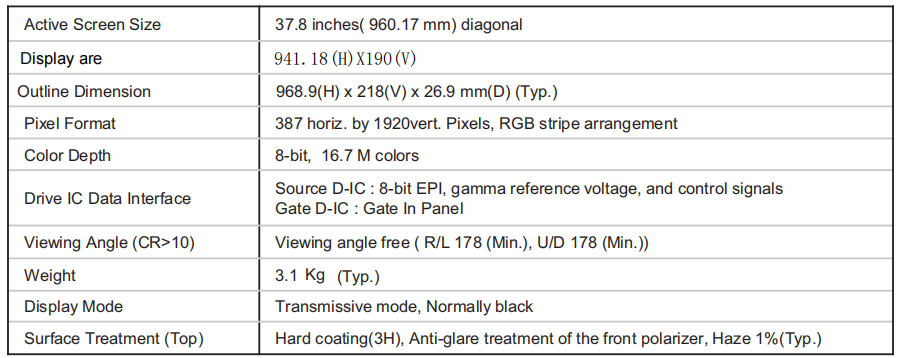

2.General Specifications

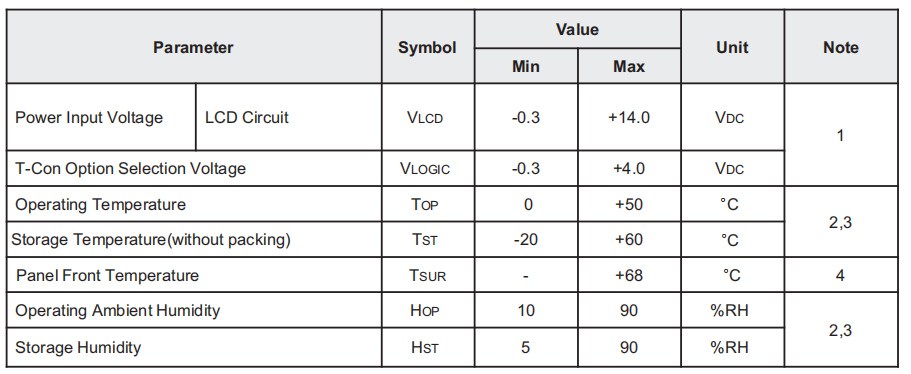

3.Operation Specifications

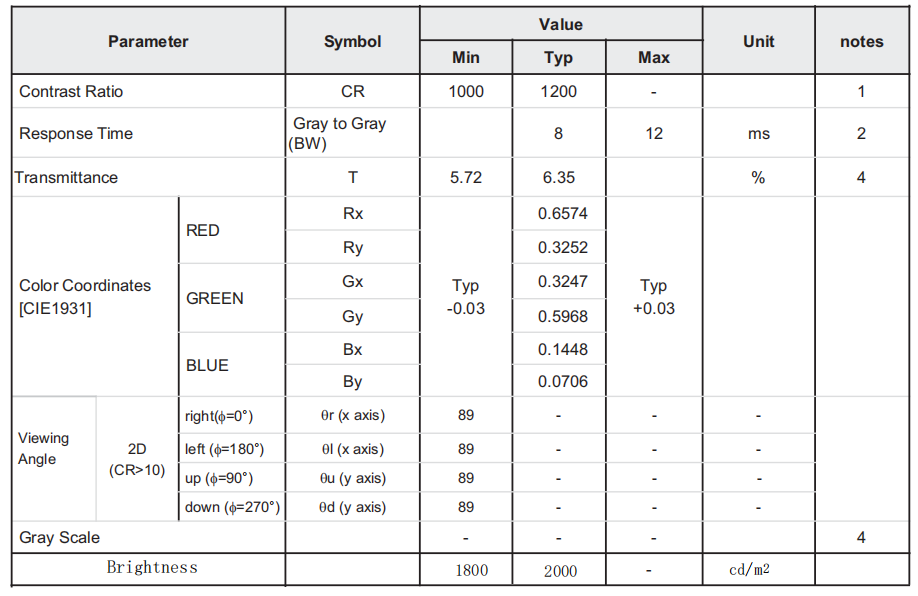

4. Optical Specifications
