42.8-inch QWUXGA Bar-Type TFT LCD with RGBW Sub-Pixels (1920×314)
Detail Information
A 42.8-inch color active matrix LCD with integrated Source PCB and Gate in Panel (GIP) technology. Supports QWUXGA resolution (1920×314) with 10-bit gray scale for over 1.07 billion colors. Features RGBW sub-pixel arrangement, 10-bit 8-lane V-by-One interface, 300 cd/m² brightness, 1100:1 contrast ratio, and 6ms (G to G) fast response time. Designed for LCD TV and PCTV applications demanding high brightness, super wide viewing angle, high color gamut, and high color depth.

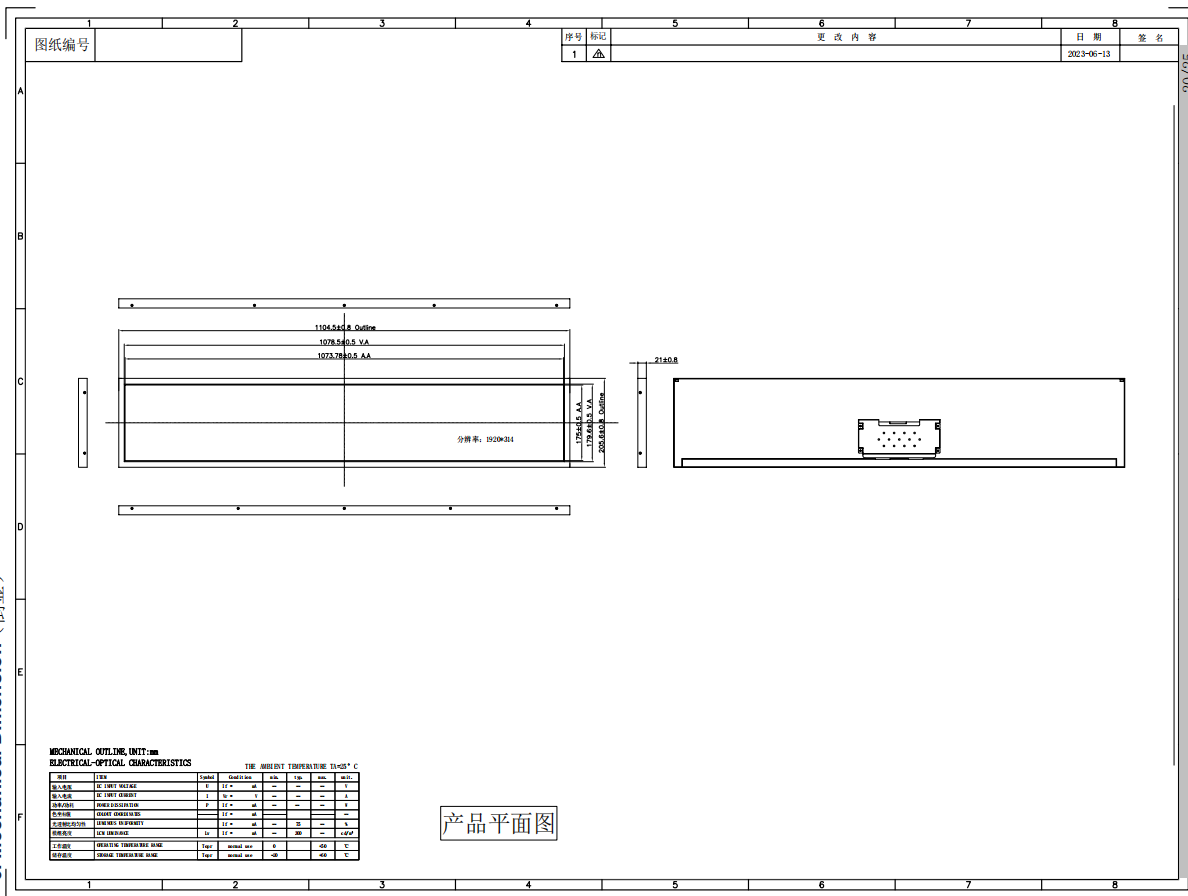

1. Outline drawing

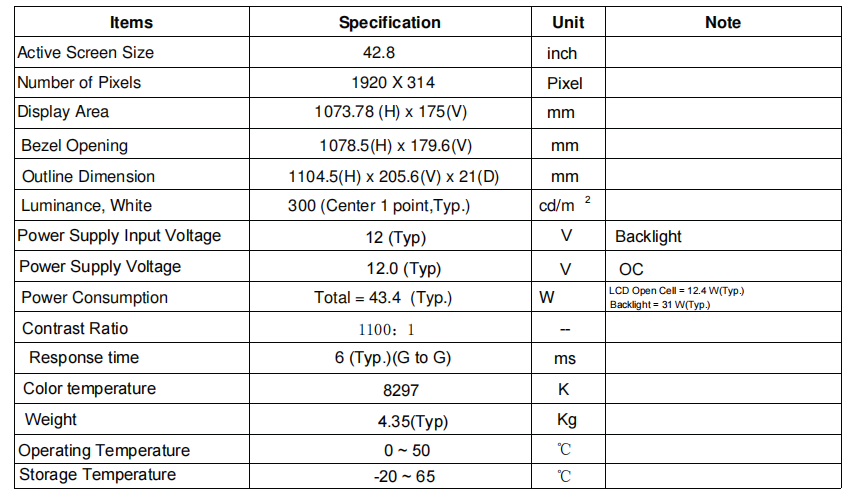

2.General Specifications

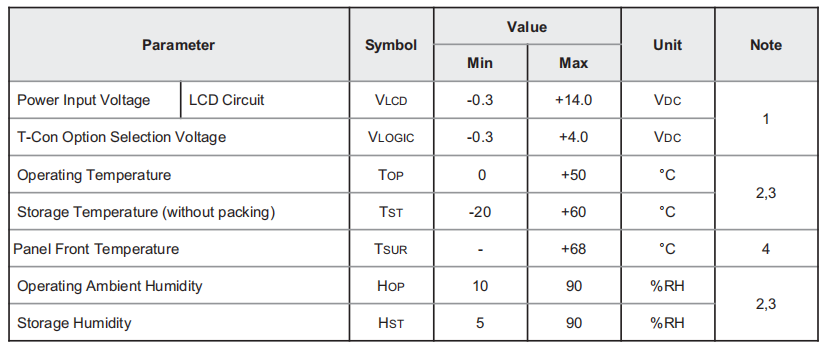

3.Operation Specifications

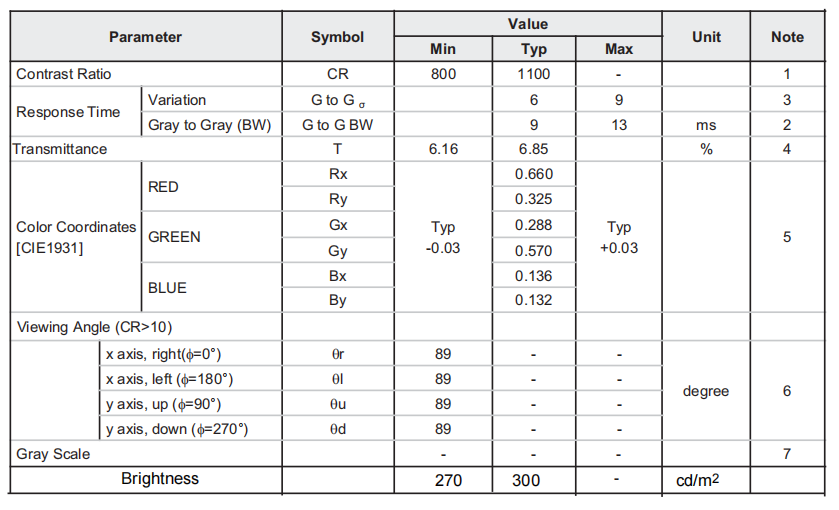

4. Optical Specifications
