36.6-inch Bar-Type TFT-LCD SKD Open Cell (1920×290)
Detail Information
A 36.6-inch color TFT-LCD SKD model open cell with a-Si TFT active matrix, supporting 1920×290 resolution with 8-bit gray scale and 8-lane LVDS interface for 16.7M color display. Designed for applications requiring high brightness, wide viewing angle, high color saturation, and high color depth. Features normally black mode, anti-glare 3H surface, and 5.5% transmittance with polarizer.

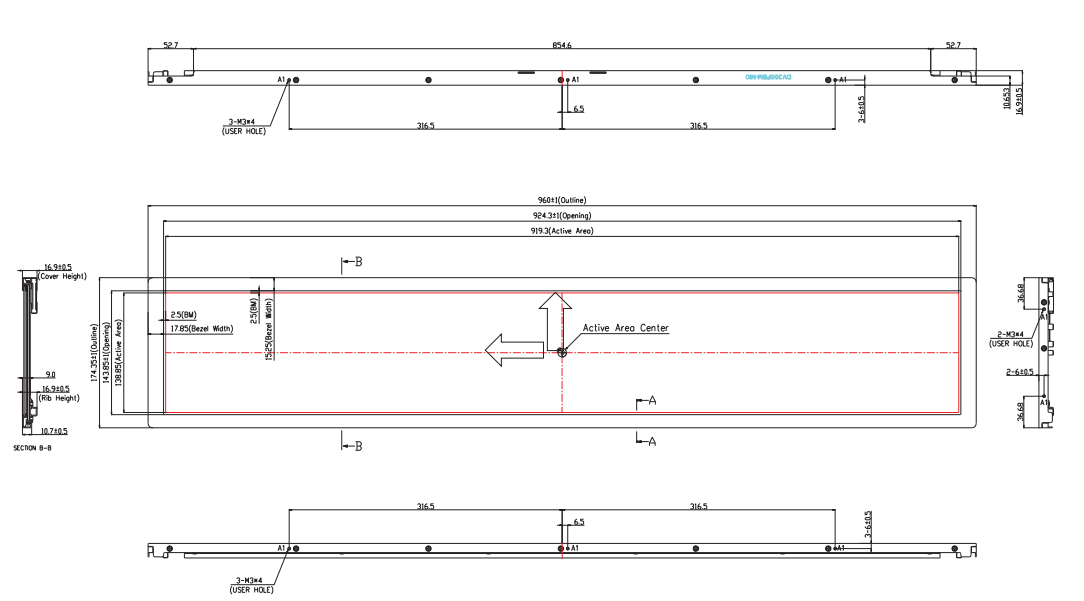

1. Outline drawing

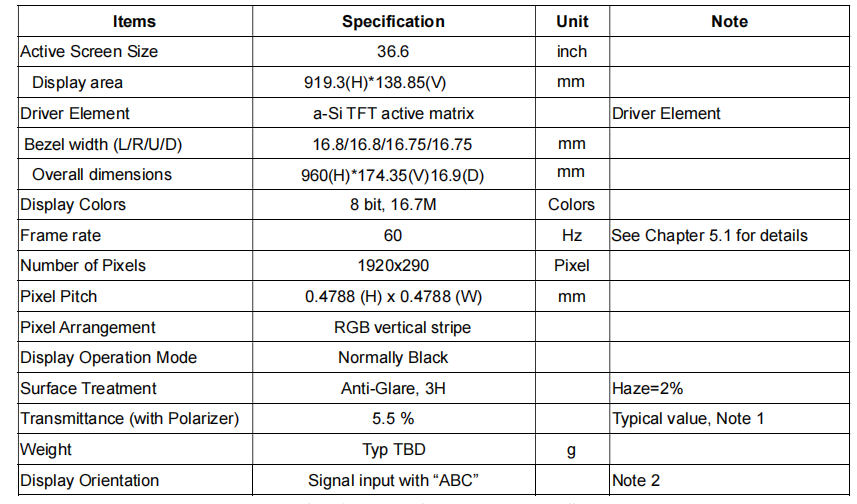

2.General Specifications

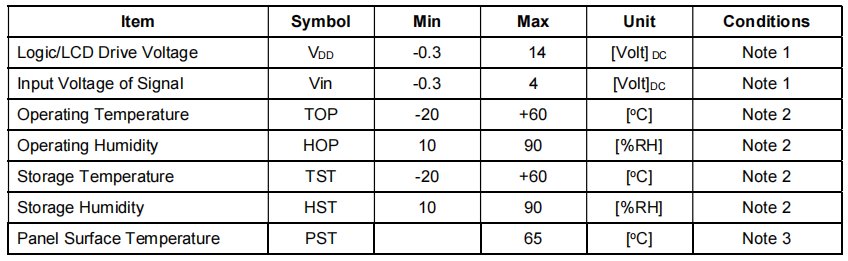

3.Operation Specifications

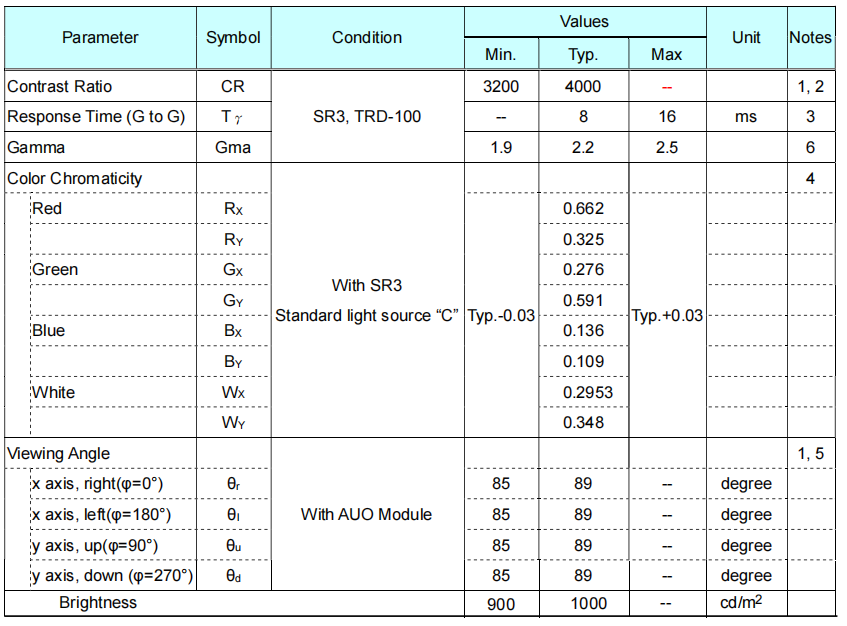

4. Optical Specifications
