43.0-inch WUXGA Bar-Type TFT LCD with RGBW Sub-Pixels (1920×360)
Detail Information
A 43.0-inch color active matrix LCD with integrated Source PCB and Gate in Panel (GIP) technology. Supports WUXGA resolution (1920×360) with 10-bit gray scale for over 1.07 billion colors. Features RGBW sub-pixel arrangement, 10-bit 2-port LVDS interface, 178° (H/V) ultra-wide viewing angle, anti-reflection front polarizer (reflectance <2%), and support for both landscape and portrait display orientations. Designed for LCD TV and PCTV applications requiring premium image quality.

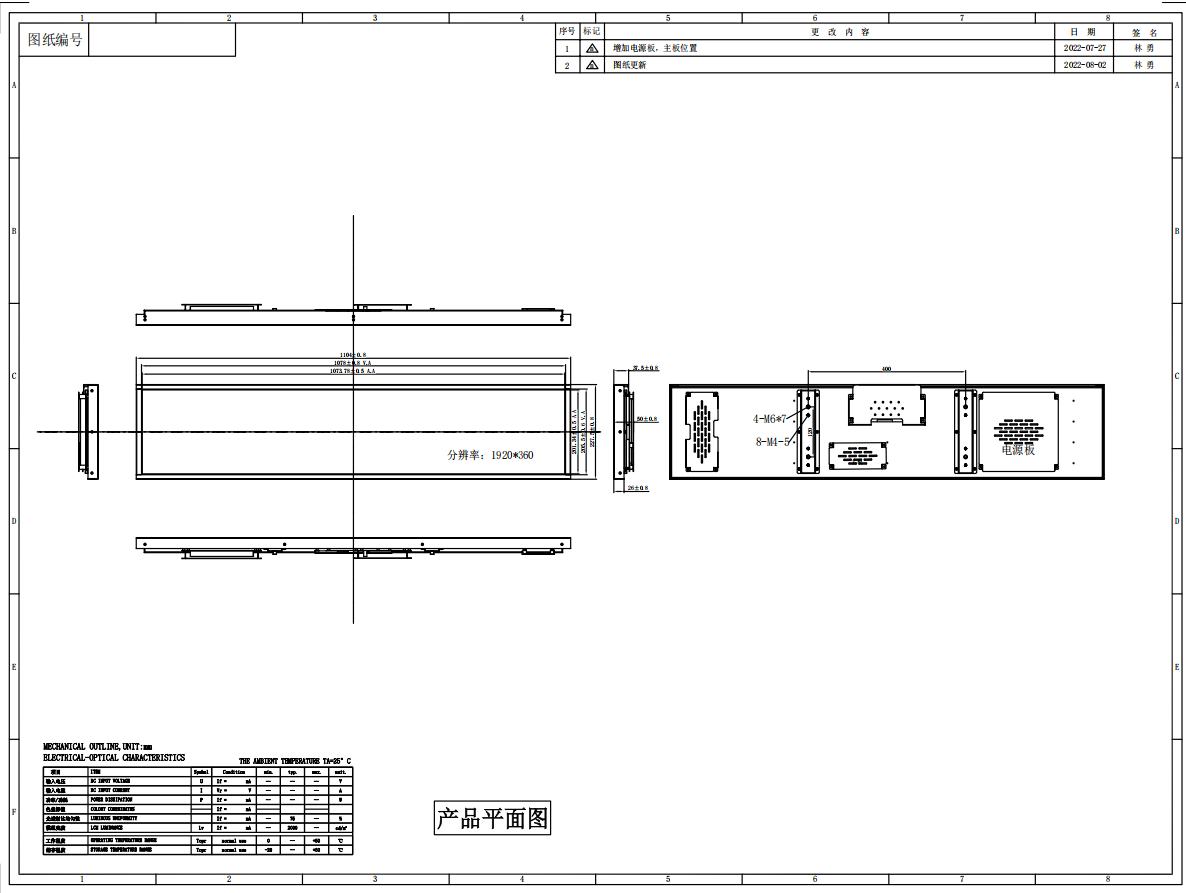

1. Outline drawing

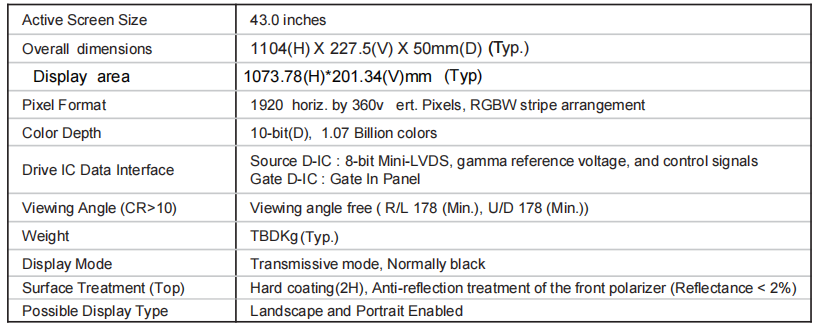

2.General Specifications

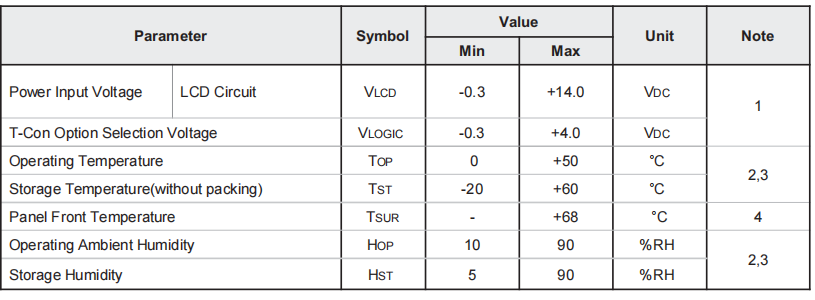

3.Operation Specifications

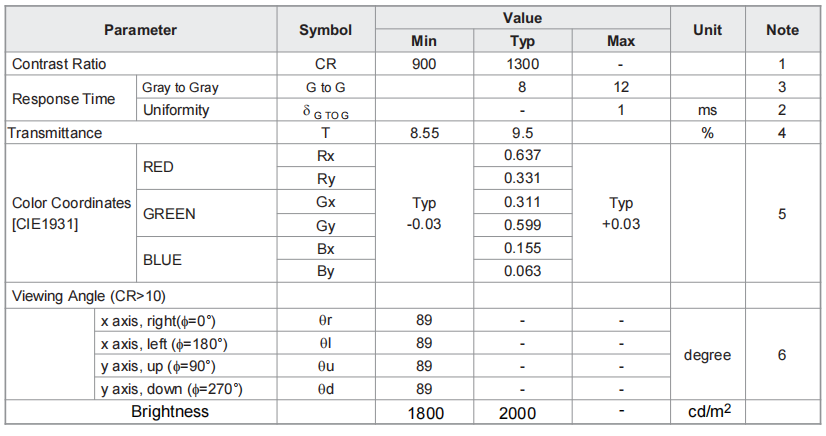

4. Optical Specifications
