37.6-inch FHD Bar-Type TFT LCD Open Cell with ADS Technology (1920×540)

Share
Categories	Bar Type LCD Display
Brand	JuTouch
Model	JT376FHI51R7L01

Contact Now

Detail Information

A 37.6-inch color active matrix TFT LCD open cell using a-Si TFT as active switching devices. Supports 1920×540 FHD resolution with 8-bit color depth for 16.7M colors. Features LVDS interface with 2 pixel/clock, high-speed response, low color shift, wide viewing angle, DE-only mode, and ADS technology for high display quality. RoHS compliant. Suitable for large-format bar-type digital signage and public information displays.

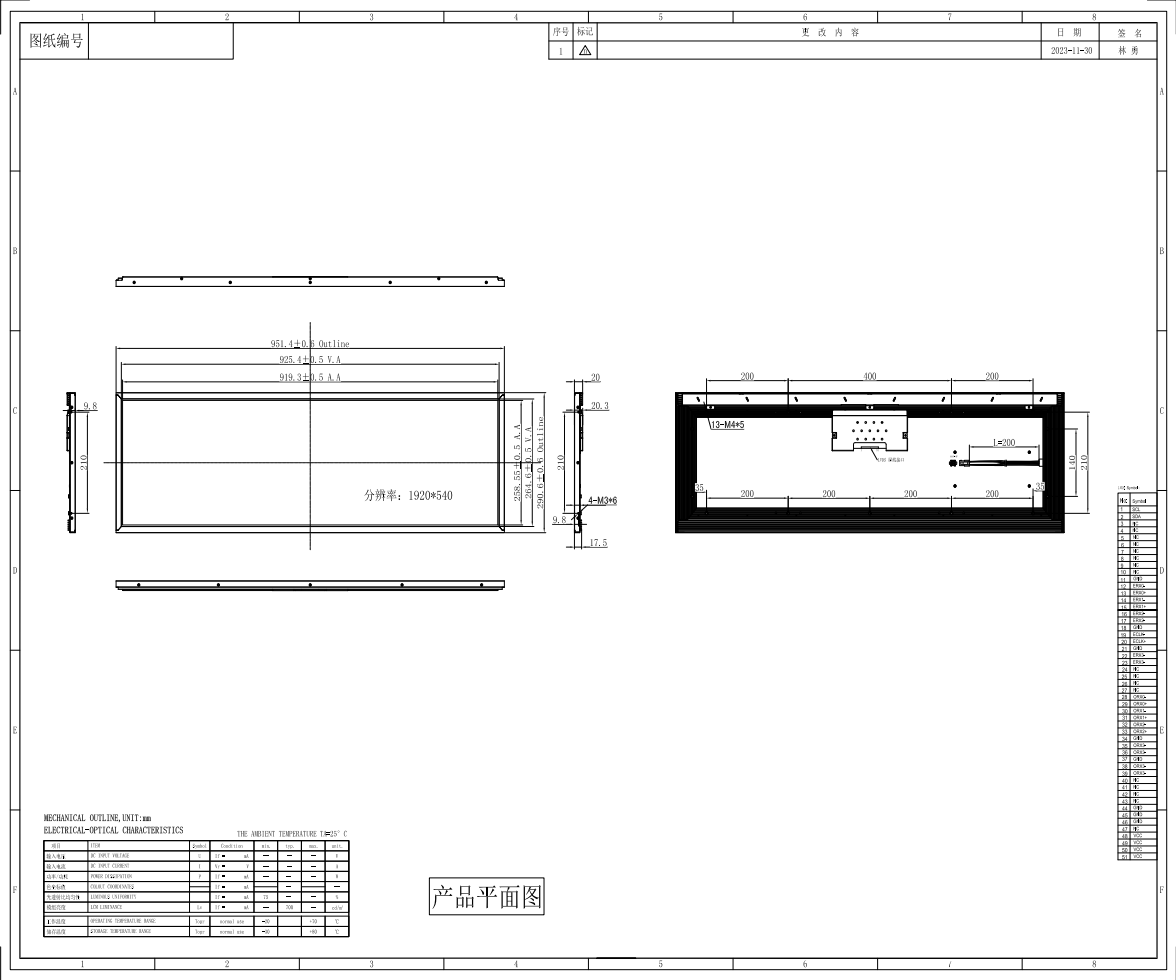

1. Outline drawing

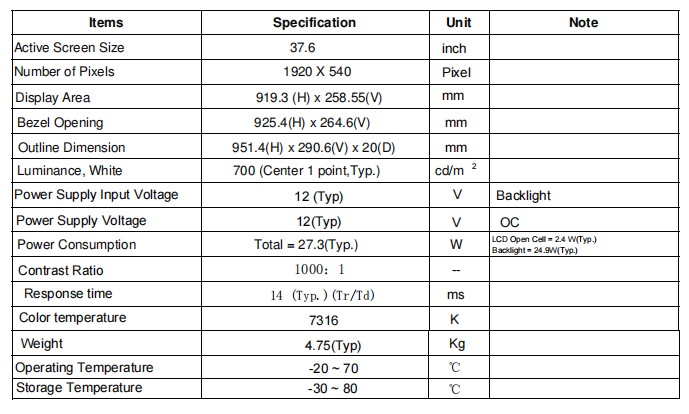

2.General Specifications

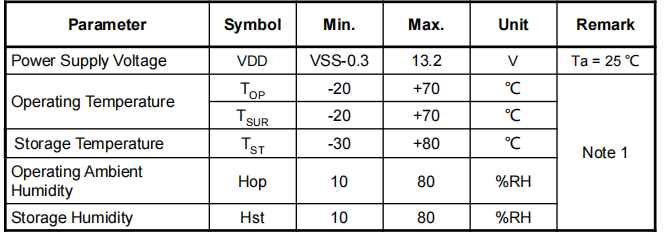

3.Operation Specifications

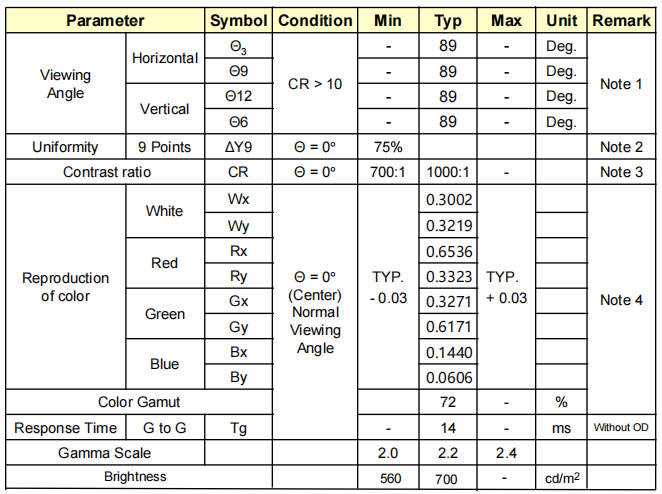

4. Optical Specifications

The JT376FHI51R7L01 is a 37.6-inch FHD bar-type TFT LCD open cell that leverages Advanced Dimension Switching (ADS) technology to deliver superior display quality for large-format digital signage and public information display applications. As an open cell product, this panel provides the LCD cell without integrated backlight or driver electronics, offering system integrators and display manufacturers maximum flexibility to customize the backlight design, driver electronics, and mechanical integration to meet specific application requirements. The ADS technology employed in this panel represents a significant advancement in LCD viewing angle and color stability performance, making it particularly suitable for professional display applications where image quality consistency across all viewing angles is a critical requirement.
