16.4‑inch HD (1366×230) TFT‑LCD open cell with LVDS interface
Detail Information
16.4‑inch HD (1366×230) TFT‑LCD open cell with LVDS interface (1 pixel/clock), 16.7M colours (6‑bit Hi‑FRC), normally black mode, DE‑only support. Typical brightness is 700 cd/m², contrast ratio is 1000:1, and viewing angles are 85° in all directions (CR>10). Designed for desktop monitors, workstations, control system terminals, and process controllers. RoHS and halogen‑free compliant.

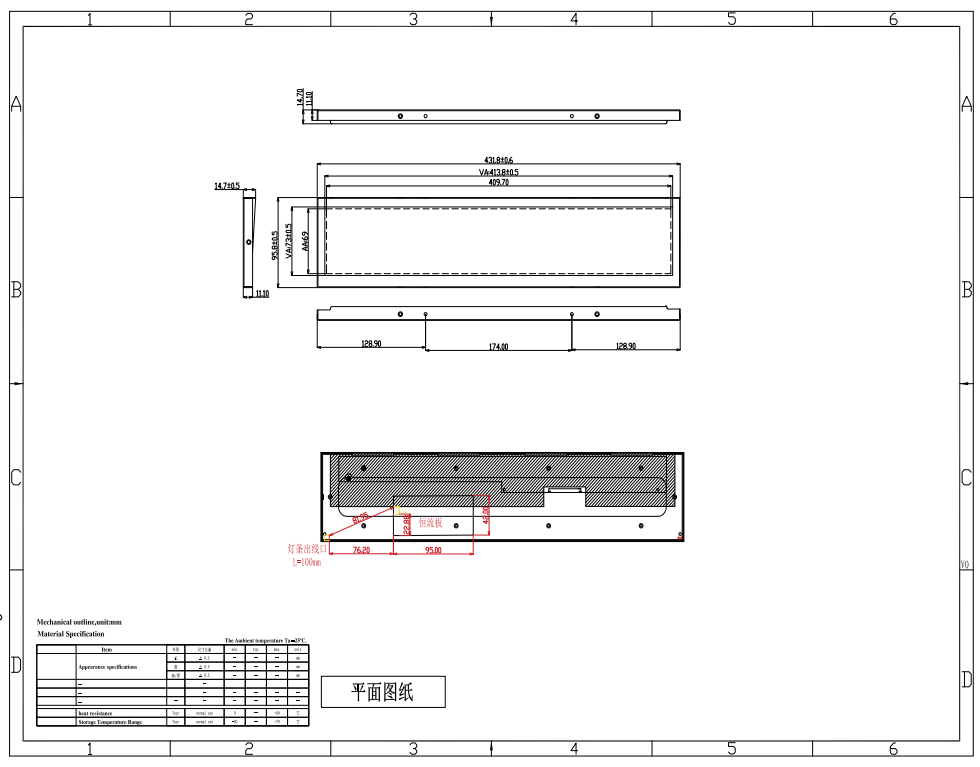

1. Outline drawing

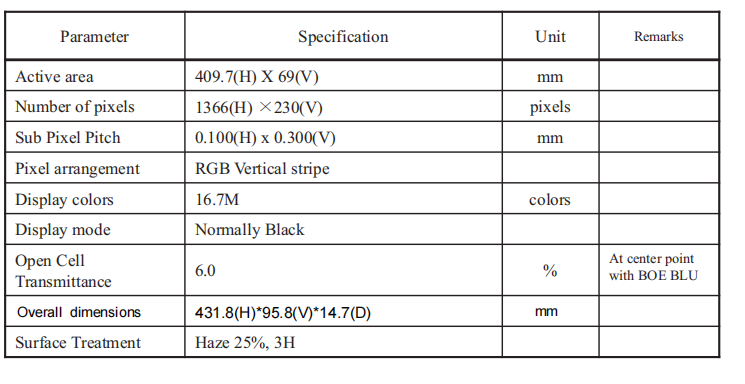

2.General Specifications

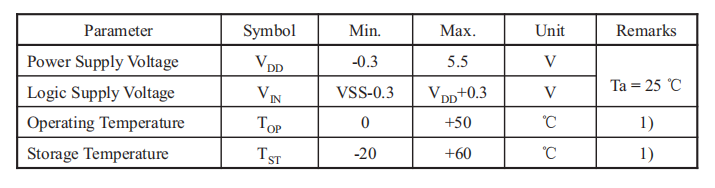

3.Operation Specifications

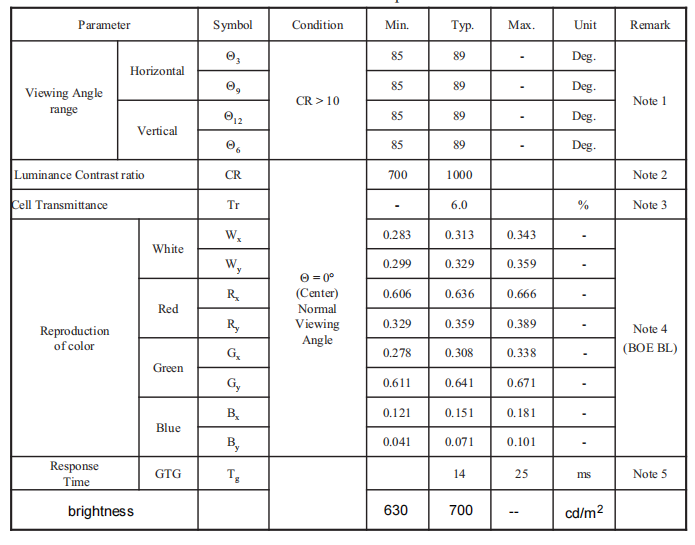

4. Optical Specifications
