Capacitive Touch Display Expert
16.7‑inch FHD (1920×540) TFT‑LCD with LVDS interface
Detail Information
16.7‑inch FHD (1920×540) TFT‑LCD open cell with LVDS interface (2 pixel/clock), 8‑bit colour depth supporting 16.7M colours, normally black mode, and DE‑only support. Typical brightness is 400 cd/m², contrast ratio is 1000:1, and viewing angles are 89° (CR>10). HADS technology ensures low colour shift and wide viewing angles. RoHS compliant.

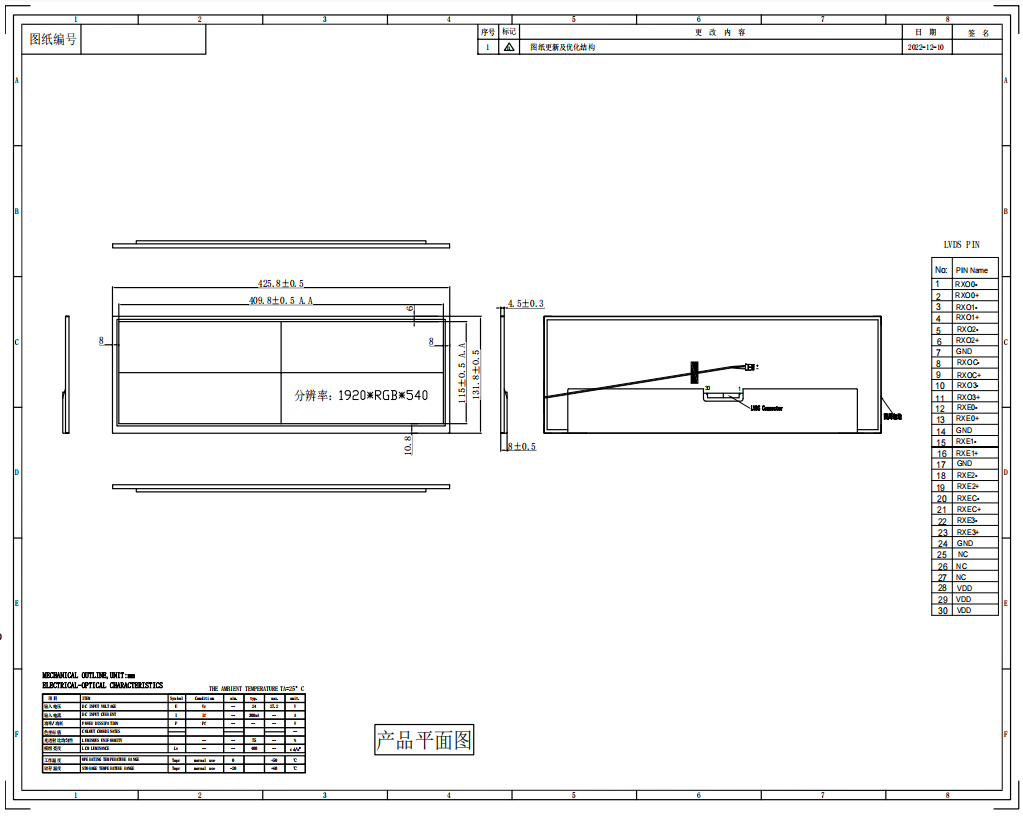

1. Outline drawing

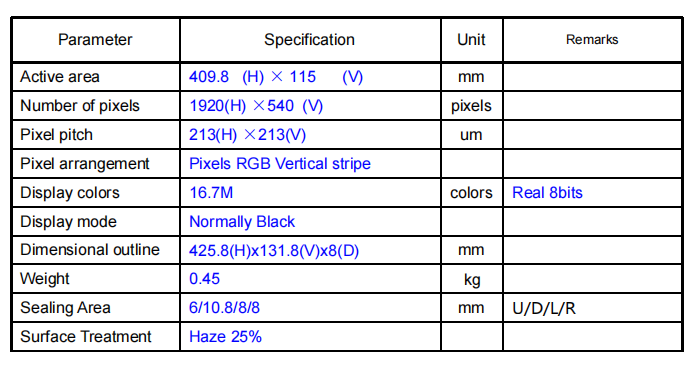

2.General Specifications

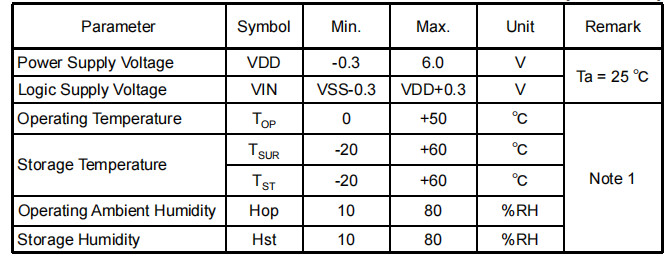

3.Operation Specifications

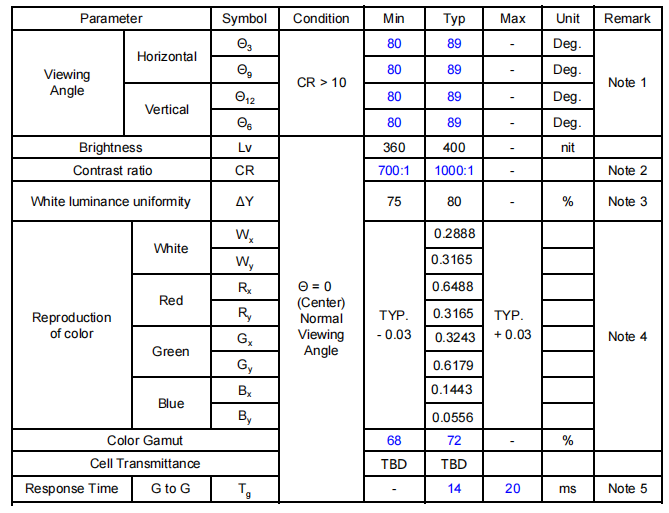

4. Optical Specifications
