16.8‑inch FHD (1920×540) TFT‑LCD with LVDS interface
Detail Information
16.8‑inch FHD (1920×540) TFT‑LCD open cell with LVDS interface (2 pixel/clock), 8‑bit colour depth supporting 16.7M colours, normally black mode, and DE‑only support. Typical brightness is 400 cd/m², contrast ratio is 1000:1, and viewing angles are 89° (CR>10). HADS technology ensures low colour shift and wide viewing angles. Designed for commercial digital displays and control system terminals. RoHS compliant.

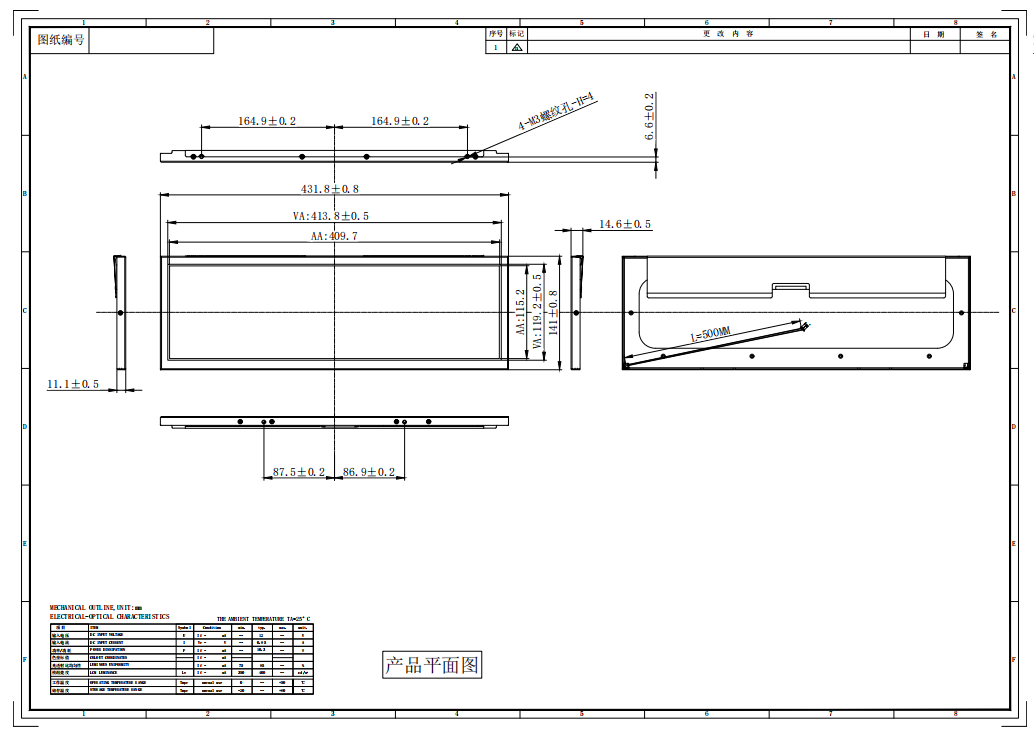

1. Outline drawing

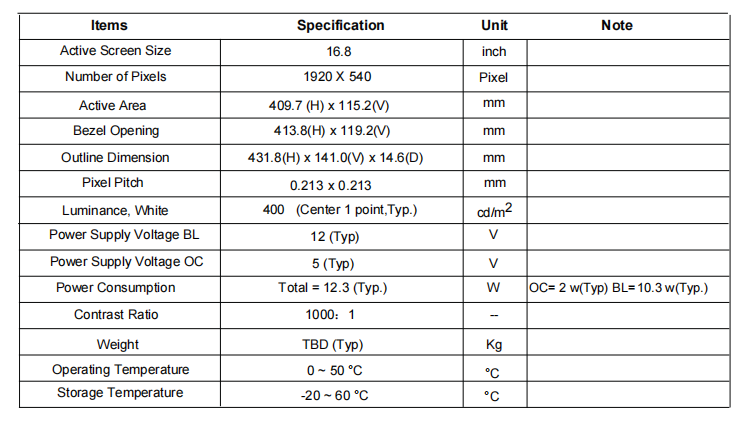

2.General Specifications

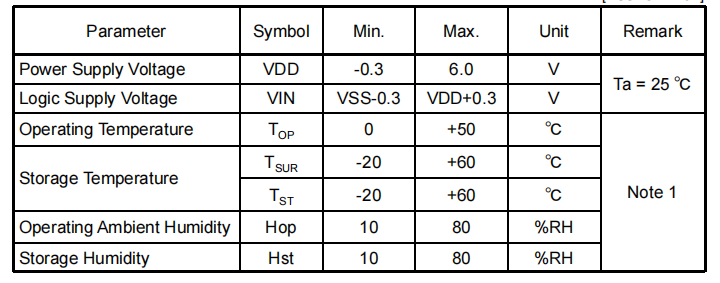

3.Operation Specifications

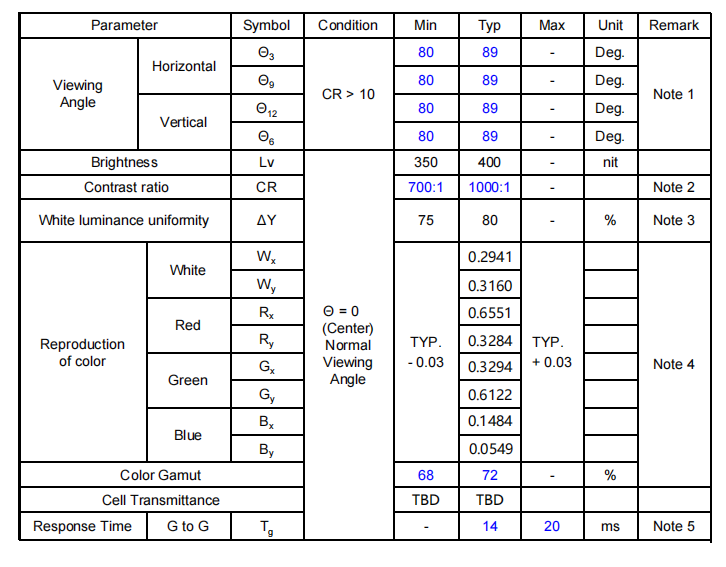

4. Optical Specifications
