16.8‑inch HD (1366×384) TFT‑LCD open cell with LVDS interface
Detail Information
16.8‑inch HD (1366×384) TFT‑LCD open cell with LVDS interface (1 pixel/clock), 16.7M colours (6‑bit Hi‑FRC), normally black mode, DE‑only support. Typical brightness is 700 cd/m², contrast ratio is 1000:1, and viewing angles (CR>10) are 85° horizontal / 85° vertical. Fast response time with rising 1.5ms and falling 3.5ms. Cell transmittance is 5.6%. Designed for desktop monitors, workstations, stand‑alone displays, control system terminals, and process controllers. RoHS and halogen‑free compliant.

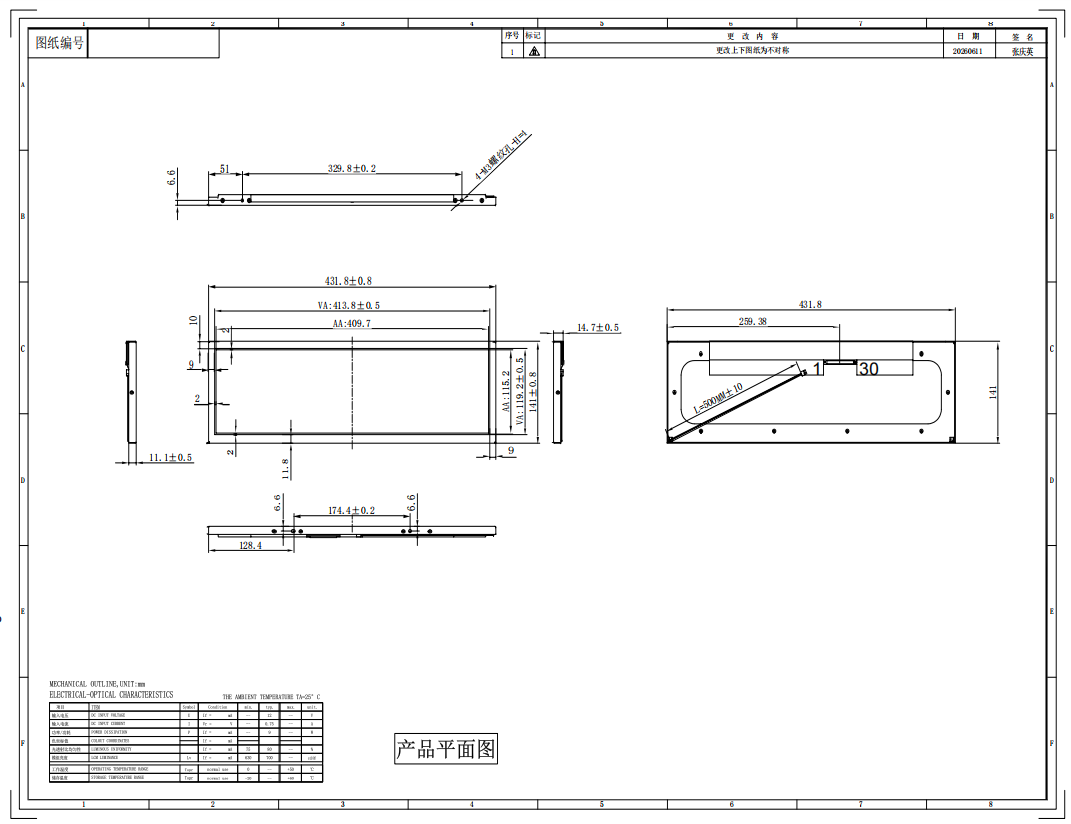

1. Outline drawing

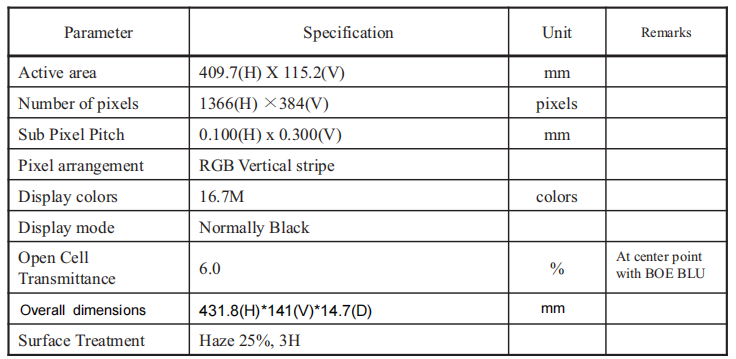

2.General Specifications

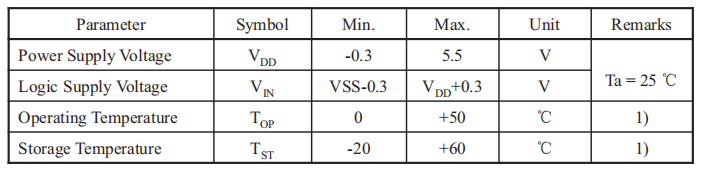

3.Operation Specifications

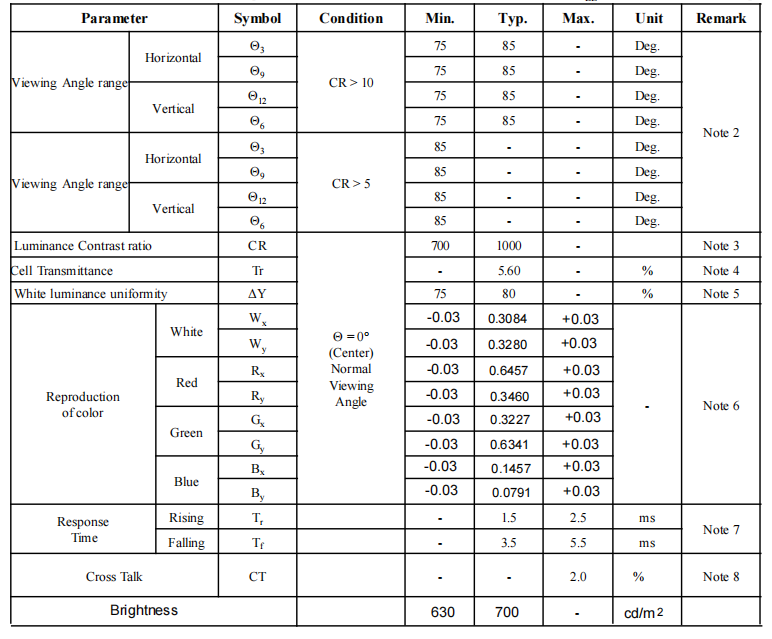

4. Optical Specifications
