17‑inch SXGA (1280×658) TFT‑LCD module with LVDS interface
Detail Information
17‑inch SXGA (1280×658) TFT‑LCD module with LVDS interface (2 pixel/clock), 16.7M colours (6‑bit Hi‑FRC), normally black mode, DE‑only support. Typical brightness is 700 cd/m², contrast ratio is 1000:1, and viewing angles are 85° in all directions (CR>10). Features edge‑type LED backlight with 72% NTSC colour gamut. Designed for desktop monitors, workstations, stand‑alone displays, control system terminals, and process controllers. RoHS, halogen‑free, and E/S 7.0 compliant.

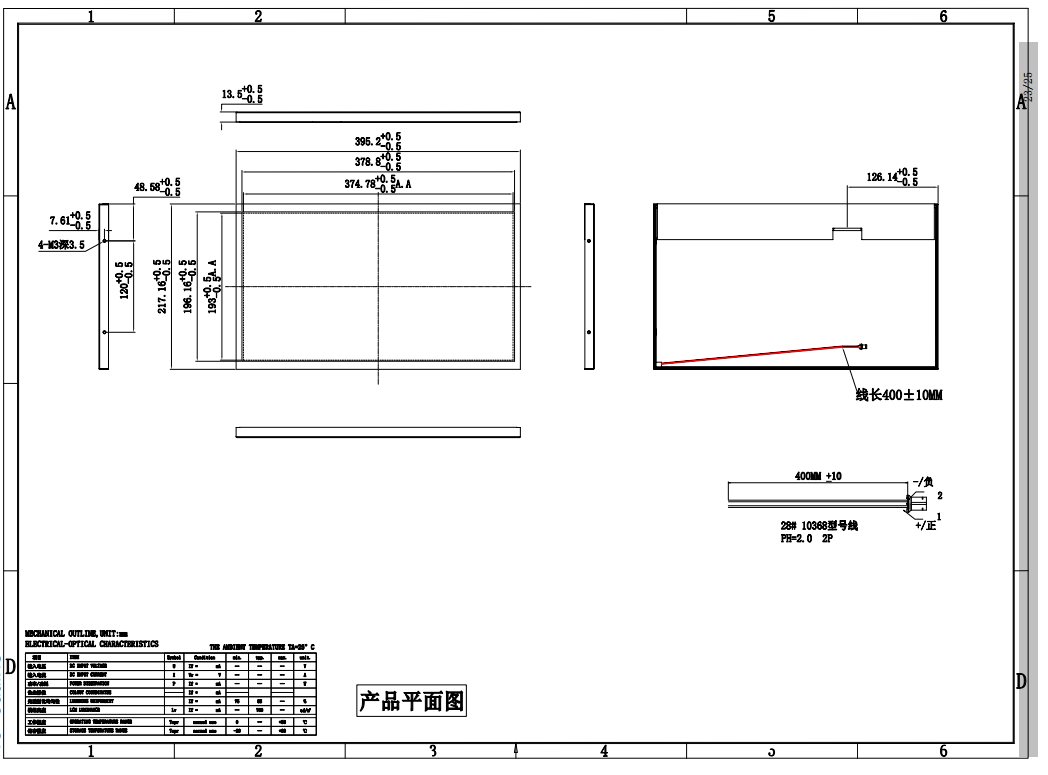

1. Outline drawing

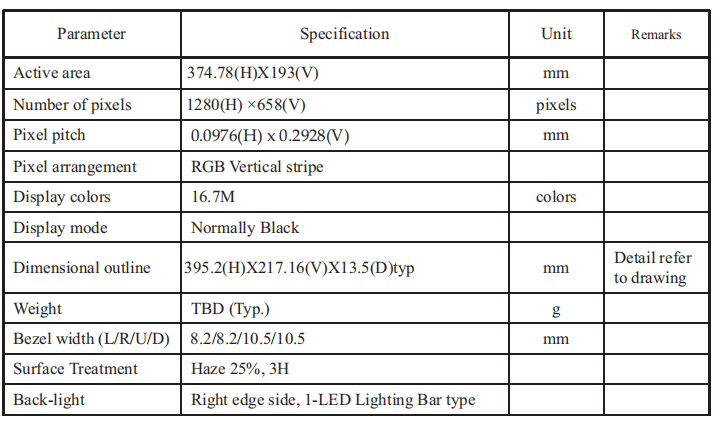

2.General Specifications

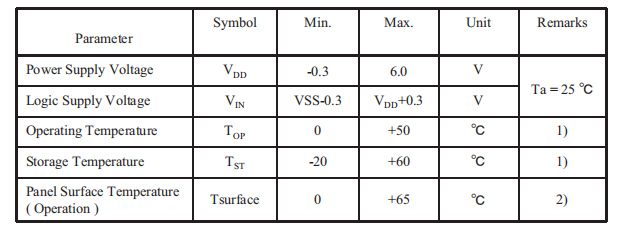

3.Operation Specifications

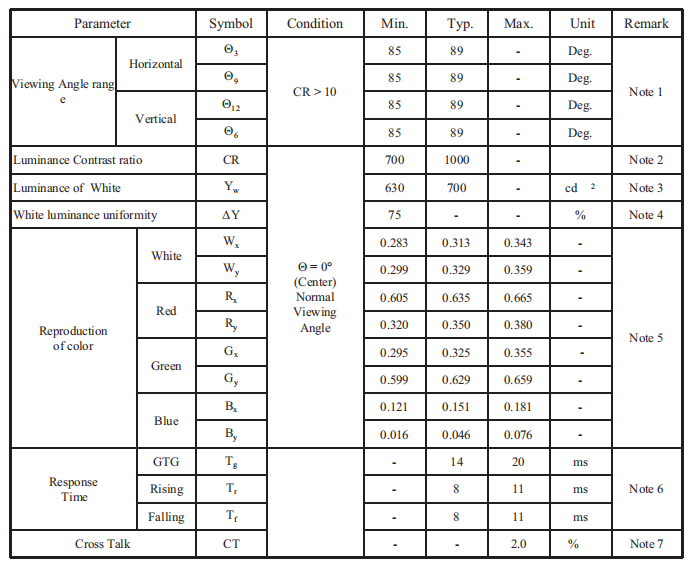

4. Optical Specifications
