Capacitive Touch Display Expert
17.2‑inch FHD (1920×714) TFT‑LCD open cell with LVDS interface
Detail Information
17.2‑inch FHD (1920×714) TFT‑LCD open cell with LVDS interface (2 pixel/clock), 8‑bit colour depth supporting 16.7M colours, normally black mode, and DE‑only support. Typical brightness is 500 cd/m², contrast ratio is 1000:1, response time is 14 ms (G to G), and viewing angles are 89° (CR>10). HADS technology ensures low colour shift and wide viewing angles. RoHS compliant.

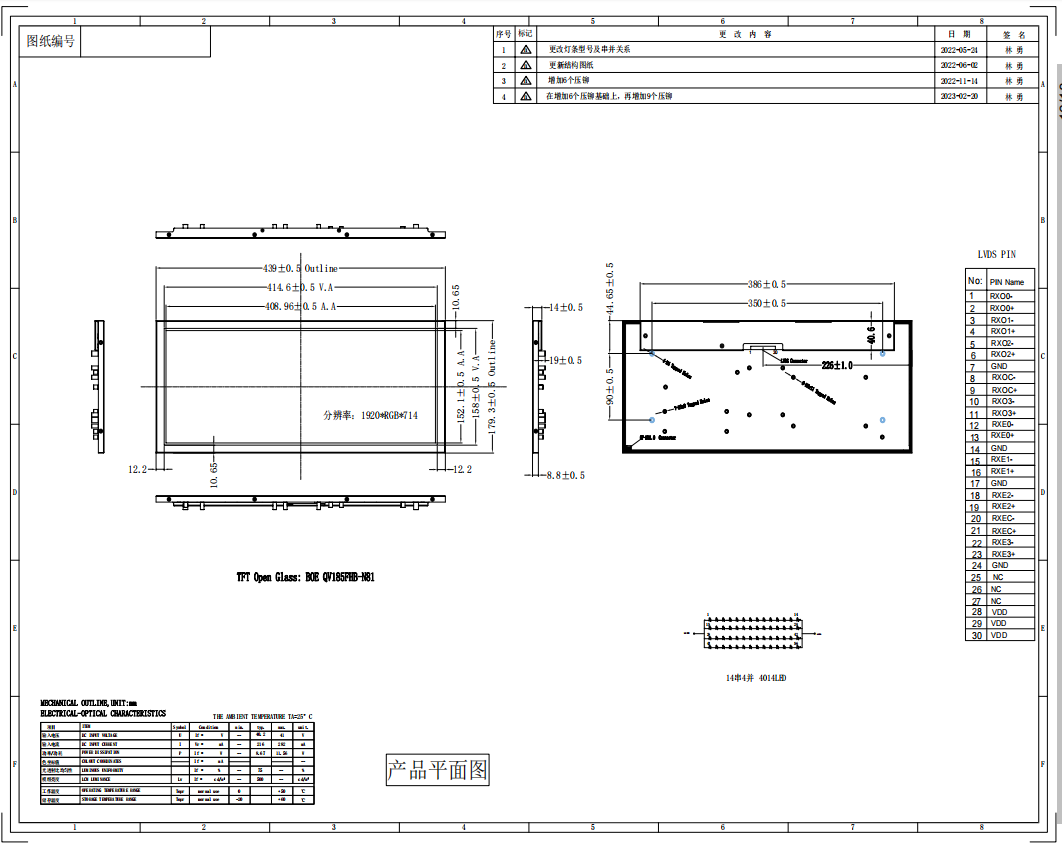

1. Outline drawing

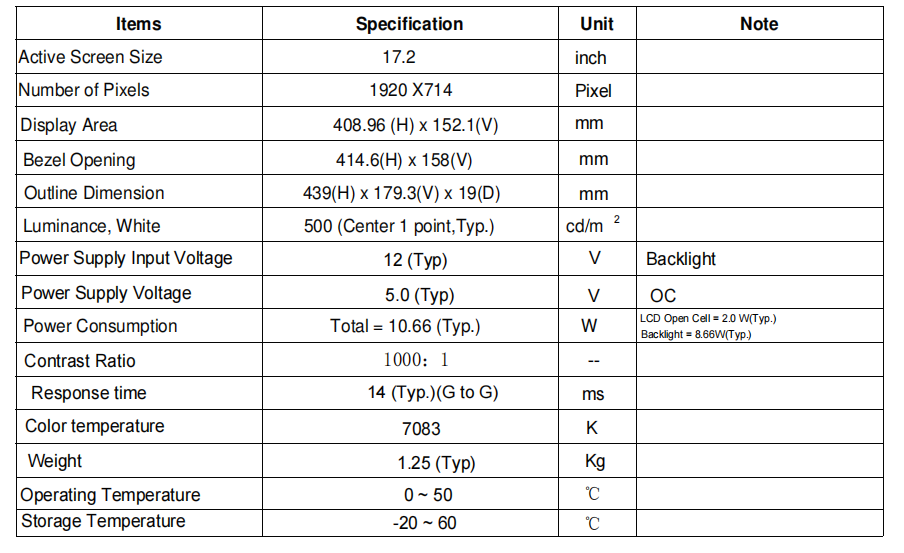

2.General Specifications

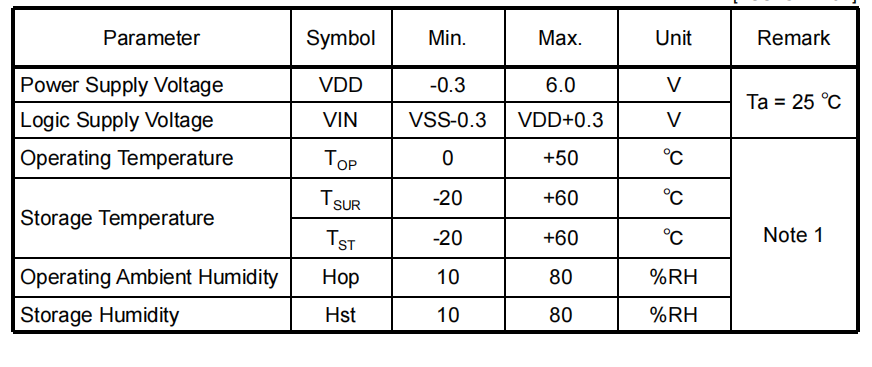

3.Operation Specifications

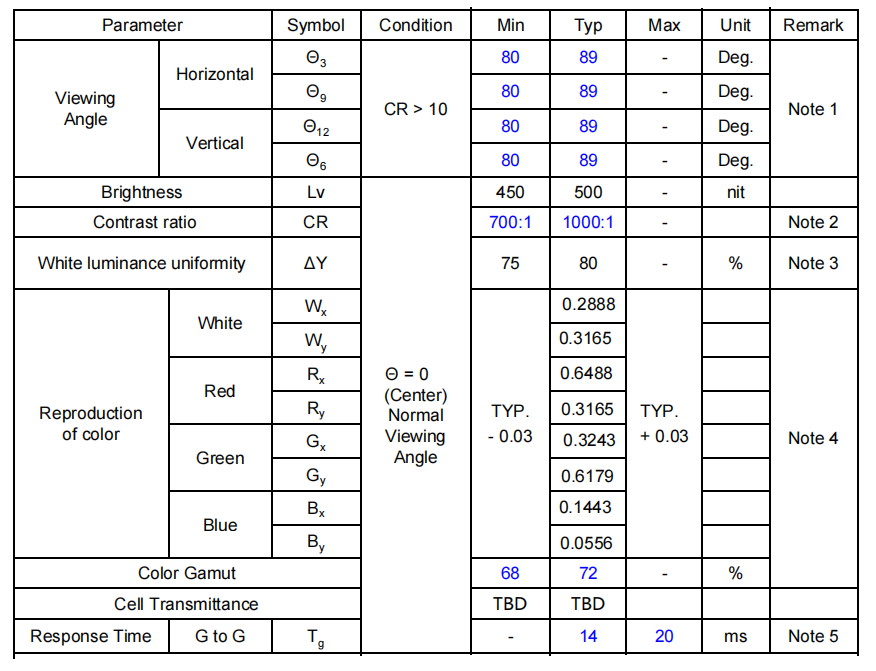

4. Optical Specifications
