Capacitive Touch Display Expert
17.2‑inch HD (1366×510) TFT‑LCD open cell with LVDS interface
Detail Information
17.2‑inch HD (1366×510) TFT‑LCD open cell with LVDS interface (1 pixel/clock), 16.7M colours (6‑bit Hi‑FRC), normally black mode, DE‑only support. Typical brightness is 500 cd/m², contrast ratio is 1000:1, and viewing angles (CR>10) are 75° in all directions. Fast response time with rising 1.5ms and falling 3.5ms. Cell transmittance is 5.6%. RoHS compliant.

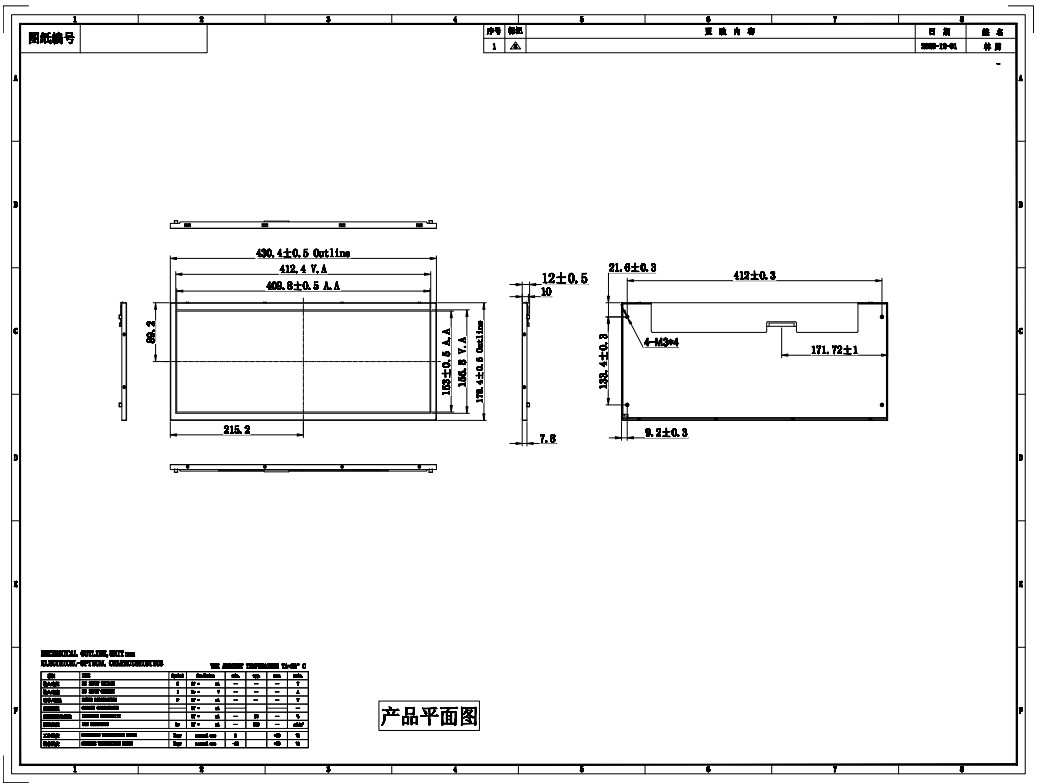

1. Outline drawing

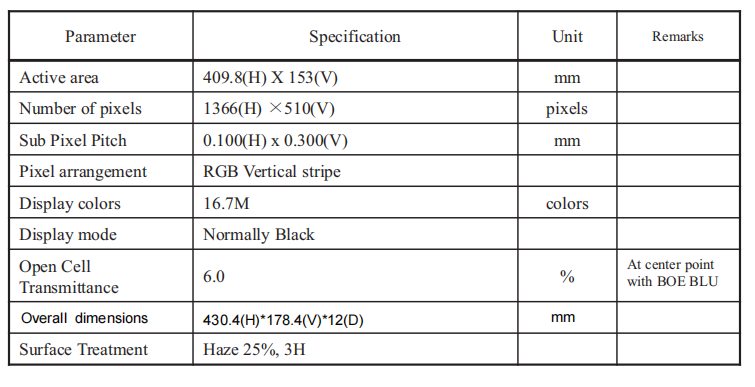

2.General Specifications

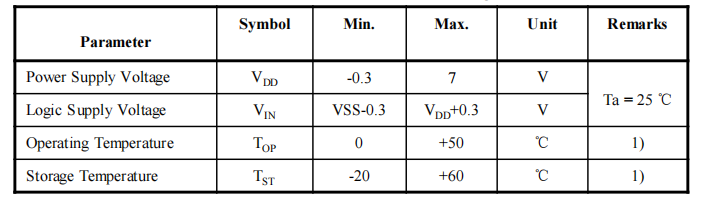

3.Operation Specifications

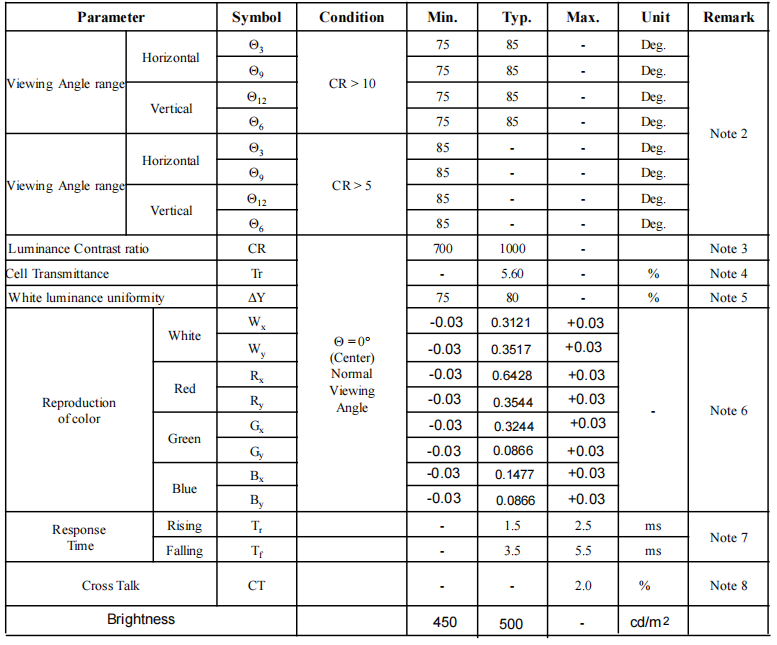

4. Optical Specifications
