19.2‑inch color active‑matrix TFT‑LCD module

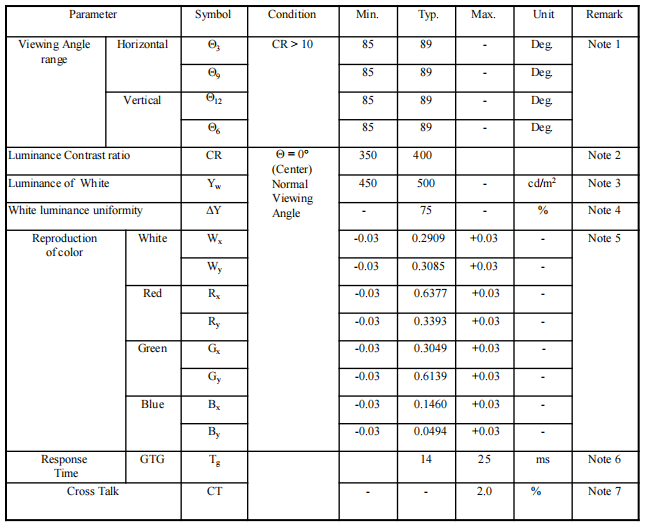

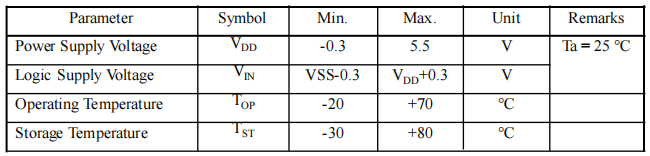

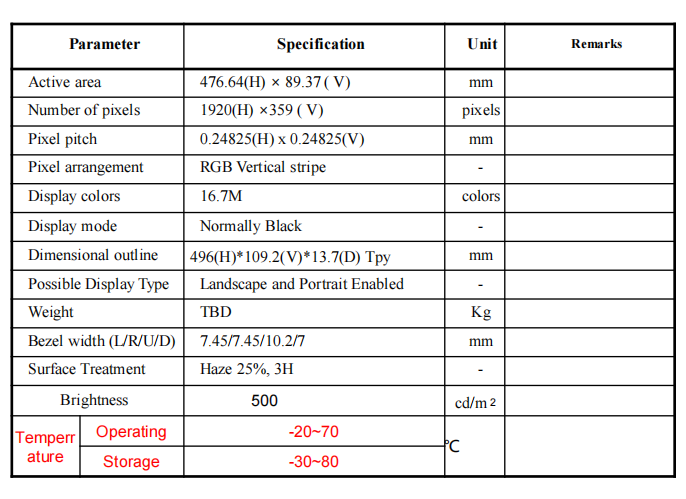

This is a 19.2‑inch color active‑matrix TFT‑LCD module with amorphous silicon TFTs. It features FHD resolution (1920 × 359 pixels), LVDS interface (2 pixel/clock), 6‑bit + Hi‑FRC color depth (16.7M colors), edge‑type LED backlight (one light bar), high luminance (500 cd/m²), high contrast ratio, wide viewing angle (≥85° in all directions), low reflection, and DE‑only mode. The module supports both landscape and portrait orientations, is RoHS/halogen‑free, and includes gamma correction. Operating temperature range: –20 °C to +70 °C; storage: –30 °C to +80 °C.
