Capacitive Touch Display Expert
19.4‑inch FHD (1920×510) TFT‑LCD module with dual‑channel LVDS interface
Detail Information
19.4‑inch FHD (1920×510) TFT‑LCD module with dual‑channel LVDS interface, 8‑bit colour depth supporting 16.7M colours, VA‑mode normally black display. Typical white luminance is 1000 cd/m², contrast ratio is 3000:1, response time is 18 ms (on/off), and viewing angles (CR>10) are 89° in all directions. Surface treatment: Anti‑Glare, 3H. RoHS and TCO 7.0 compliant.

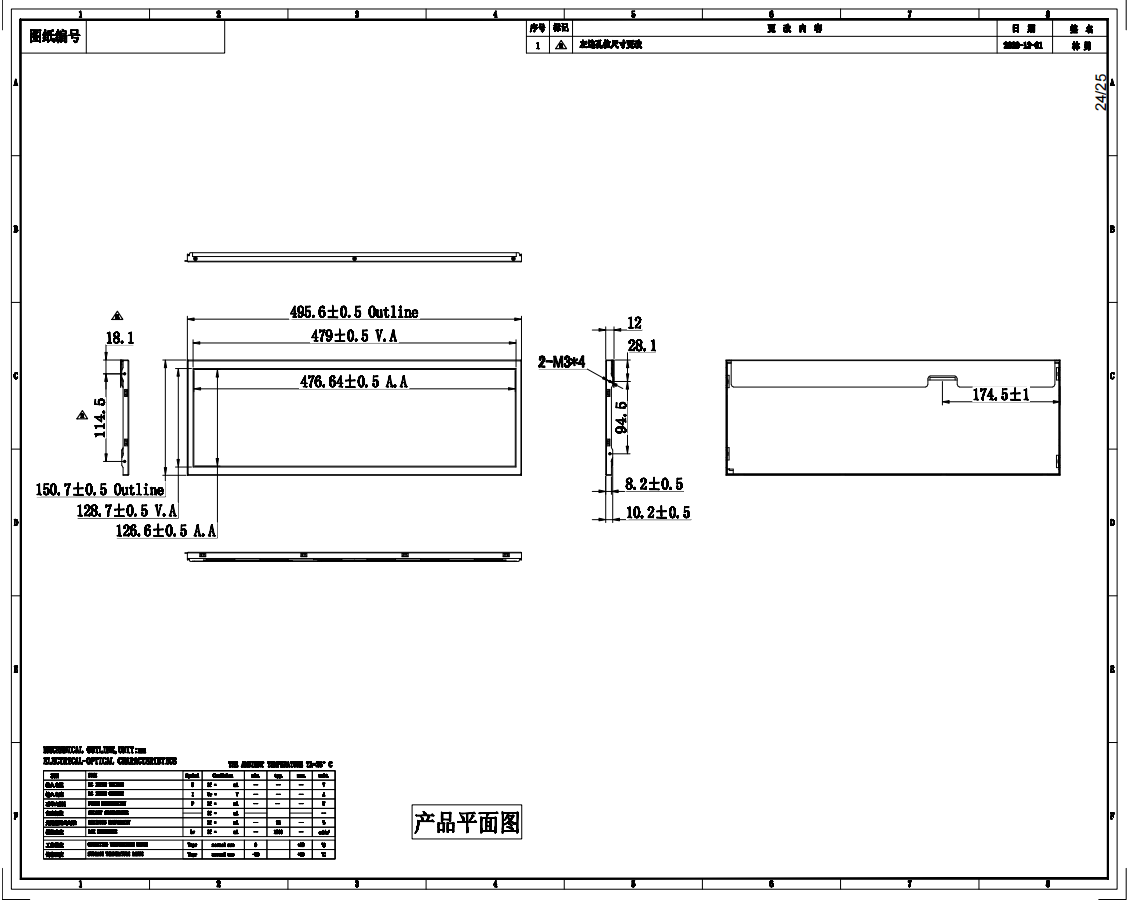

1. Outline drawing

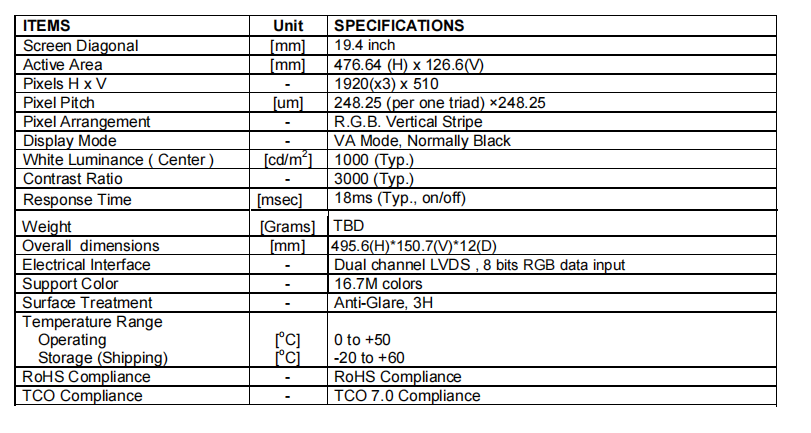

2.General Specifications

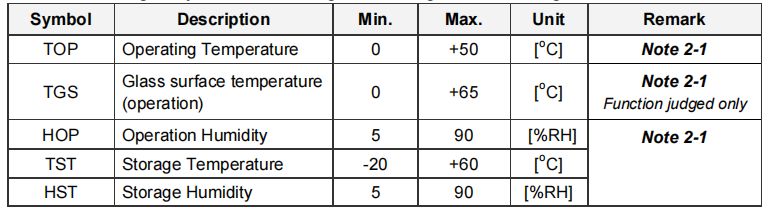

3.Operation Specifications

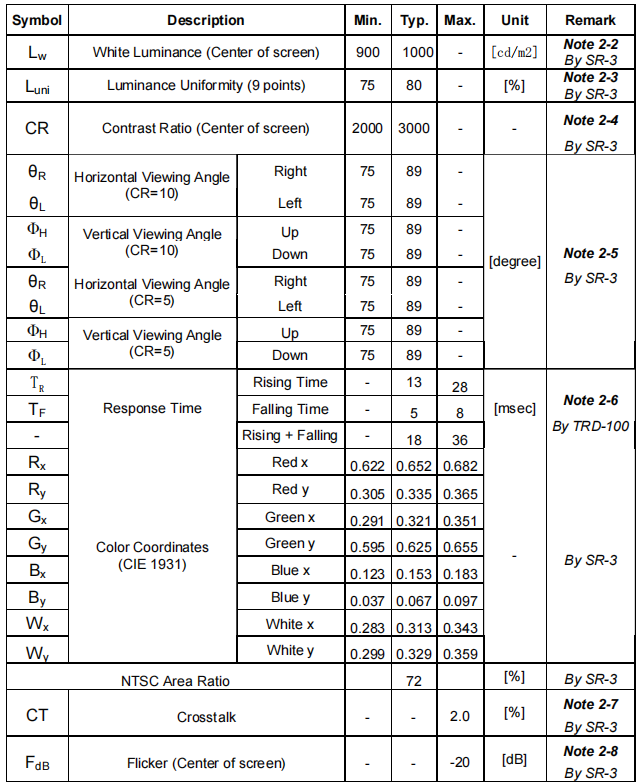

4. Optical Specifications
