Capacitive Touch Display Expert
19.5 Inch Ultra Wide TFT LCD Display Module 1920×540 with LVDS Interface
Detail Information
JuTouch 19.5 inch TFT LCD Display Module features a 1920×540 ultra-wide resolution, VA display technology, and 500 cd/m² brightness, delivering clear and stable images for industrial applications. Designed with Dual Channel LVDS interface, Anti-Glare surface treatment, and wide viewing angles, this LCD module is ideal for HMI systems, industrial control equipment, smart terminals, and customized display solutions.

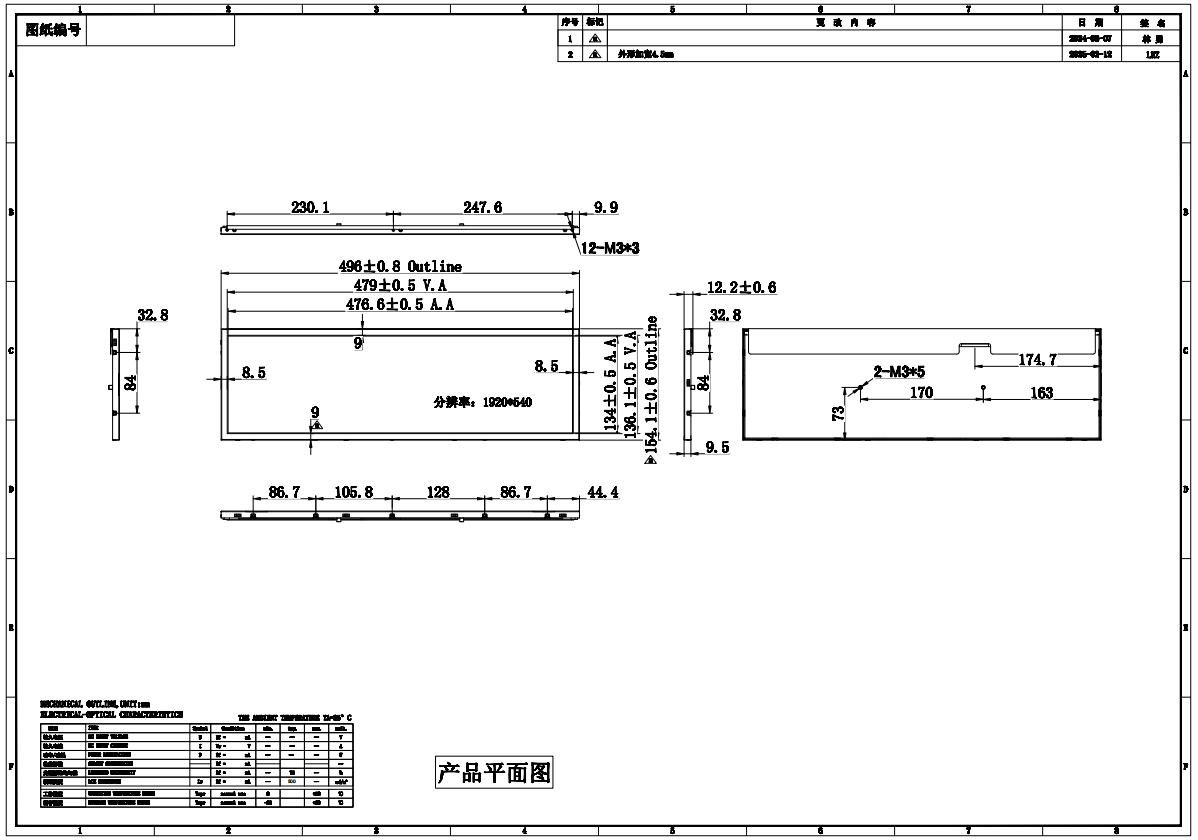

1. Outline drawing

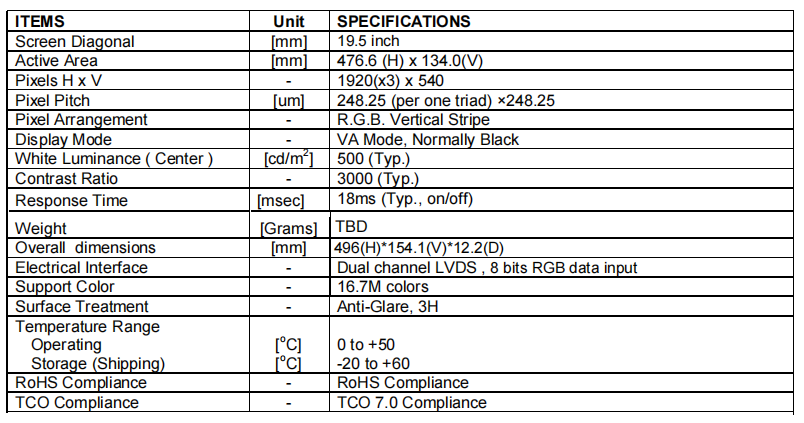

2.General Specifications

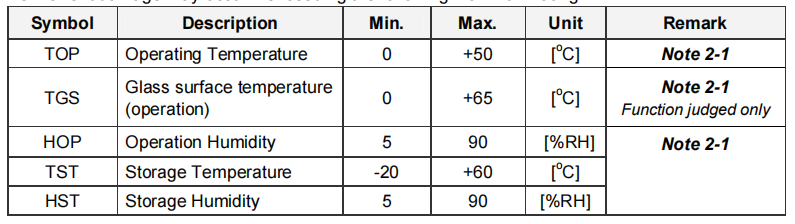

3.Operation Specifications

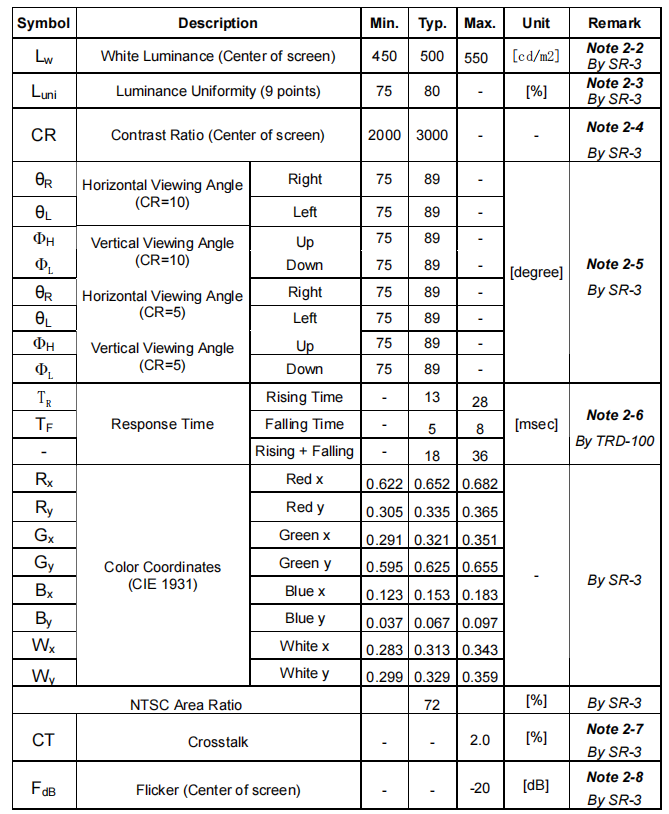

4. Optical Specifications
