19.6-inch FHD High-Brightness TFT-LCD Display Module (LVDS Interface, 1000 nits)
Detail Information
The JT196FHI30RSL01 is a 19.6-inch color active matrix TFT-LCD module utilizing amorphous silicon TFTs as active switching devices. It features a Full HD (1920 x 600) ultra-wide resolution and an exceptional brightness of 1000 cd/m², making it ideal for industrial automation, digital signage, and transportation applications where outdoor readability or high ambient light is a concern.
Equipped with an LVDS interface (2-pixel/clock), this module supports both landscape and portrait orientations and renders 16.7 million colors. It incorporates an edge-type LED backlight with a long lifespan, delivering high contrast and low reflection. Engineered for rugged environments, it operates reliably within a wide temperature range of -20°C to 70°C and complies with RoHS and Halogen-Free environmental standards.

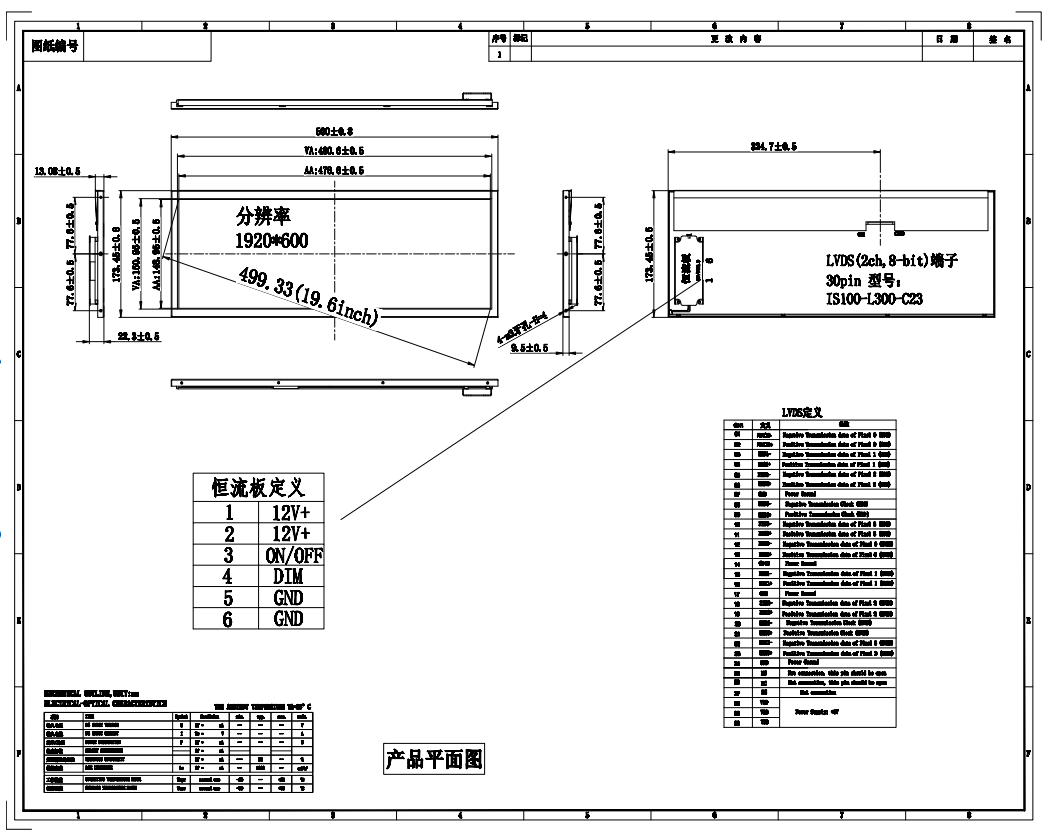

1. Outline drawing

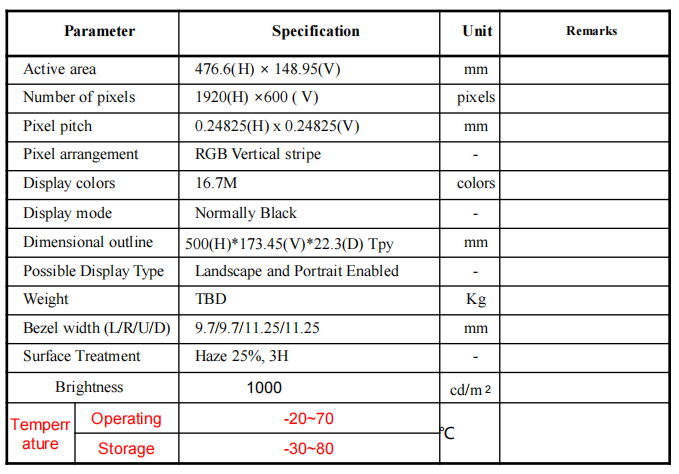

2.General Specifications

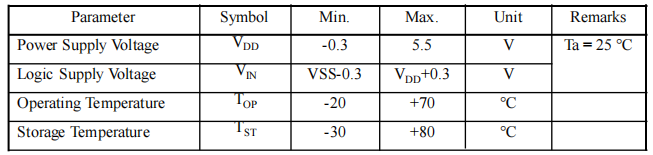

3.Operation Specifications

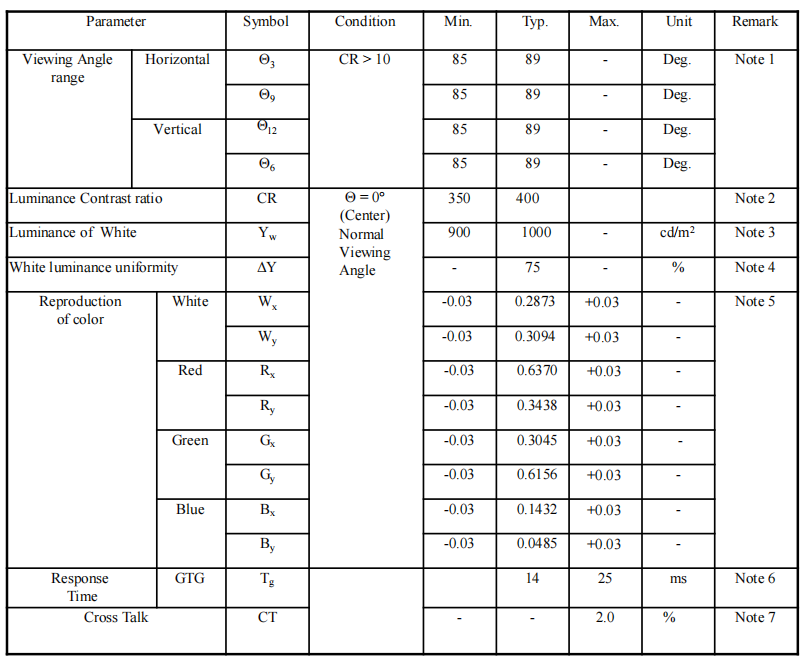

4. Optical Specifications
