21.9-inch Full HD Bar-Type TFT LCD Module (1920×712)
Detail Information
A 21.9-inch TFT Liquid Crystal Display module cell with driver ICs and a 30-pin 2-channel LVDS circuit board. Supports 1920×712 Full HD resolution and displays up to 16.7 million colors. Features high brightness of 1000 cd/m², 3000:1 contrast ratio, and 10/6ms (Tr/Td) response time. Backlight unit is not built in. Suitable for ultra-wide bar-type digital signage and information display applications.

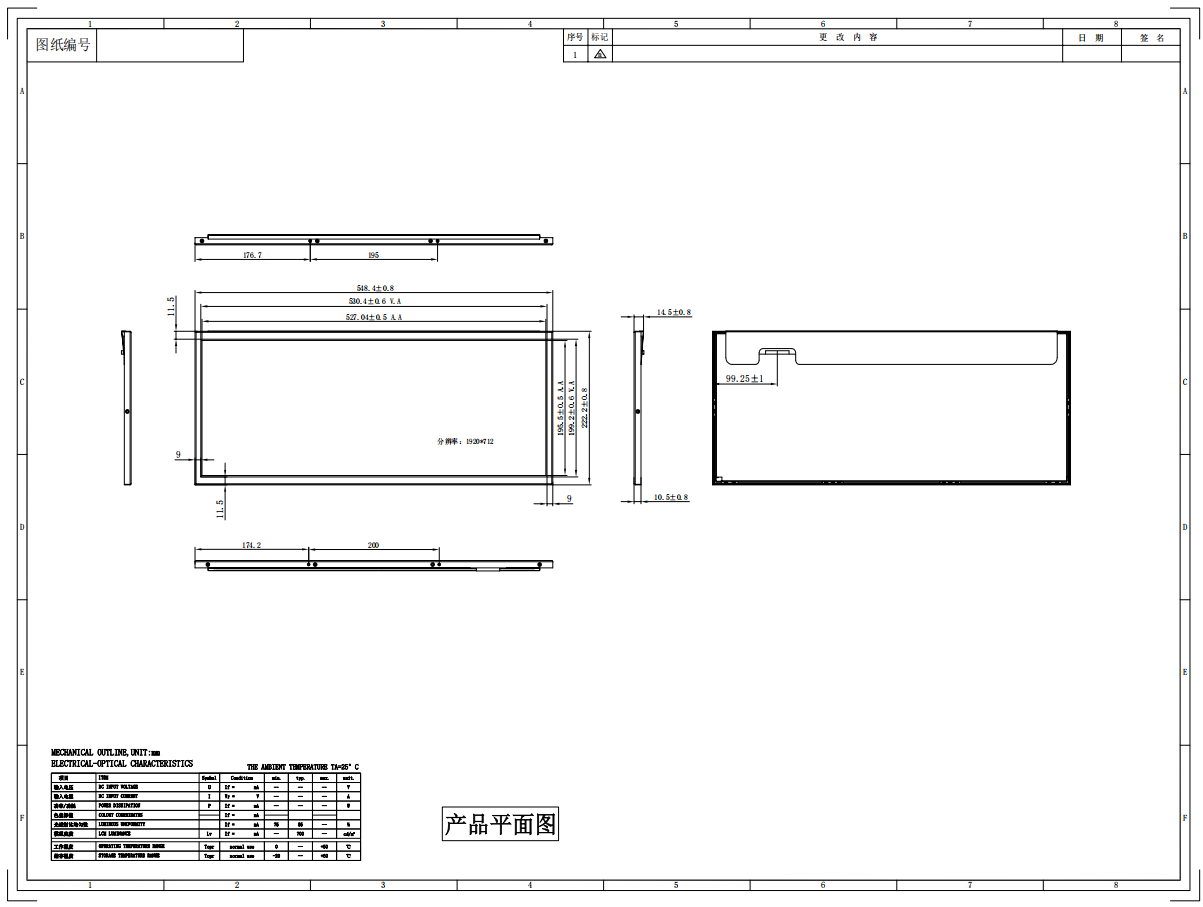

1. Outline drawing

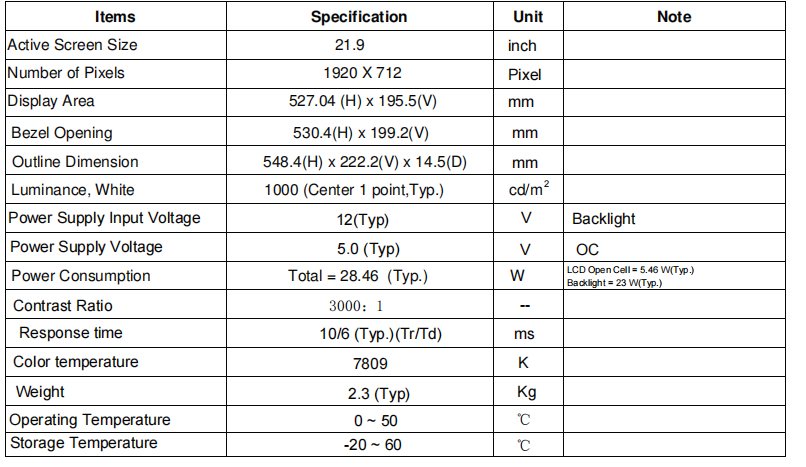

2.General Specifications

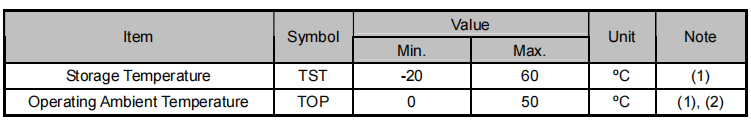

3.Operation Specifications

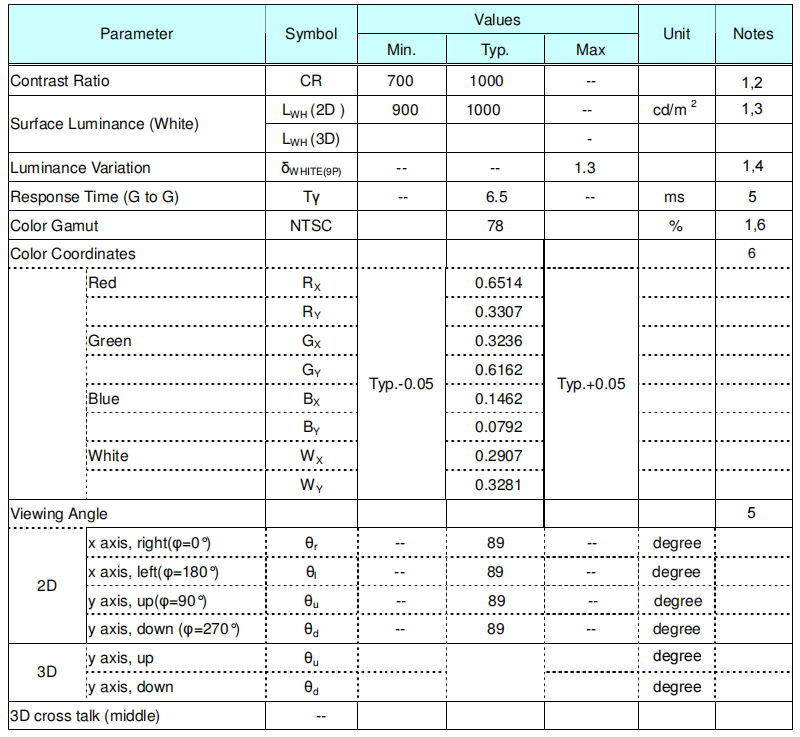

4. Optical Specifications
