23.9-inch FHD Bar-Type a-Si TFT-LCD Module (1920×360)
Detail Information
A 23.9-inch FHD color a-Si TFT-LCD module supporting 1920×360 resolution with 16.7M colors (RGB 8-bit). Uses W-LED as light source with 2-channel LVDS interface. Delivers 700 cd/m² brightness, 3000:1 contrast ratio, and 20ms (G to G) response time. Does not contain a backlight driver. Ideal for retail shelf-edge displays and narrow-format digital signage.

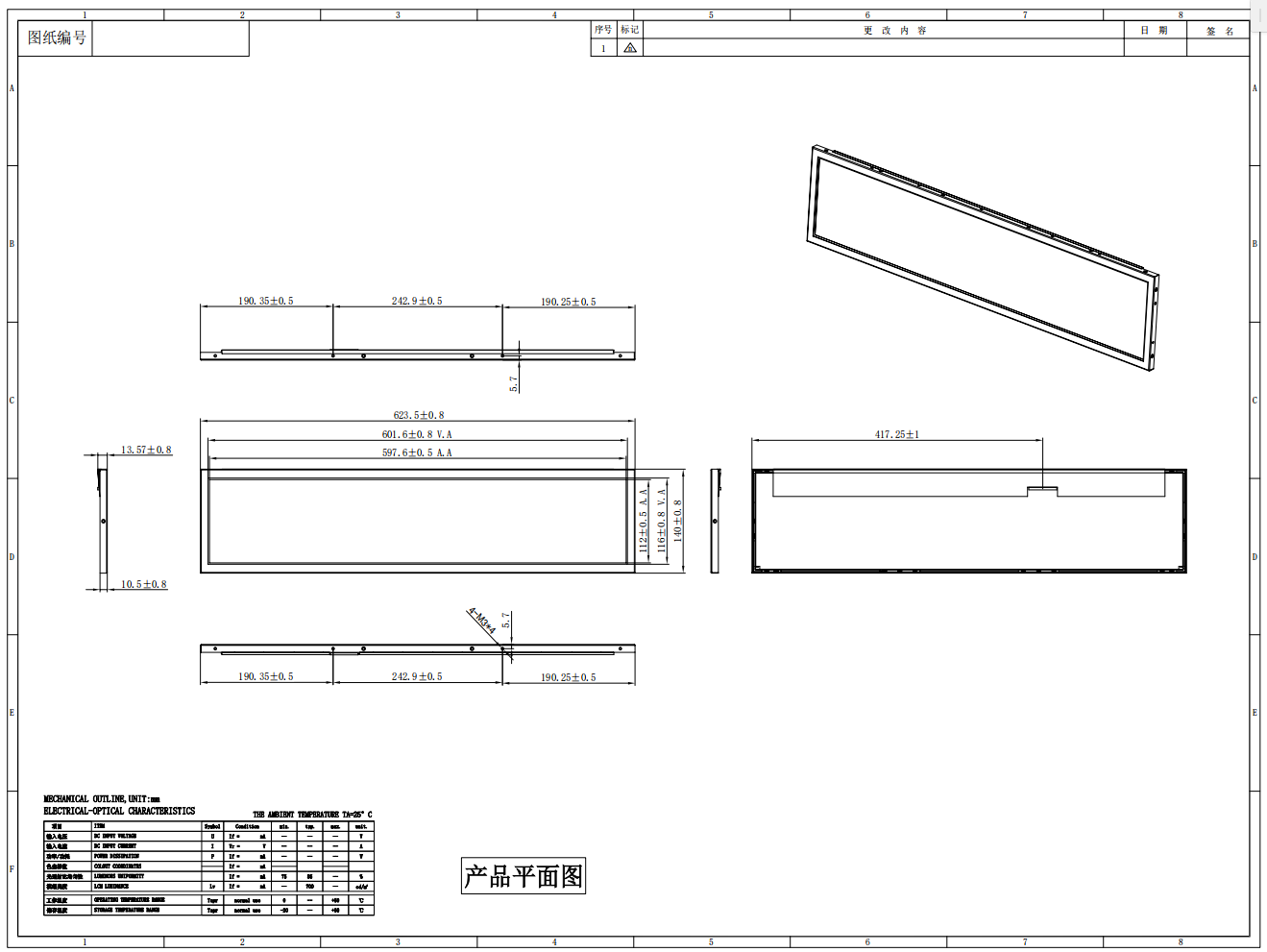

1. Outline drawing

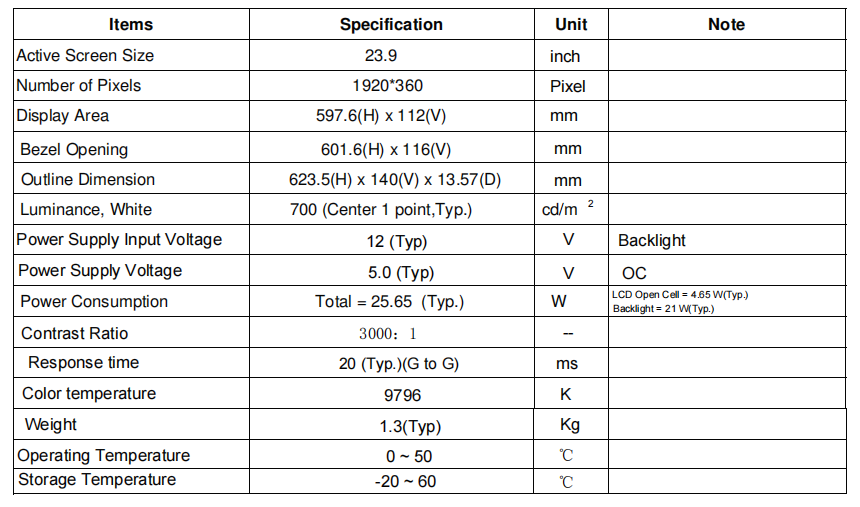

2.General Specifications

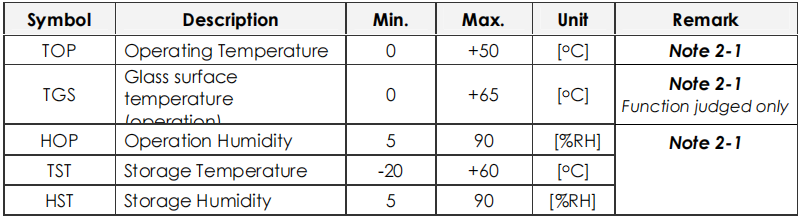

3.Operation Specifications

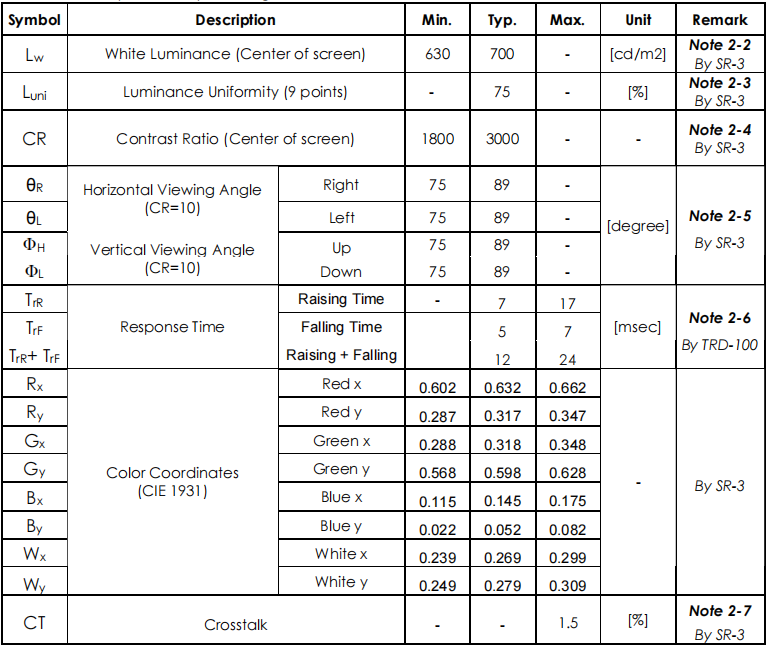

4. Optical Specifications
