24.4-inch FHD Bar-Type a-Si TFT-LCD Module (1920×540)
Detail Information
A 24.4-inch FHD color a-Si TFT-LCD module supporting 1920×540 resolution with 16.7M colors (RGB 8-bit). Equipped with W-LED light source and 2-channel LVDS interface. Provides 300 cd/m² brightness, 3000:1 contrast ratio, and 20ms (G to G) response time. Backlight driver not included. Suitable for transportation information displays and embedded bar-type applications.

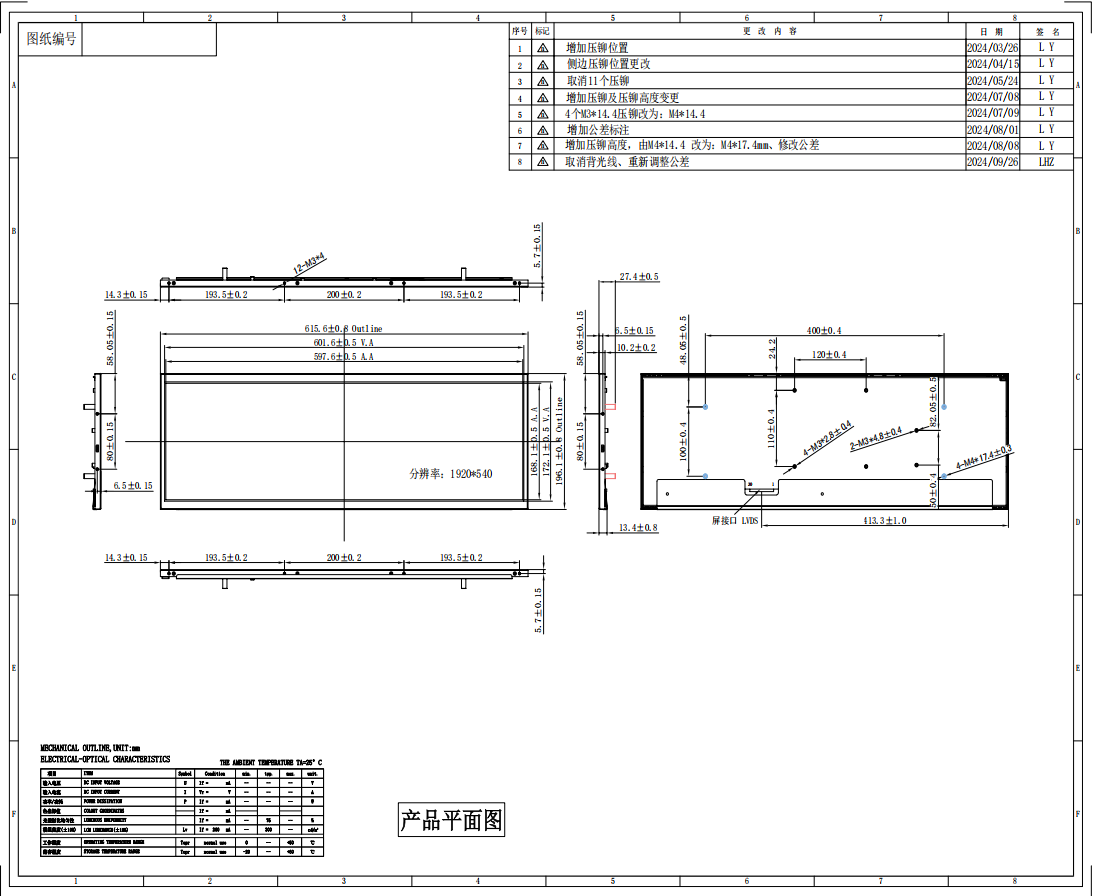

1. Outline drawing

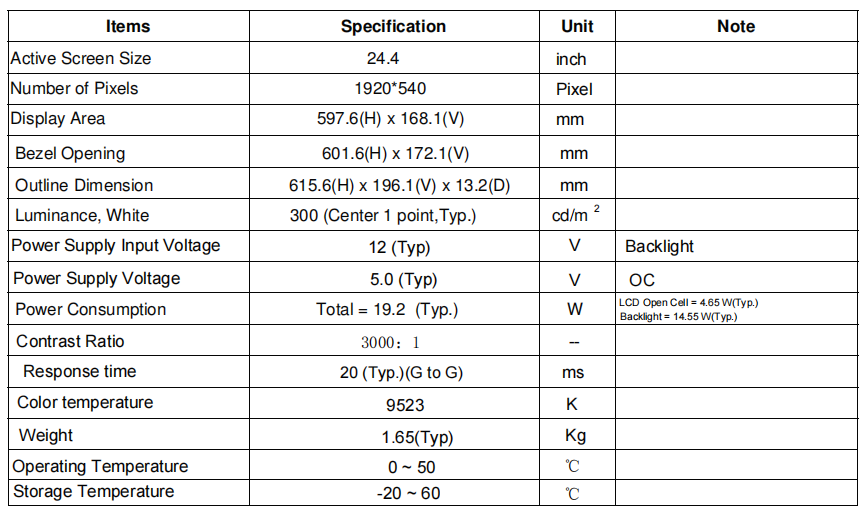

2.General Specifications

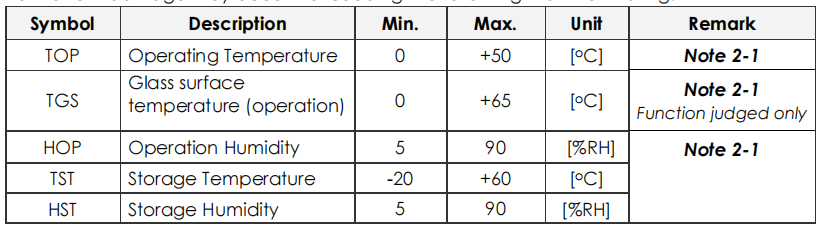

3.Operation Specifications

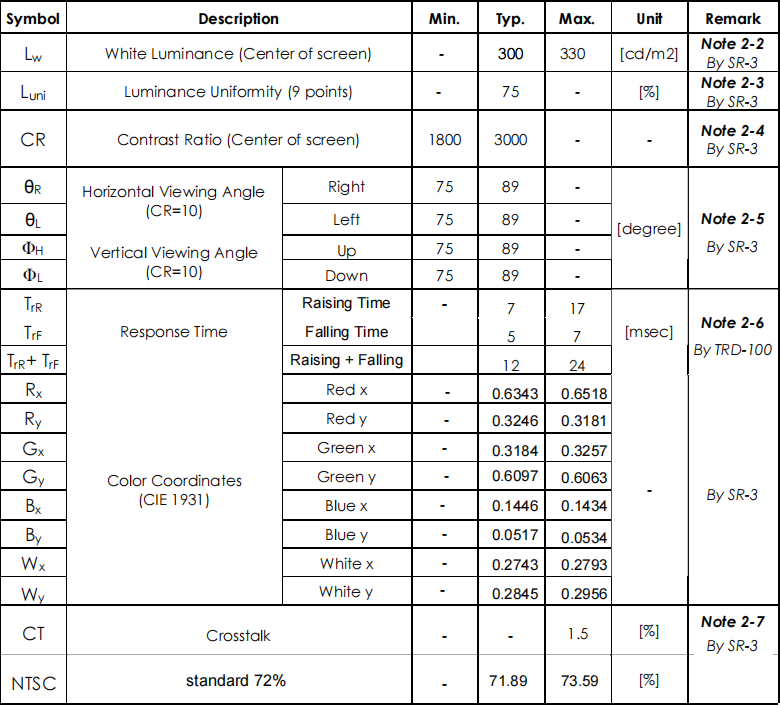

4. Optical Specifications
