24.6-inch FHD Bar-Type a-Si TFT-LCD Module (1920×578)
Detail Information
A 24.6-inch FHD color a-Si TFT-LCD module supporting 1920×578 resolution with 16.7M colors (RGB 8-bit). Features W-LED light source and 2-channel LVDS interface. Delivers 700 cd/m² brightness, 3000:1 contrast ratio, and 20ms (G to G) response time. Backlight driver not included. Well-suited for high-brightness bar-type digital signage and public information displays.

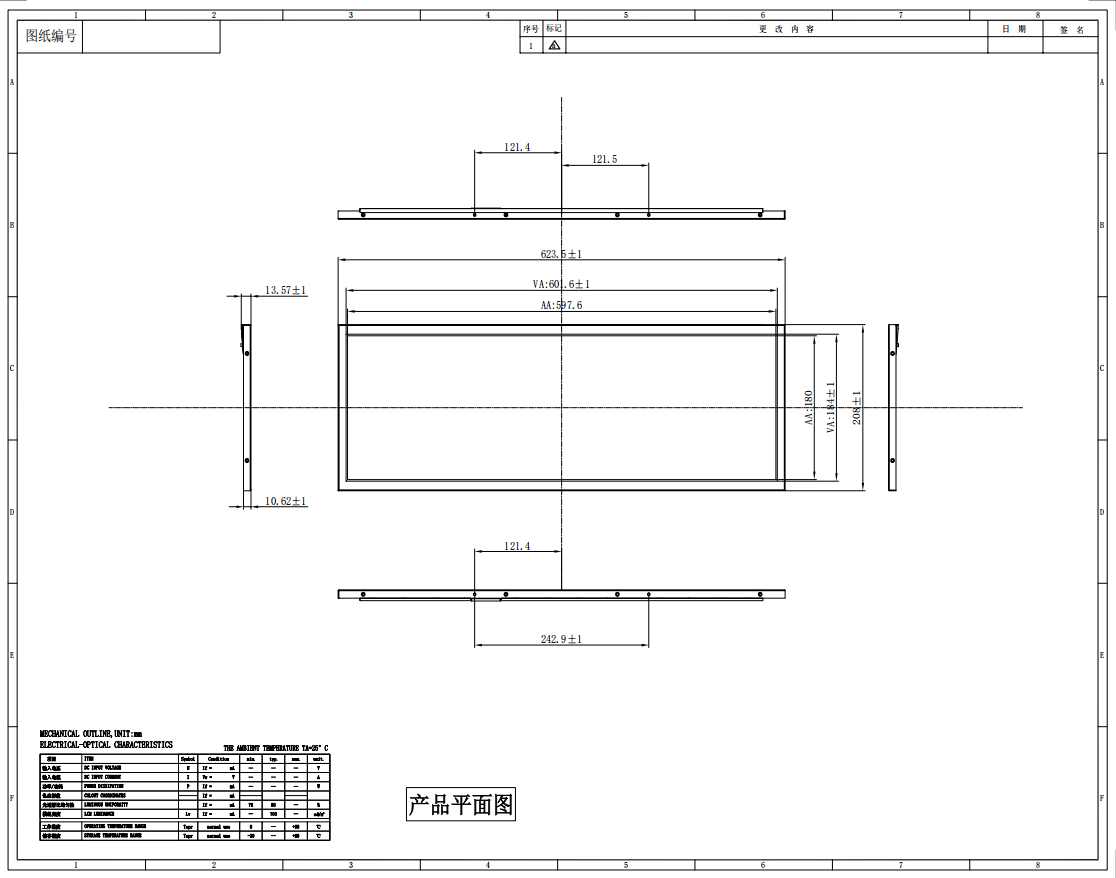

1. Outline drawing

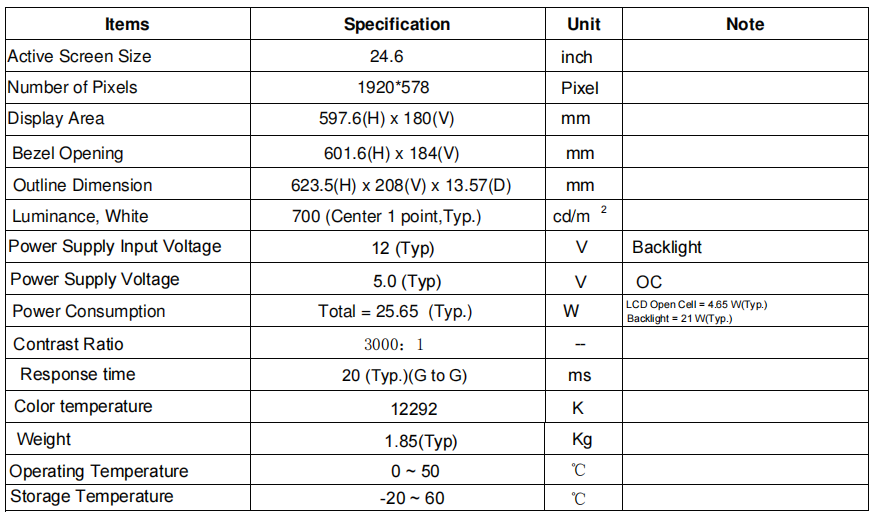

2.General Specifications

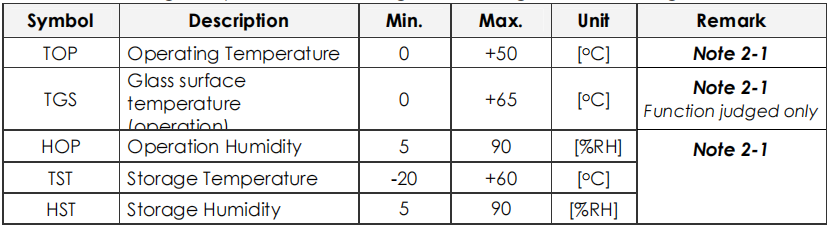

3.Operation Specifications

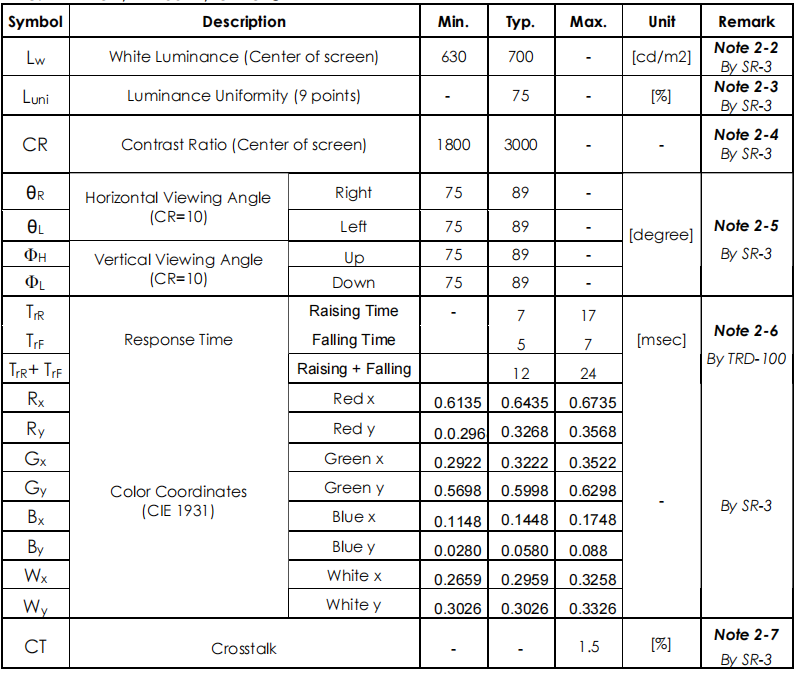

4. Optical Specifications
