27.5-inch Ultra-Wide Bar-Type TFT-LCD SKD Open Cell (1920×136)
Detail Information
A 27.5-inch color TFT-LCD SKD model open cell with a-Si TFT active matrix, supporting 1920×136 resolution and 8-bit 2-channel LVDS interface for 16.7M color display. Features 700 cd/m² brightness, normally black display mode, and anti-glare 3H surface treatment. Designed for ultra-narrow bar-type display applications such as shelf-edge labels and ticker displays.

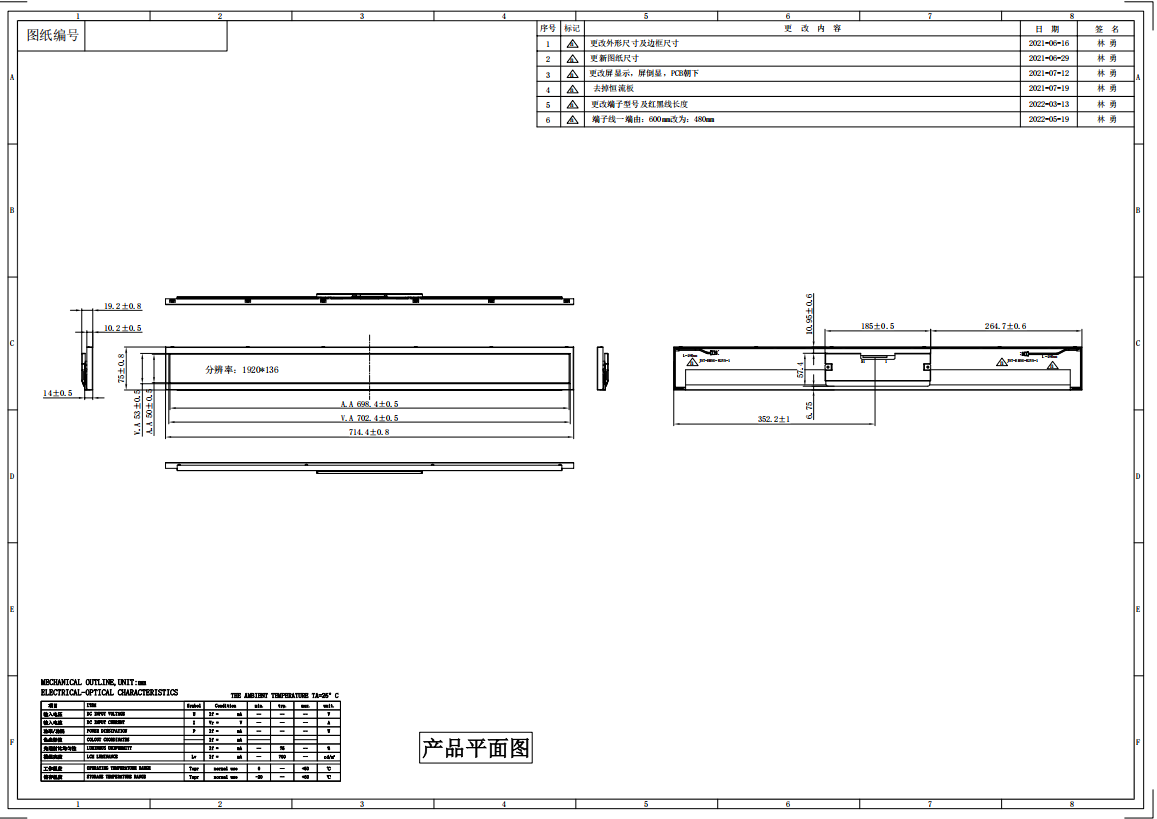

1. Outline drawing

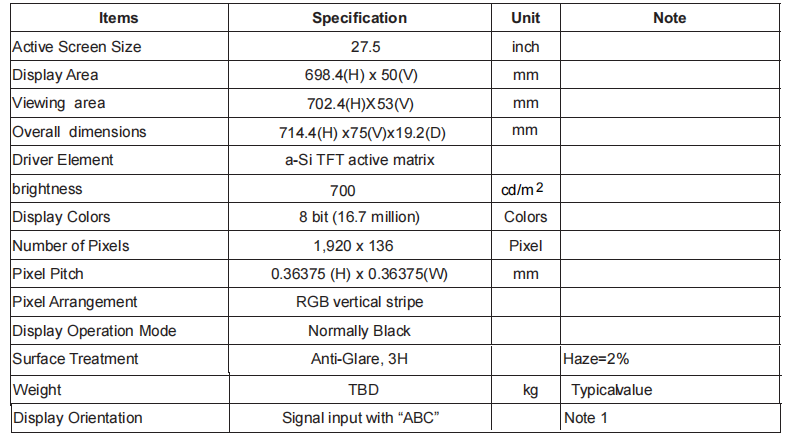

2.General Specifications

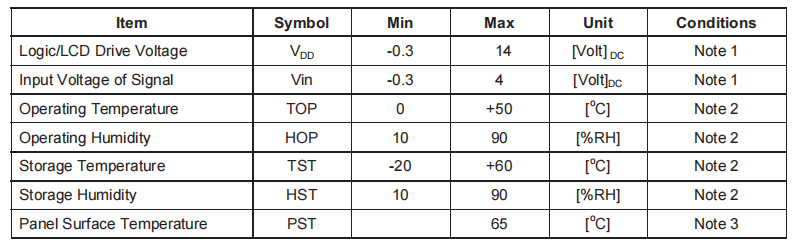

3.Operation Specifications

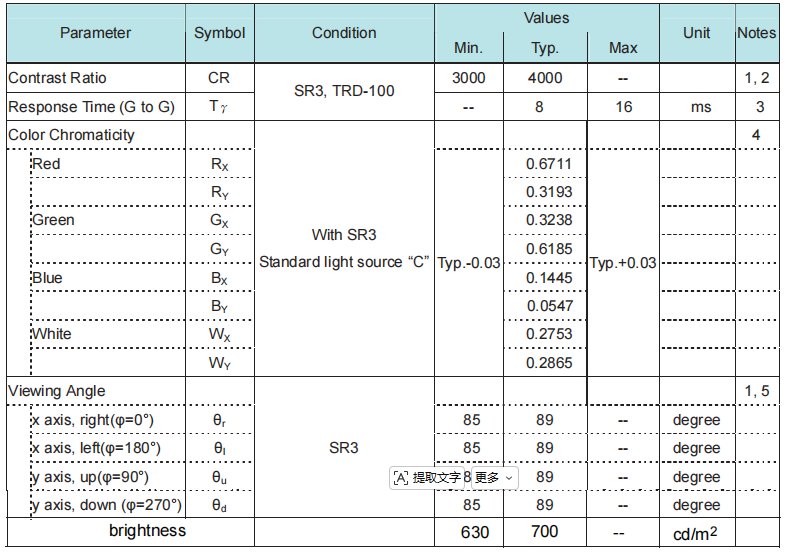

4. Optical Specifications
