28.4-inch Bar-Type TFT-LCD SKD Open Cell (1920×511)
Detail Information
A 28.4-inch color TFT-LCD SKD model open cell with a-Si TFT active matrix, supporting 1920×511 resolution and 8-bit 2-channel LVDS interface for 16.7M color display. Features 700 cd/m² brightness, normally black display mode, and anti-glare 3H surface treatment. Ideal for medium-sized bar-type digital signage and public information display applications.

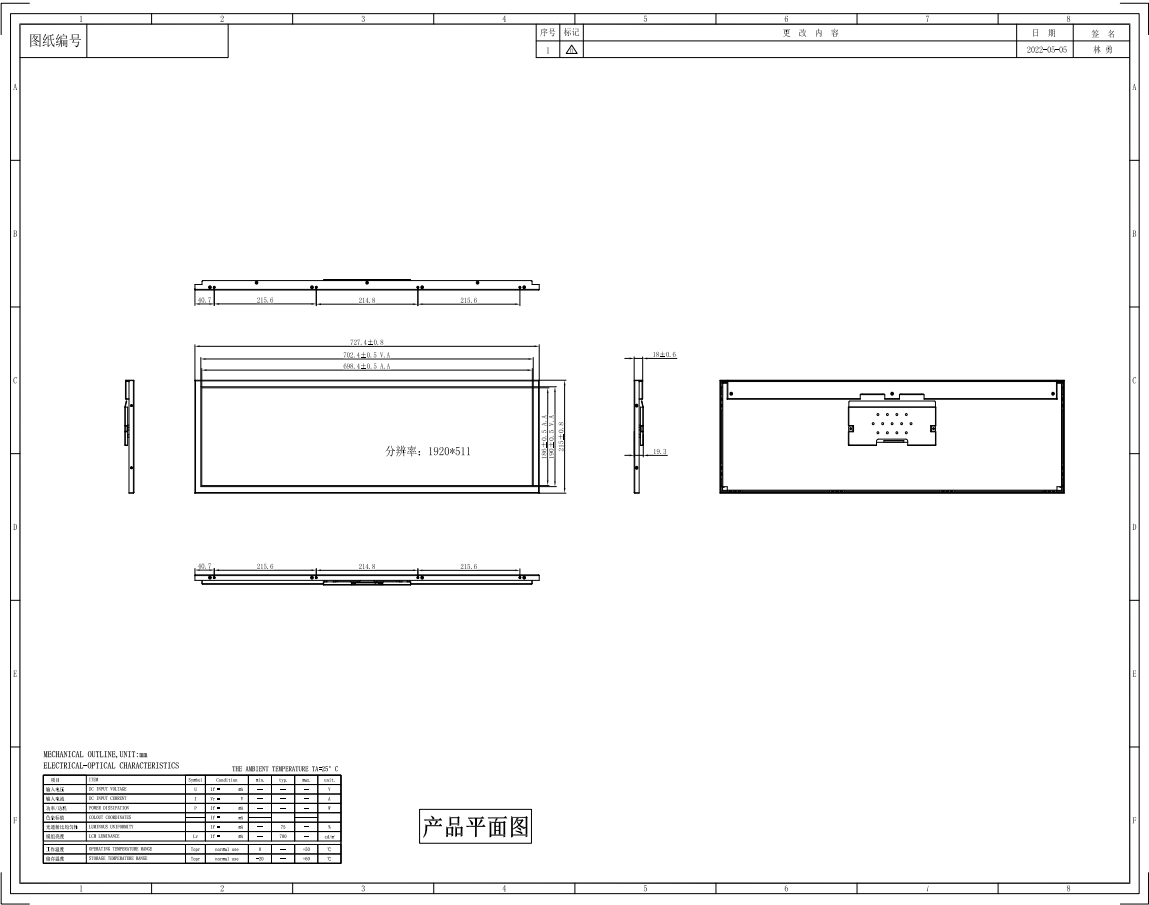

1. Outline drawing

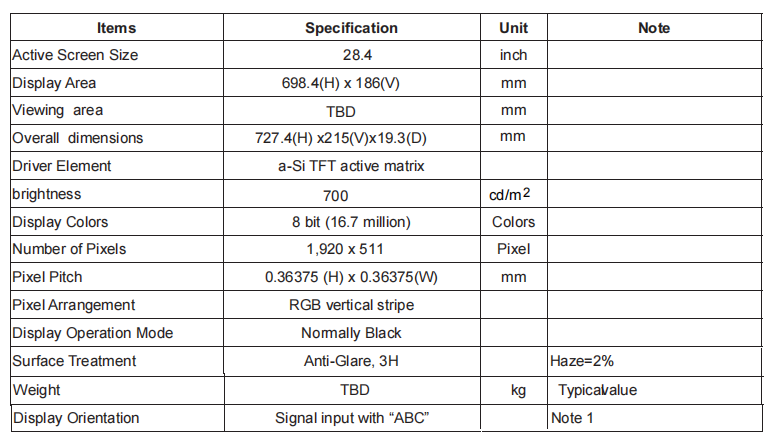

2.General Specifications

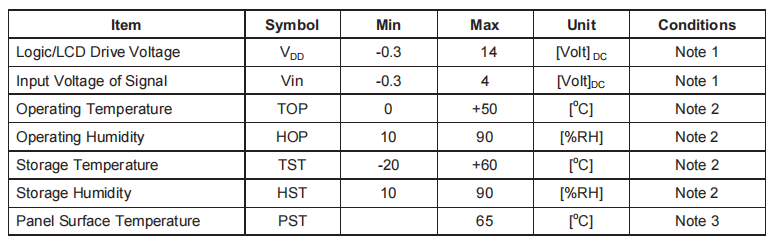

3.Operation Specifications

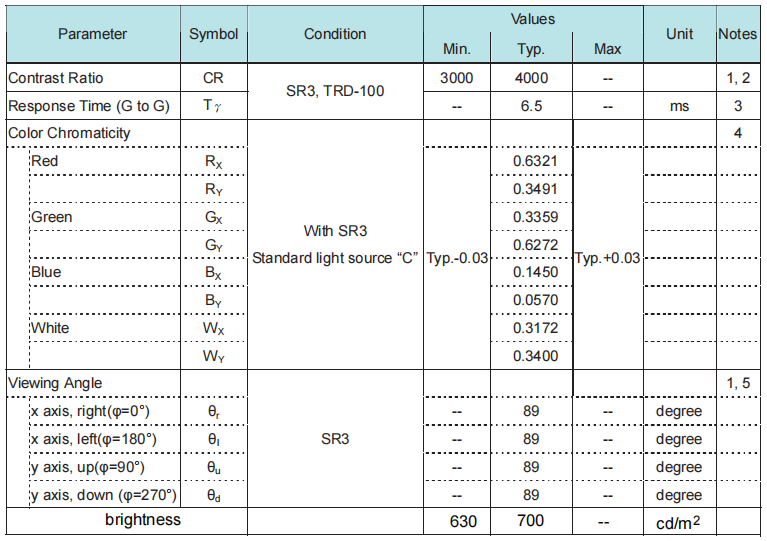

4. Optical Specifications
