28.6-inch Bar-Type TFT-LCD SKD Module (1920×540)
Detail Information
A 28.6-inch color TFT-LCD SKD module with a-Si TFT active matrix, supporting 1920×540 resolution and 8-bit 2-channel LVDS interface for 16.7M color display. Delivers 500 cd/m² brightness, 4000:1 contrast ratio, and 6.5ms (G to G) fast response time. Suitable for transportation hub information displays and commercial bar-type signage.

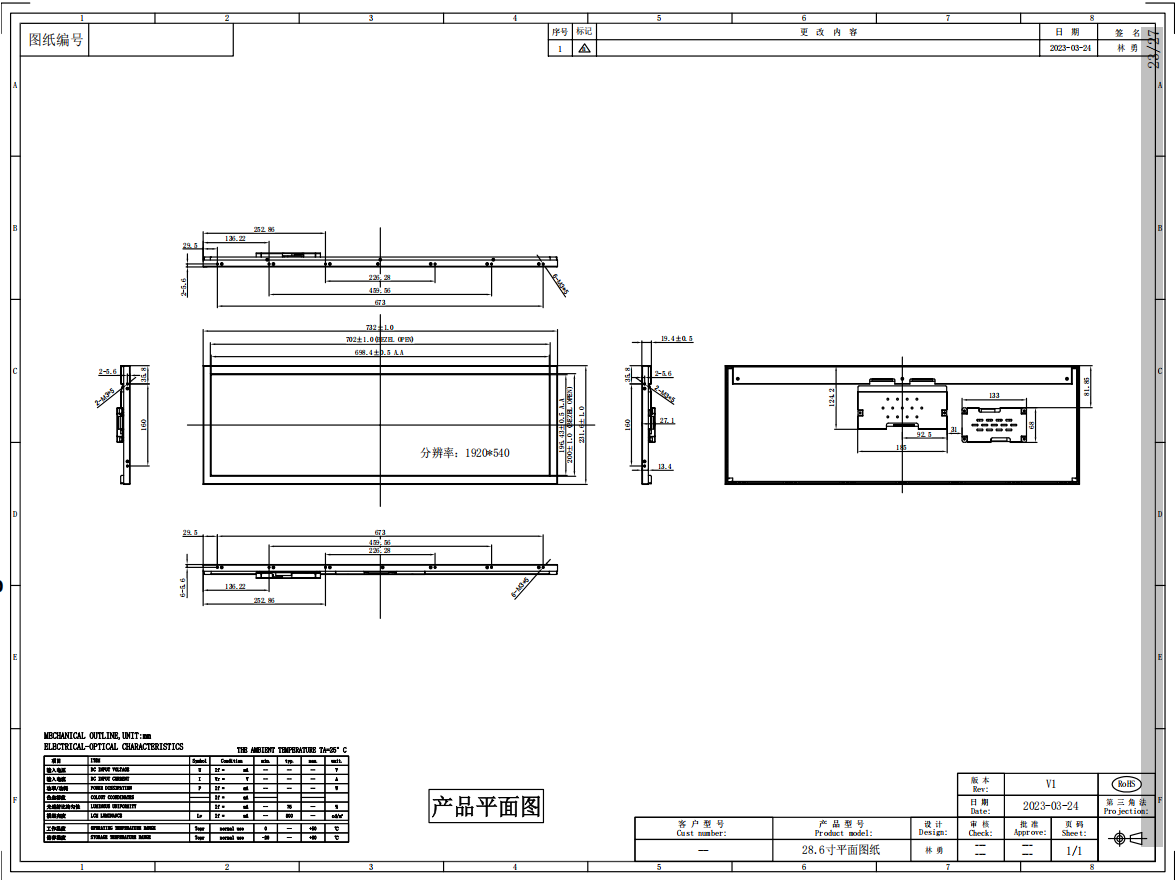

1. Outline drawing

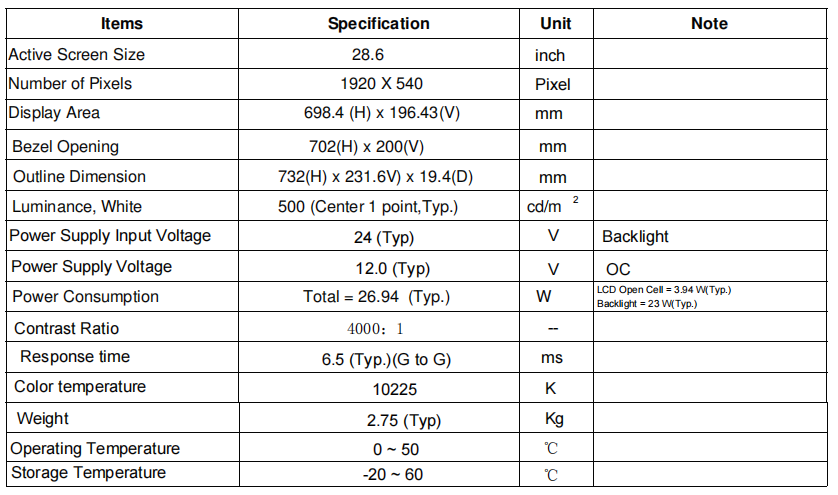

2.General Specifications

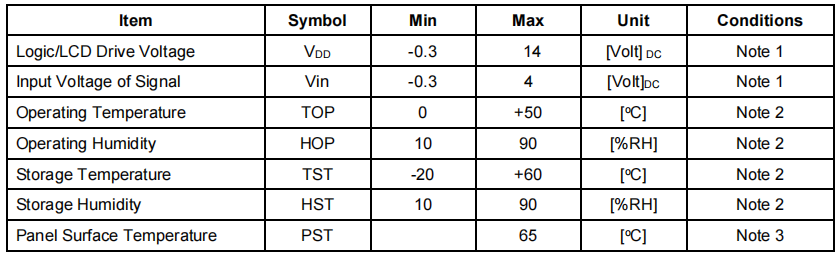

3.Operation Specifications

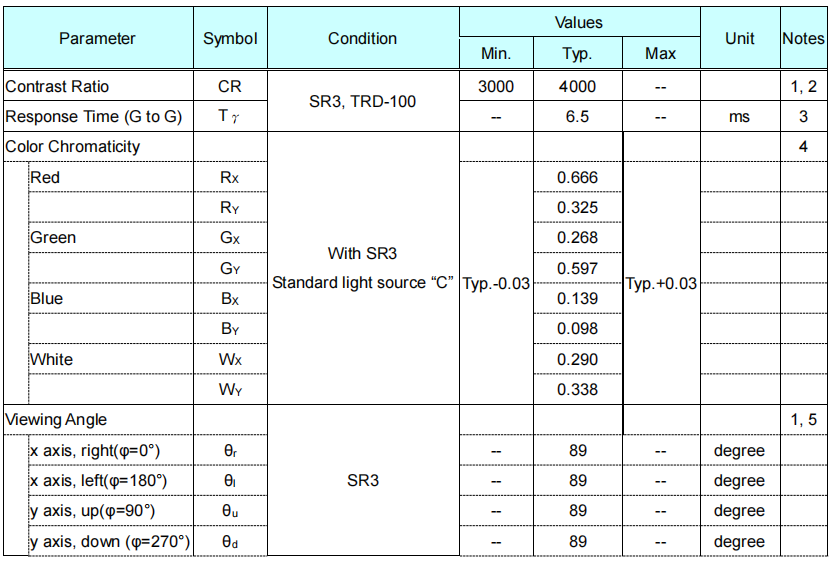

4. Optical Specifications
