13.7-inch 1920X279 Bar-type TFT LCD display

Share
Categories	TFT LCD
Brand	JuTouch
Model	JT137FHI40R5L01

Contact Now

Detail Information

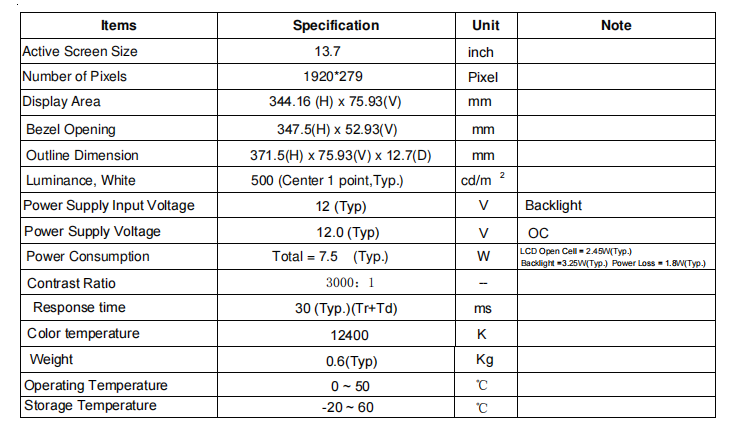

The JT137FHI40R5L01 is a 13.7‑inch color active‑matrix TFT‑LCD open cell built with a‑Si TFT technology. It features a FHD resolution of 1920×279 pixels (vertical stripe RGB arrangement) and supports 16.7M colors through 8‑bit color depth. The module employs a 2‑channel LVDS interface with DE‑only mode and operates in the normally black transmissive mode.

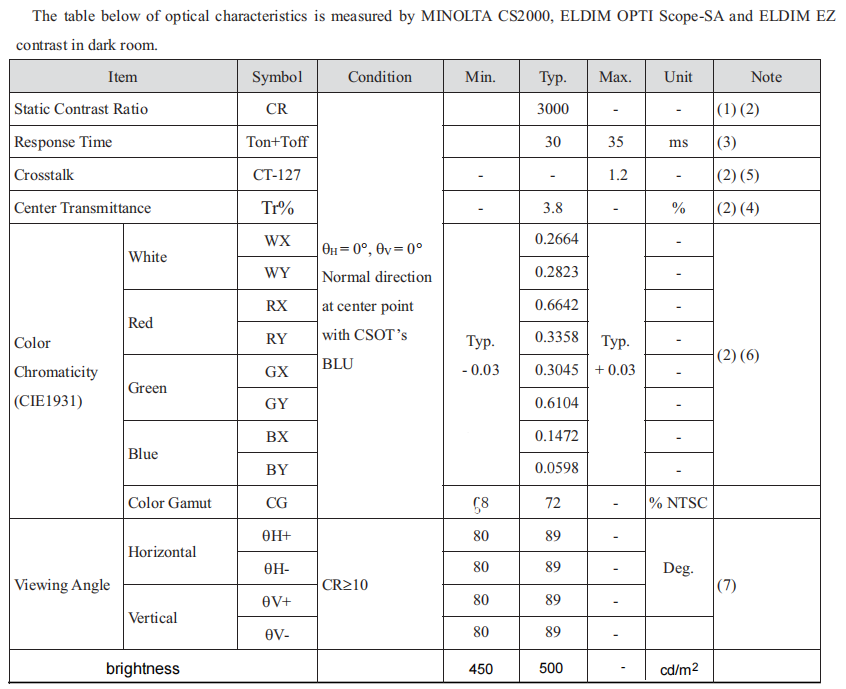

Key performance highlights include a very high static contrast ratio of 3000:1, ultra‑wide viewing angles of 178° (both horizontal and vertical, CR≥10), and a typical luminance of 500 cd/m² with CSOT’s backlight unit. The typical response time is 30 ms, and the color gamut reaches 72% NTSC.

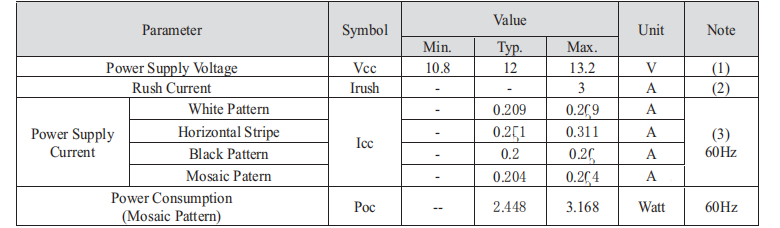

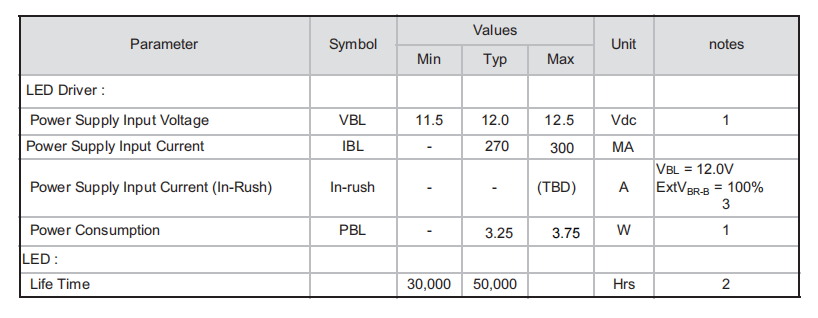

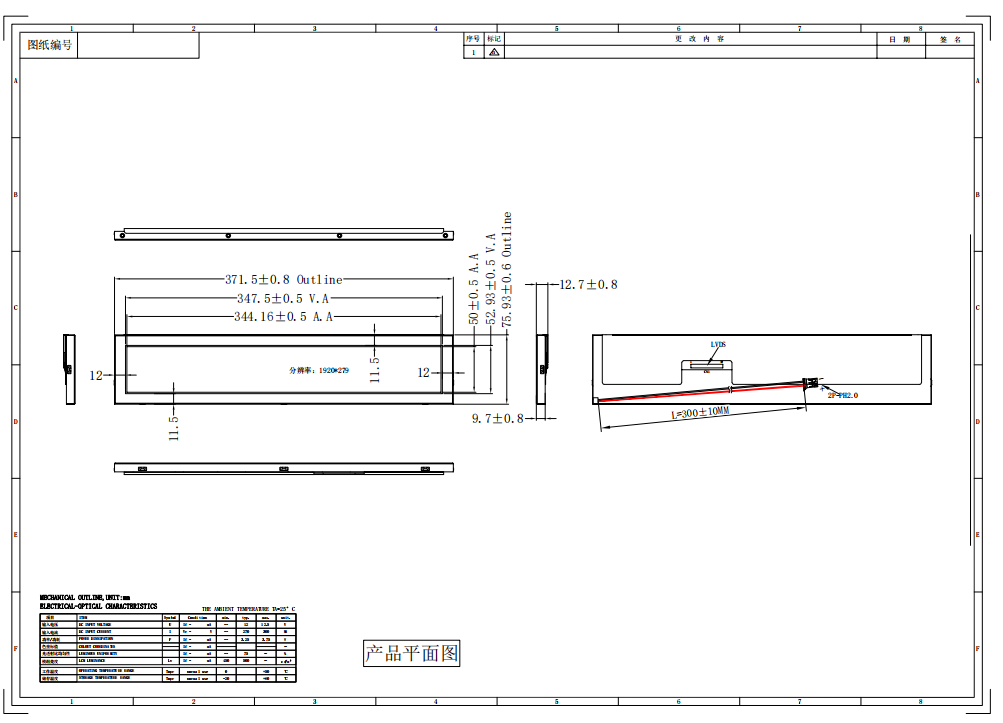

Designed for public information display applications, the open cell offers excellent image quality with high color saturation and depth. It complies with RoHS standards. The module operates at 12V typical supply voltage, with total power consumption around 7.5W (including backlight). Operating temperature ranges from 0°C to 50°C, and storage from -20°C to 60°C. Mechanical outline is 371.5 × 75.93 × 12.7 mm, and weight is approximately 0.6 kg.

DOWNLOAD SPECS
